Benchtop LCR meter/instruments Product ID: LCR-2100 100KHz , LCR-2200 200KHz

Adopting the new latest technology & high sophisticate circuit design and concentrating
the essence of LCR test, TECPEL 2000 series is a new generation compact LCR meter of
low cost and high performance. Instead of using traditional mechanical power switch,
it adopts software control one. The basic accuracy of 0.05% and good test stability
can compare favourably with those high-end models.

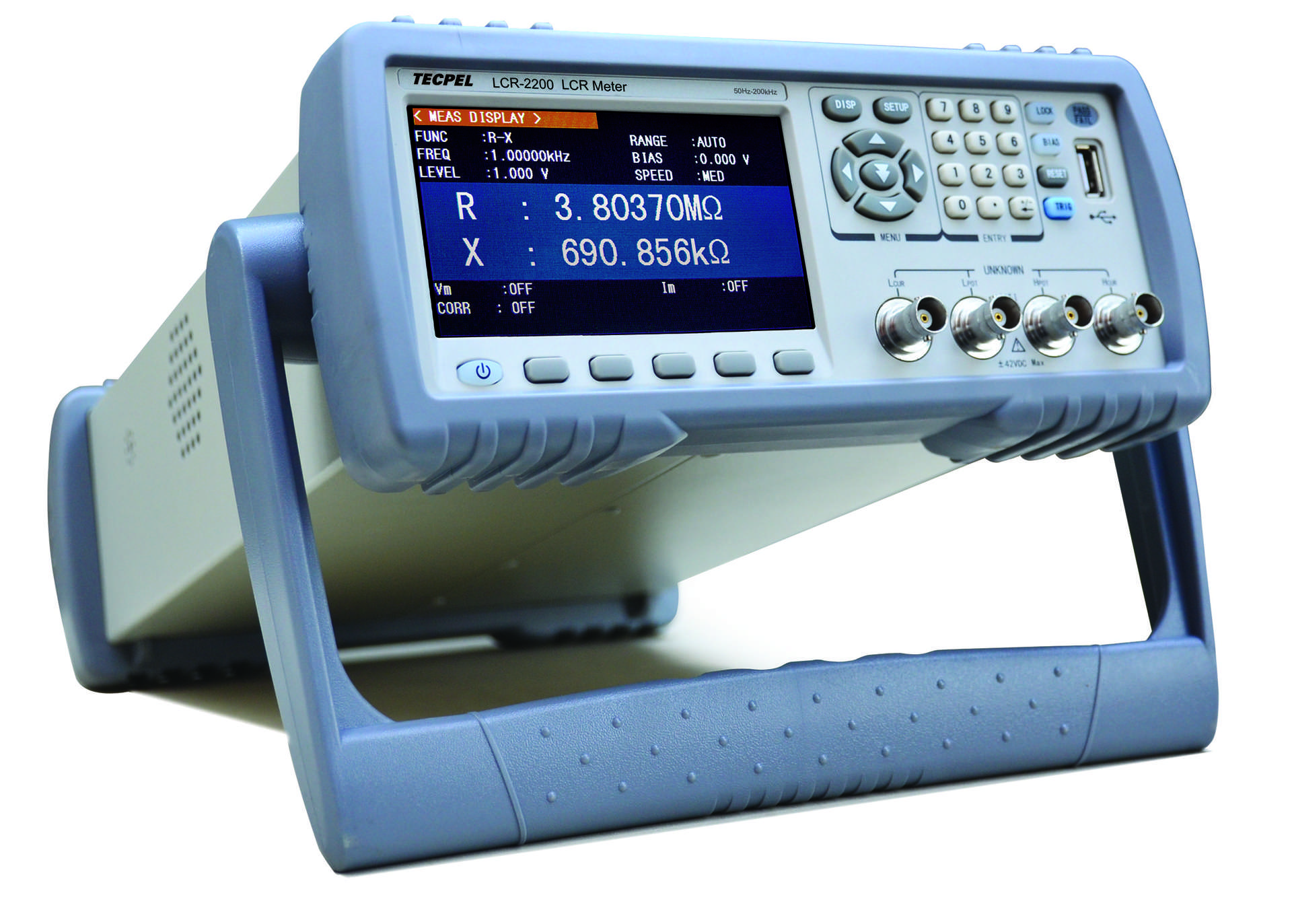

Being equipped with 4.3 inch TFT LCD Display and brand new interface system, TECPEL 2000 series
LCR meters possess stylish outlook and easy operation.Also, being provided with various interfaces
and good compatibility with SCPI commands, TECPL LCR-2000 series LCR meters are convenient for
constituting all kinds of test system and satisfy various kinds of impedance demands for Quality
Inspection, production and R&D scientific testing and research. Your best choice !

Certificate:CE
Model LCR-2100/2200 50Hz-100kHz, 34 points / 20Hz-200kHz, 15025 points
Basic measurement accuracy (See details in technical specification)
LCRZ 0.05% DCR, turn ratio 0.1%
Calibration condition
Warm up time:≥ 30 s Environment temperature:23±5ºC Signal voltage:0.3Vrms – 1Vrms Zero clearing:after OPEN, SHORT Testing cable length:0 m Test signal frequency LCR-2100/2200 50Hz-100kHz , 34points / 20Hz-200kHz, 15025 points Signal source output impedance Selectable 30Ω, 100Ω, ±1% @1kHz
AC test signal level
Normal
10mV~2Vrms (LCR-2100:50mV~1Vrms)
Minimum resolution:10mV, Accuracy:10% x setting voltage+2mV
100μA~20mArms (LCR-2100:500μA~10mA rms)
Minimum resolution:0.1mA
Constant level
20mV~1Vrms (LCR-2100:100mV~500mVrms)
Minimum resolution:10mV Accuracy:10% x setting voltage +2mV 200μA~10mArms Minimum resolution:0.1mA
TECPEL CO.,LTD. TEL : +886-2218-3111 https://www.tecpel.com


(LCR-2100:1mA~5mA rms)
DC bias voltage source (LCR-2100 with no bias voltage source)
0V~ ± 5V Minimum resolution:0.5mV, Accuracy:1% x setting voltage +5mV 0mA~± 50mA Minimum resolution:0.5μA Transformer test parameters Turn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short LCR test parameters |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR DCR display range 0.00001 Ω-999.999 MΩ DCR polarity configuration FIX, ALT Turn ratio display range 1:0.001-1000:1
LCR parameters display range
|Z|, R, X 0.00001Ω ~ 99.9999MΩ |Y|, G, B 0.00001μs ~ 99.9999s C 0.00001pF ~ 9.99999F L 0.00001μH ~ 99.9999kH D 0.00001 ~ 9.99999 Q 0.00001 ~ 99999.9 θ(DEG) -179.999º ~ 179.999º θ(RAD) -3.14159 ~ 3.14159 Δ% -999.999% ~ 999.999%
Measurement time (≥10 kHz)
Fast: 75 meas/sec(13ms), Medium:11 meas/sec(90 ms) Slow:2.7meas/sec(370 ms) Equivalent circuit Serial, Parallel Range mode Auto, Hold Trigger mode Internal, Manual, External, Bus Average time 1-255 Zero clearing Open, Short, Load Arithmetical operation Direct reading, ΔABS, Δ% Delay time setting 0 -- 60.000s, 1ms steps
Comparator function
10 bins, BIN1~BIN9, NG, AUX Bin count function PASS, FAIL front panel or scan fixture LED display
Memory
100 groups of LCRZ instrument setting files 201 test result
Interface
Control interface HANDLER or SCANNER Communication interface USB HOST, RS232C, RS485(option), GPIB(option) Storage interface USB DEVICE (U-disk storage or barcode scan)
Other
Dimensions 235(W)x105(H)x350(D)mm Weight 4.5 kgs
