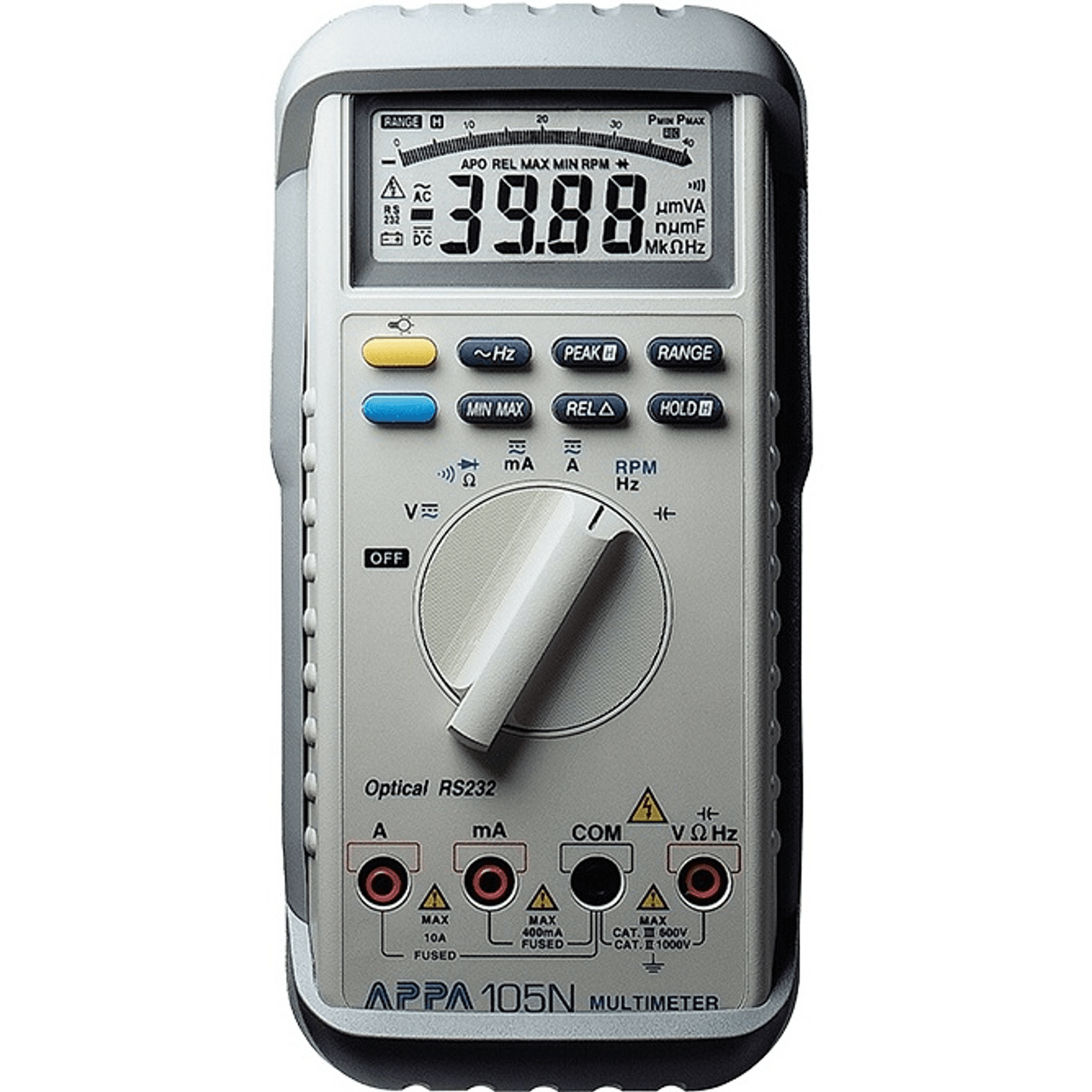

Digital Multimeter
Brand
APPA
|
Model
APPA_105N
|
🇹🇼 Taiwan
The APPA 105N offers reliable and accurate DCV and DCA measurements, equipped with an RS232 data transmission interface, supporting various measurement functions suitable for complex measurement scenarios. Key features include:
- DC voltage measurement range: 400mV~1000V
- AC voltage measurement range: 400mV~750V
- Resistance measurement range: 400Ω~40MΩ
- Current measurement range: 40mA~10A
- Capacitance measurement range: 4nF~40mF
- Frequency measurement range: 4kHz~400MHz
- RPM measurement range: 40kRPM~4000MRPM
- 4,000 counts display with a sampling rate of 2 times per second
- Waterproof design
Price
NT$ 4,500
Out of Stock
Views: 541
Description
The APPA 105N Digital Multimeter is a high-precision, easy-to-operate meter designed for a wide range of voltage and current measurements. Its LED backlight display makes operation in dark environments convenient, and the auto power-off feature helps extend battery life. Ideal for industrial and professional users, the APPA 105N provides reliable measurement results whether in laboratories, construction sites, or household appliance testing.
Specifications
- DC Voltage400mV~1000V
- AC Voltage400mV~750V
- Resistance400Ω~40MΩ
- Continuity30Ω, 2kHz
- DC Current40mA~10A
- Specification40mA~10A
- Capacitance4nF~40mF
- Frequency4kHz~400MHz
- RPM Range40kRPM~4000MRPM
- Display Counts4,000
- Sampling Rate2 /s
- Safety RatingOL or -OL
- Low Battery IndicatorSee datasheet
Features
- Auto Power Offapprox.30min auto power off
- Acquisition Modedata hold/
- Waterproof RatingYes
Attributes
- Operating Temperature0°C~50°C, ≤80%RH
- Storage Temperature-20°C~60°C
- Dimensions100 x 212 x 50mm
- Weight620g
- Safety RatingCAT III 600V / CAT II 1000V
- Power SupplyAAA 1.5V x 2 units
- AccessoriesTest leads, test clips, batteries, protective case, user manual
