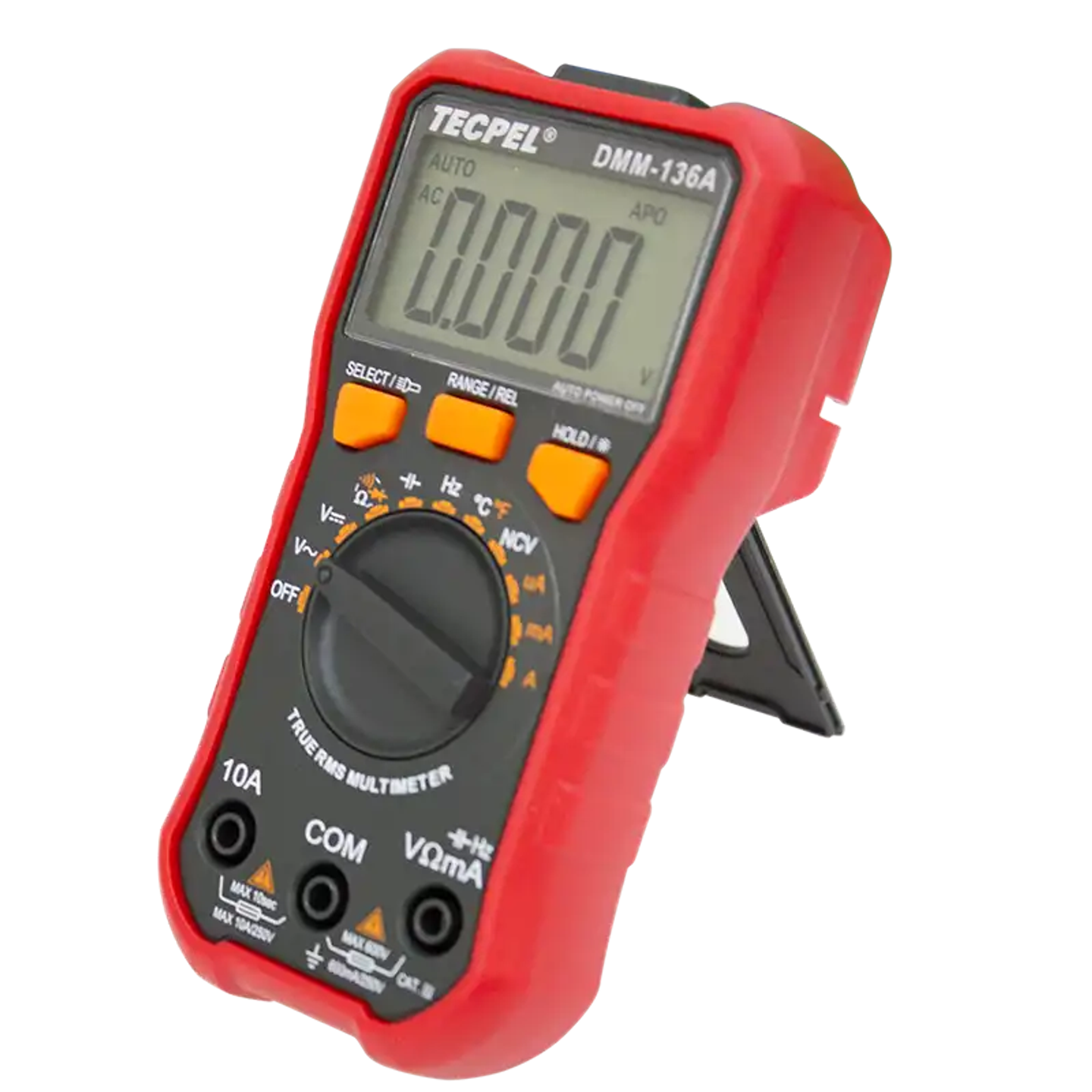

DMM-136A Digital Multimeter 5,999 Counts
Brand
TECPEL
|
Model
DMM-136A
|
🇨🇳 China
DMM-136A is a 5,999-digit multi-function meter with high stability and performance.
With a 20mm high LCD screen, the subtitles are clearer and easier to read.
DMM-136A can test DCV, ACV, DCA, ACA, resistance, capacitance, frequency, NCV, duty cycle, temperature, diode and continuity.
It Include unit symbol display, data retention, lighting function, auto range, auto power off and warning function.
This instrument adopts 8-bit microprocessor and double integral A/D conversion to achieve high resolution and precision. It is the best choice tool for laboratories, factories and personal studios.
Price
NT$ 630
Out of Stock
Views: 2
Description
DMM-136A handheld 3"5/6 digit electricity meter with complete functions、 stable performance and high accuracy. Strong anti-electromagnetic interference performance; unit symbol display, easy to read; lighting function, backlight display. True RMS, non-contact voltage detection ( NCV), relative value measurement, frequency/duty ratio and data hold function
Specifications
- Digit Display5,999 Display
- DC Voltage600mV/ 6V/ 60V/ 600V ±(0.5%+4)
- AC Voltage6V/ 60V/ 600V/ 600V ±(0.8%+6)
- DC Current600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A ±(1.0%+5)
- AC Current600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A ±(1.5%+5)
- Resistance600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ ±(0.8%+1)
- Temperature Range-40~1,000C (-40 ~ 1,832 °F) ±(1.0%+5)
- Capacitance60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF ±(3.5%+8)
- Frequency40Hz-2kHz
- Sampling Ratethree times per sec.
Features
- ContinuityWhen lower than 50Ω
- Diode Test0.001V
- Safety RatingCAT II 250V
- Duty Ratio1%~99%
- Low Battery IndicatorWhen battery voltage lower than 2.4V
- Input Impedance10MΩ
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Power SupplyDC 1.5V AA Battery X2
- Dimensions140 × 72 × 37mm
- WeightApprox. 195g (battery including)
- AccessoryTesting Lead、Battery、Temperature Sensor、Manual
