Brand
LUTRON
|
Model
DT-2259
|
🇹🇼 Taiwan
• Advanced microprocessor technology provides accurate and stable speed measurements
• Digital Optical Tachometer: Non-contact measurement range from 0.5 to 100,000 RPM
• Digital Stroboscopic Tachometer: Measurement range from 100 to 100,000 RPM with precise display
• Memory function records last, maximum, and minimum values
• High visibility LCD display for easy reading
• Durable ABS plastic housing with ergonomic design
• Portable, powered by 4 x 1.5V batteries
Out of Stock
Views: 501
Description

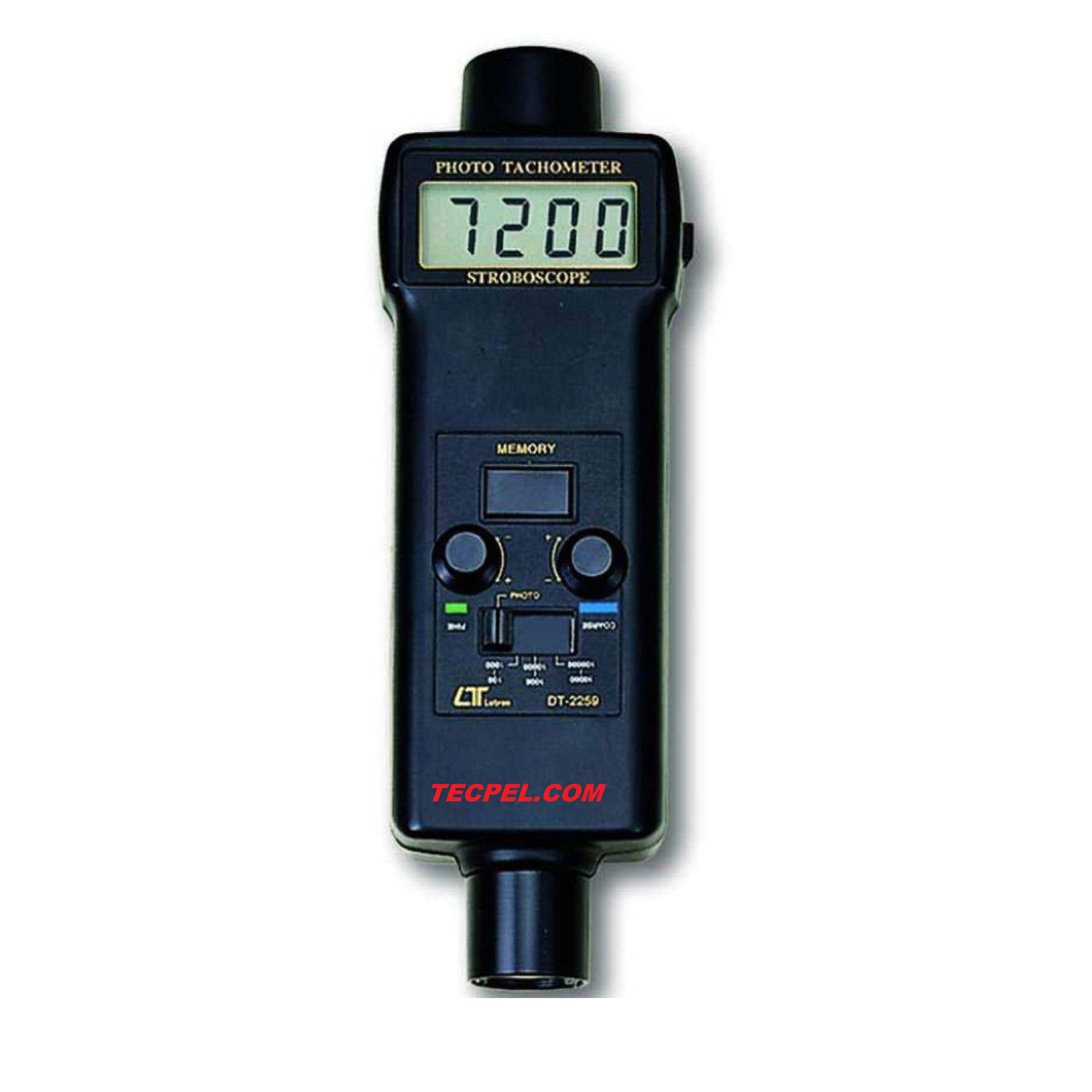

The DT-2259 Optical/Stroboscopic Dual-Purpose Tachometer is a high-precision instrument designed for industrial equipment, offering a wide range of speed measurement capabilities. It accurately measures the speed of various devices such as gears, fans, centrifuges, pumps, and motors. Equipped with advanced microprocessor technology, it ensures stable and precise data display, making it ideal for both field testing and routine maintenance.
Specifications
- Display5, 10 mm(0.4inch)LCDdisplay
- Accuracy±0.1%
- Sampling Rate1s(60 RPM)
- SpecificationSee datasheet
- Advanced CircuitrySee datasheet
- Operating Temperature0 ~ 50 ℃
- Operating Environment Humidity80% RH
- Weight300 g
- Dimensions215 x 65 x 38 mm
- Accessories, 1
- Measuring Range100 ~ 100,000 FPM/RPM
- Resolution0.1 FPM/RPM (<1,000 FPM/RPM), 1 FPM/RPM (≥1,000 FPM/RPM)
Features
- Accuracy±0.1%
- Digital DisplayLCD display
- Memory Functionmax./min./
- SpecificationYes
- Max/MinYes
- PortabilityYes
- Measuring Range100 ~ 100,000 FPM/RPM
- Specification LED
Attributes
- Operating TemperatureTemperature 0 ~ 50 ℃, Humidity below 80% RH
- Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH
- Altitude LimitShould be below 2,000 meters
- Power Supply4 x 1.5V batteries
- Dimensions215 x 65 x 38 mm
- Weight300 grams (including battery)
