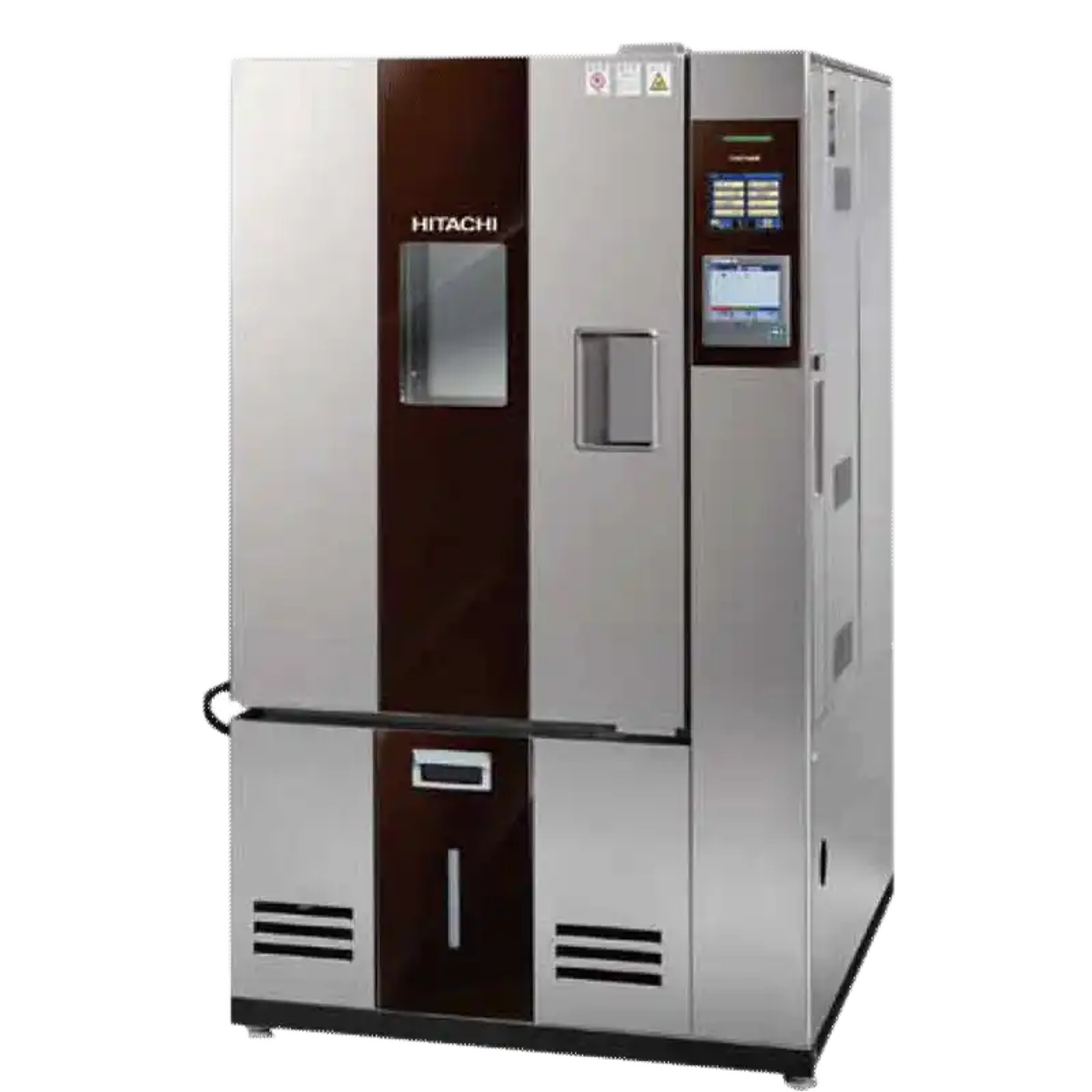

Hitachi EC-16MHP Constant Temperature & Humidity Chamber
Brand
HITACHI
|
Model
EC-16MHP
|
🇯🇵 Japan
The appearance of the new design, the exterior material is made of stainless steel (SUS430), the center of the front is made of colored resin board, new functions are added: defrosting function, delayed humidification function
USB memory storage function, data lock function, operation mode selection function
Out of Stock
Views: 625
Description
Since Hitachi produced the first refrigeration equipment in 1942, it has been committed to the development of higher quality compressors. In 1982, the first generation scroll compressor was developed, which brought a revolution in the core components of environmental testing products. In 2006, a new generation of Excellent series environmental testing equipment with smaller noise, lower vibration and more energy-saving energy consumption was introduced to the market equipped with a new generation of scroll compressors. Today, Hitachi environmental testing equipment, as a part of Hitachi air conditioner series products with world-class quality, is making continuous progress for lower environmental pollution and lower energy consumption. Hitachi's environmental testing equipment "Cosmopia" responds to the requirements of the times with performance and reliability. Hitachi's existing products include: Cosmopia C type, constant temperature and humidity chamber, rapid temperature change chamber, battery explosion-proof chamber, super large constant temperature and humidity chamber, etc. Cosmopia S type, three-box thermal shock test chamber, liquid tank thermal shock test chamber, excellent thermal shock test chamber, etc. Cosmopia R type, large walk-in constant temperature and humidity chamber, integrated walk-in constant temperature and humidity chamber, air-cooled constant temperature and humidity chamber. Hitachi environmental testing equipment is used in many fields such as semiconductors, electronic products, automotive electronics, aerospace engineering, bioengineering, etc. We will try our best to produce high-functional products for high-level development and research
Specifications
- Display Counts1,999 display
- Temperature Range-40 ~ 100 °C
- Humidity20 ~ 98 %RH
- Specification3.0°C / 10%RH
- Spatial Deviation1.5°C / 5%RH
- Specification : 3°C / min @( -26 ~ 86°C ) /: 2.0°C / min @(-26 ~ 86°C )
- Specification 20 to 100 °C approx.30min
- Specification 20 to -40 °C approx.60min
- Sensor Typeresistance
- Specification See datasheet
- Specification SUS430
- Specification See datasheet
- Data TransmissionRS-232
- Operating Temperature-10~50°C / below75%RH non-condensing
- Storage Temperature0~50°C / below75%RH non-condensing
- Altitude Limitbelow 2,000 m
- Power Supply3 200V 50Hz/60Hz, 220V 60Hz, 380V 50Hz
- Specification 0.6kW
- Load Currentmax.18A
- Specification 500 × 380 × 630 mm (120L)
- Dimensions900 × 770 × 1,425 mm
- Weightapprox. 170kg
