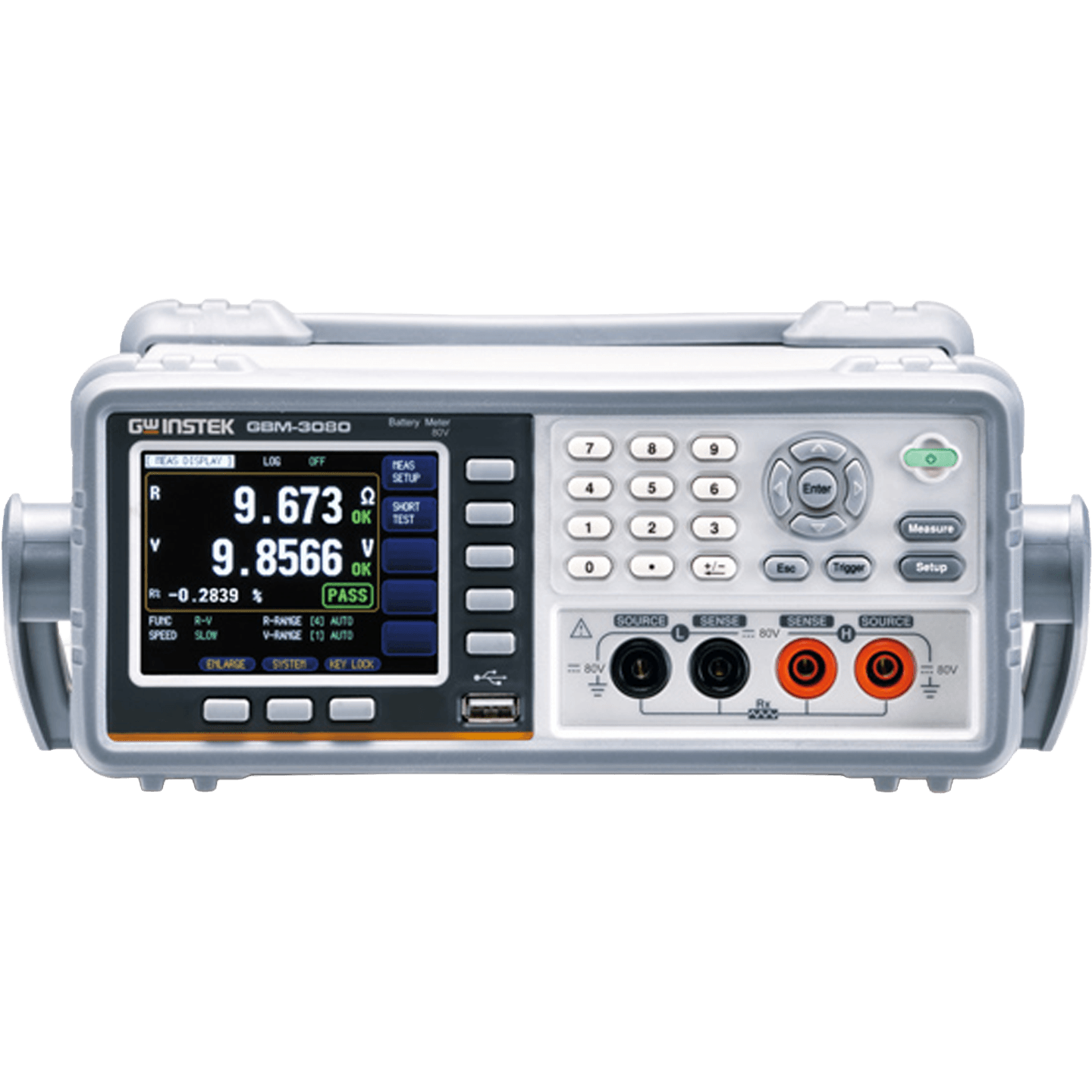

GBM-3000 Battery Tester
Brand
GWINSTEK
|
Model
GBM-3000
|
🇹🇼 Taiwan
• Designed for automotive and industrial batteries
• Provides DC voltage (0~1000V / 0~300V / 0~80V) and AC impedance (0mΩ~3.2kΩ) measurements
• Independent GO/NOGO judgment function
• 3.5-inch TFT LCD display (320x240)
• Testing speed up to 60 times/second (Ex. high speed)
• Measurement resolution up to 0.1μΩ and 10μV
• Disconnection judgment mechanism ensures testing reliability
• Standard interfaces: USB host/device, RS-232C, and Handler
Out of Stock
Views: 566
Description
The GBM-3000 Battery Tester is a highly efficient testing instrument designed for automotive and industrial batteries, featuring a high-resolution display and precise measurement capabilities. It provides accurate DC voltage and AC impedance measurements, and includes an independent GO/NOGO judgment function to ensure reliability in every test. Compatible with various battery models, including the GBM-3100H, GBM-3300, and GBM-3080, its outstanding measurement accuracy and resolution allow users to precisely check battery conditions, enhancing testing efficiency.
Specifications
- Measurement ItemsDC voltage,
- DC Voltage0~1000V（GBM-3100H），0~300V（GBM-3300），0~80V（GBM-3080）
- Impedance Measurement0mΩ~3.2kΩ
- measurement0.5%
- Accuracy0.1μΩand10μV
- ModelGBM-3100H, GBM-3300, GBM-3080
- Measuring Range0~3.2kΩ
- Display3.5”(320 x 240) TFT LCD
- Test Speed60 /s(Ex. )
Features
- GO/NOGOYes
- Test Speed4 /s, 11 /s, 25 /s, Ex. 60 /s
- InterfaceUSB host/device, RS-232CandHandler
- SpecificationYes
- Auto RangeYes
- Comparator FunctionABS, PER, SEQ
- Data TransmissionUSB Host/Device, RS-232C, Handler
- Specification /
Attributes
- Operating Temperature18 ~ 28 °C
- Display3.5’ TFT LCD (320x240)
- Dimensions264(W) x 107(H) x 309(D) mm
- WeightApprox. 2.8kg
- Power SupplyAC 100-240V, 50-60Hz
