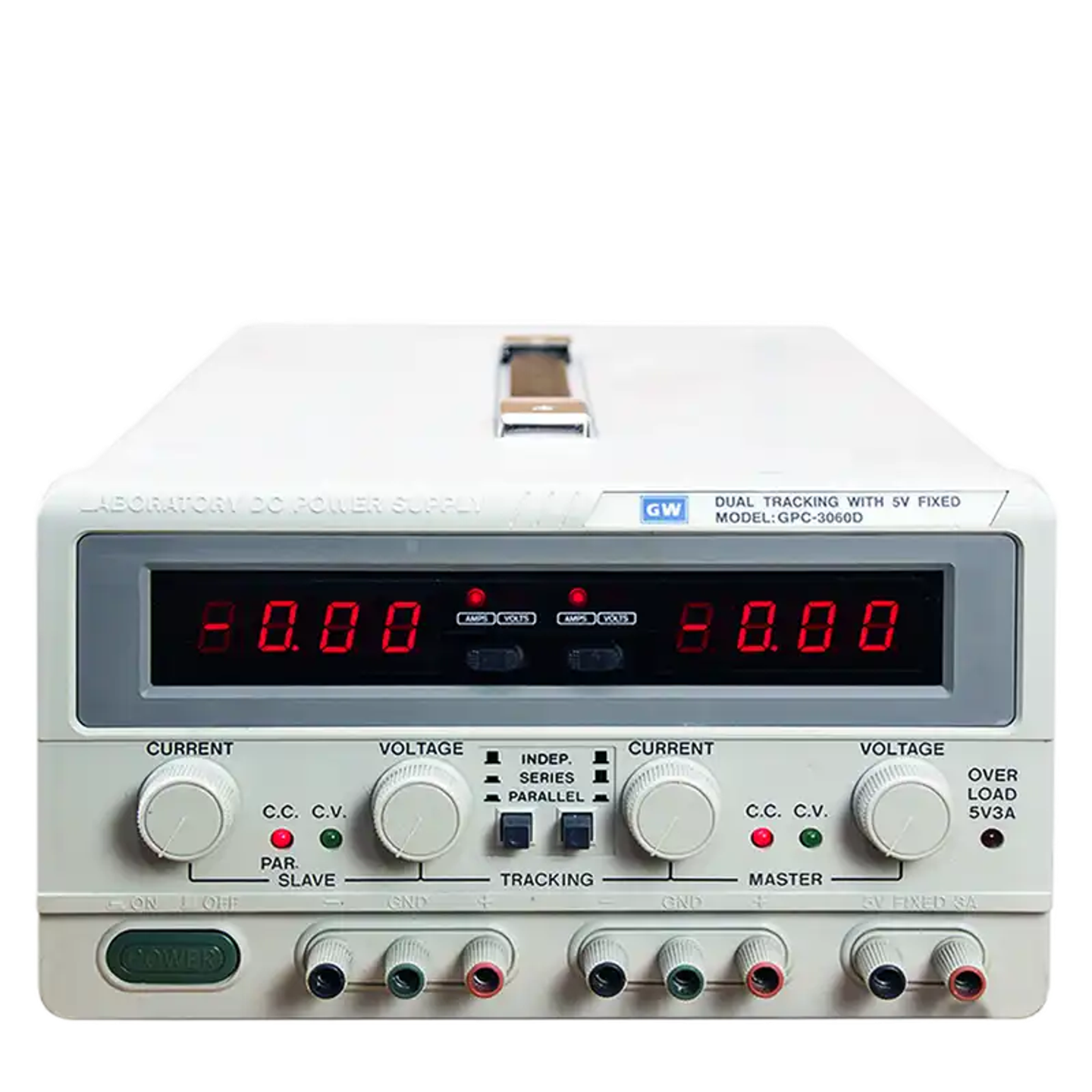

30V/6A DC Power Supply
Brand
GWINSTEK
|
Model
GPC-3060D
|
🇨🇳 China
The GPC-3060D power supply offers three-channel output, including dual-channel 30V/3A and single-channel 5V/3A.
Equipped with dual knobs for easy adjustment of output voltage and current.
It supports automatic series and parallel operation, with constant voltage and current limiting modes,
making it suitable for various testing and experimental needs.
Out of Stock
Views: 602
Description
The GPC-3060D is a three-channel linear DC power supply capable of delivering up to 195W of output power, with a maximum output of 30V/6A. It features overload and reverse polarity protection to ensure the safety of both the power supply and the load, preventing accidental damage. With ripple and noise below 2mVrms, it is ideal for applications requiring precise pulse current. Its compact design makes it easy to carry, making it an excellent choice for users seeking low noise and multiple output options.
Specifications
- Display0.0~30.0V
- Output Voltage0.00~6.00A
- Output Current5V/3A Max
- Interfaceindependent output / /
- Accuracy≦0.01%+3mV
- Voltage Limit Regulation Rate≦2mVrms
- Voltage Load Regulation Rate≦0.2% + 3mA
- Current Limit Regulation Rate≦0.2% + 3mA
- Current Load Regulation Rate≦5mV / ≦10mV
- Voltage Ripple3A
Features
- Channelsthree channels
- Output ControlYes
- Operating ModeConstant voltage and current limiting modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionCC and CV indicators stay lit
- Alarm FunctionCC and CV
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60 °C / lower than 80%RH without dew
- Altitude LimitLower than 1,000 meters
- Display3 1/2 digits 0.5“ LED display
- Power Supply±( 0.5% of rdg + 2 digits )
- DimensionsAC 100V/120V/220V/240V ±10%, 50/60Hz
- Weight255(W) x 145(H) x 420(D) mm
- AccessoriesPower Cable、Test Lead x3
