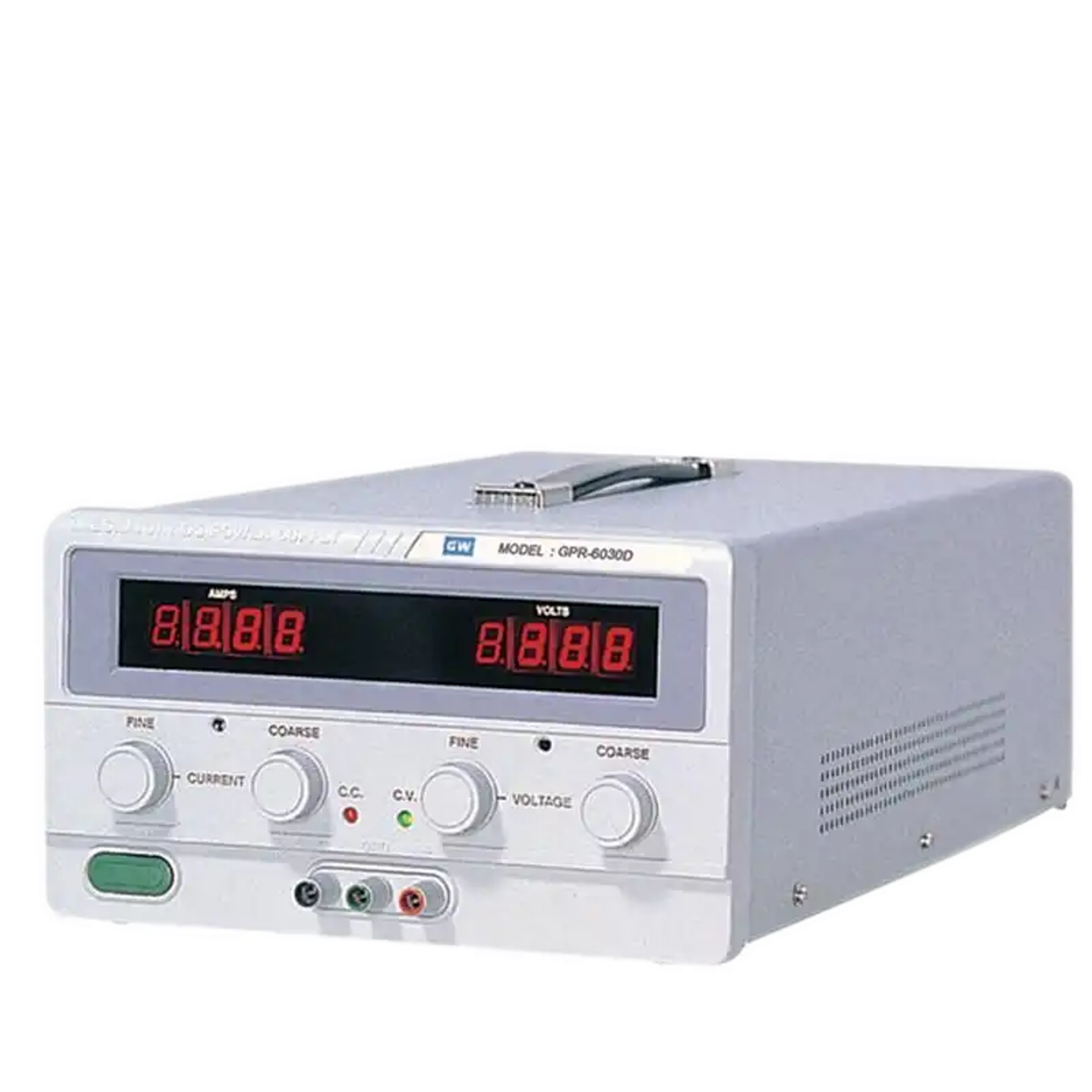

60V/3A DC Power Supply
Brand
GWINSTEK
|
Model
GPR-6030D
|
🇨🇳 China
Single-channel power supply with output range of 60V/3A,
Dual potentiometer design for independent voltage and current adjustment,
Low ripple and low noise output,
Overload and reverse polarity protection features,
CC and CV indicator lights for constant alerts.
Out of Stock
Views: 644
Description
The GPR-6030D series is a high-performance single-output 60V/3A DC power supply, designed for high-end precision bench applications with a power output of 180W. This device supports constant voltage and constant current operation modes, providing stable and predictable outputs while maintaining excellent line regulation under low load conditions. With overload protection and reverse polarity protection features, it ensures safe operation and supports the selection of continuous or dynamic load to meet various testing needs.
Specifications
- Output VoltageCH1 0~60V/0~3A
- Output Currentindependent output
- Voltage Limit Regulation Rate≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01% + 5mV (≦10A)
- Current Limit Regulation Rate≦3mArms
- Current Load Regulation Rate≦0.2% + 3mA
- Voltage Ripple≦0.2% + 3mA
- Current Ripple≦3mArms
Features
- Channelssingle channel
- Output ControlConstant voltage and current limiting modes
- Operating ModeLow ripple and low noise
- Output CharacteristicsOverload and reverse polarity protection
- Overload ProtectionCC and CV indicators stay lit
- Alarm FunctionCC and CV
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~60°C / lower than 80%RH without dew
- Altitude LimitLower than 1,000 meters
- Display3 1/2 digits 0.5“ LED display
- Accuracy±(0.5% of rdg + 2 digits)
- Power SupplyAC 100V/120V/220V/240V ±10%, 50/60Hz
- Dimensions255(W) x 145(H) x 335(D)mm
- Weight11.5 kg
- AccessoriesPower Cable、Test Lead
