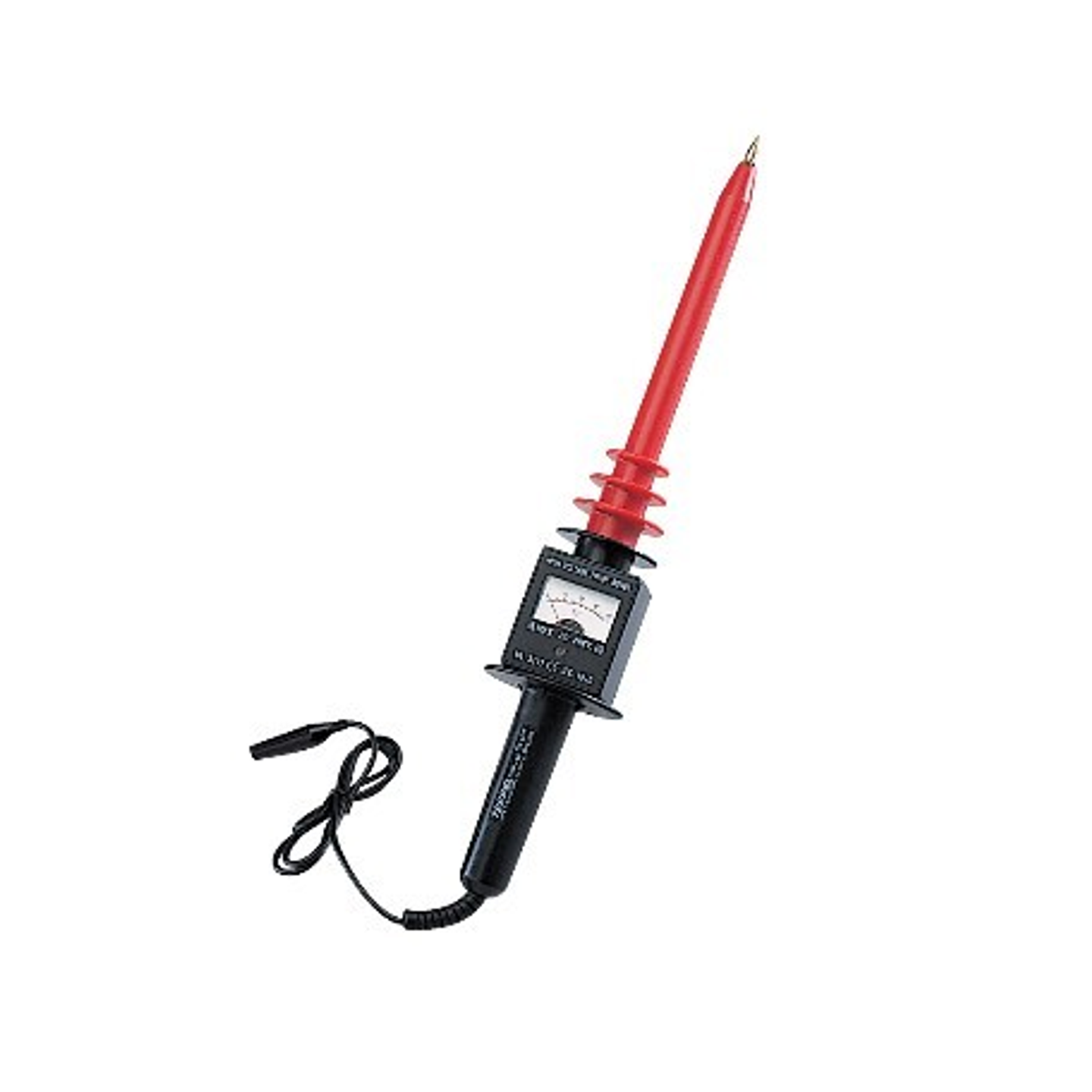

High Voltage Analog Meter
Brand
TECPEL
|
Model
HVP-40M
|
🇹🇼 Taiwan

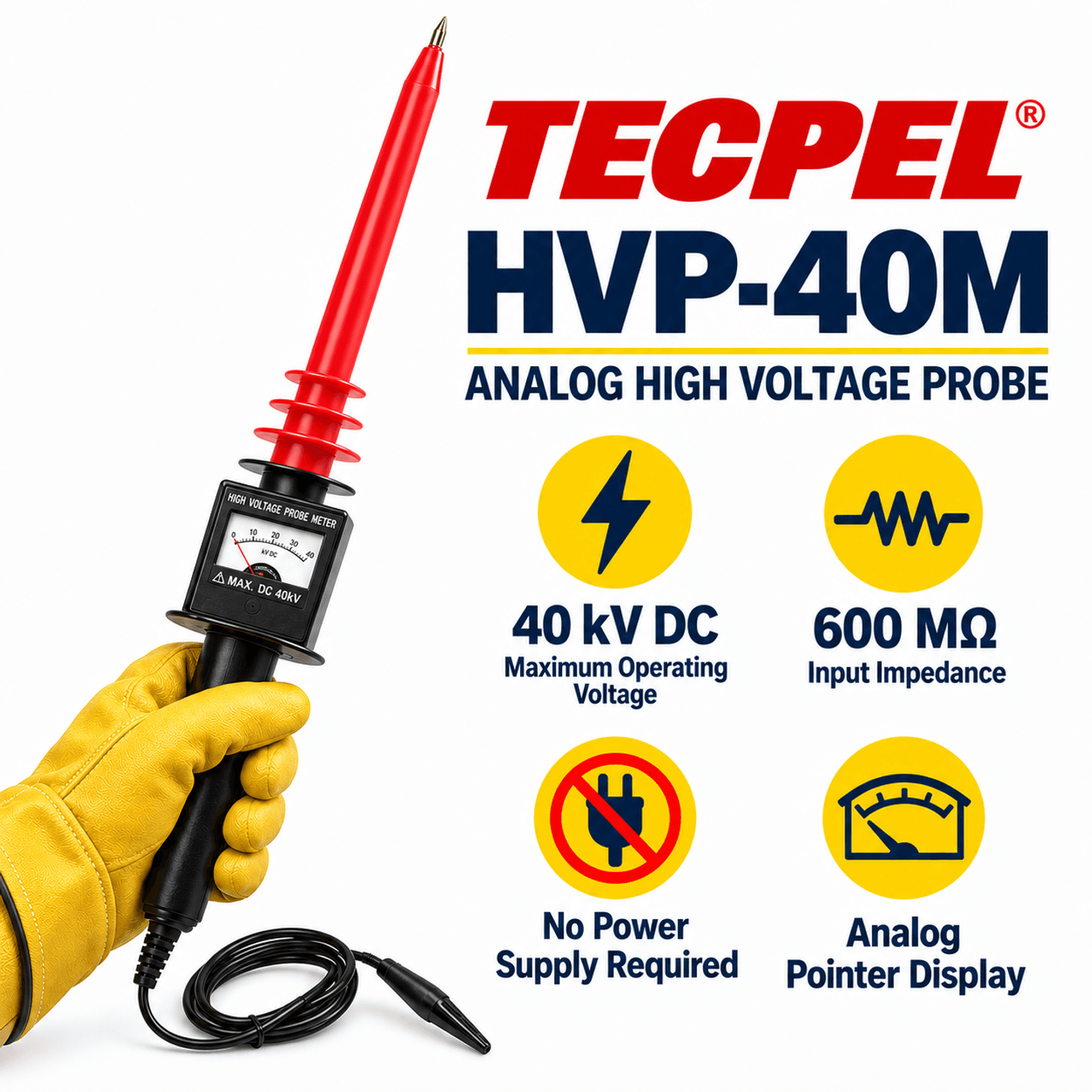

The Tecpel HVP-40M High Voltage Analog Meter is a highly precise measuring tool with the following features:
- Measurement range up to 40KV DC
- 600MΩ high impedance
- Factory calibration accuracy: 25KV ± 2%, 40KV ± 3%
- No external power required
- Stable analog display
- Suitable for harsh industrial environments
Price
NT$ 3,420
Out of Stock
Views: 588
Description
The Tecpel HVP-40M is a high voltage analog meter designed to measure voltages up to 40KVDC. This instrument features a high impedance of 600MΩ and operates without the need for external power, providing high accuracy displays suitable for various demanding industrial environments. Whether in power engineering, equipment maintenance, or research fields, the HVP-40M ensures accurate and reliable measurement results.
Specifications
- Input Impedance600MΩ
- Maximum Input Voltage40KV DC, CAT II, Pollution 2
- DisplaySee datasheet
- Accuracy25KV ± 2%, 40KV ± 3%
- Temperature Coefficient≦ 200ppm / ℃
- max.≦ 70μA
- max. ≦ 3
- Power Supply40KV / 1
- Resolution1KV
- Operating Temperature0 ℃ ~ + 50 ℃
- Storage Temperature-20 ℃ ~ + 70 ℃
- Accessories90cm ( 35'' )
- Dimensions420L x 80ψ
- Weight360g
Features
- Safety RatingYes
- 600MΩYes
- 25KV ± 2%, 40KV ± 3%Yes
- T.C. 200 ppm/℃Yes
- SpecificationYes
- ResolutionYes
- Specification Yes
- CertificationYes
Attributes
- Operating Temperature0 ℃ ~ + 50 ℃
- Storage Temperature-20 ℃ ~ + 70 ℃
- Dimensions420L x 80ψ
- Weight360g
- Accessories90cm ( 35'' )
