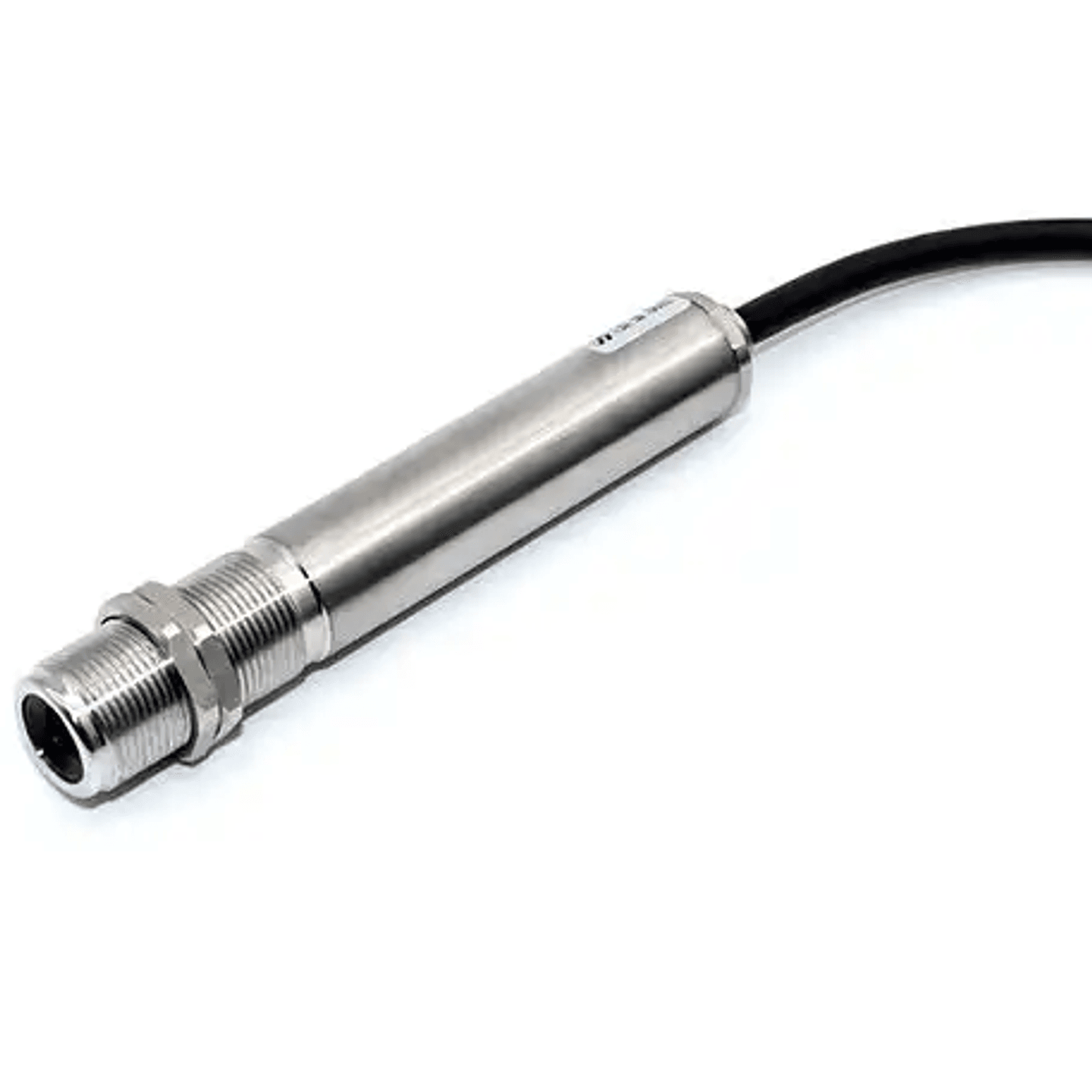

Infrared Temperature Transmitter
Brand
TECPEL
|
Model
IRS-10LT
|
🇨🇳 China
The IRS-10LT is compatible with industrial instruments, outputting data through a 0-5V voltage signal or K-type thermocouple signal, linking to related temperature monitoring equipment.
- Suitable for long-term measurement in fixed positions
- Requires connection to a display head or industrial monitoring equipment
- Accurately reflects surface temperatures
- Ideal for high-temperature boilers and industrial production lines
Out of Stock
Views: 514
Description
The IRS-10LT Infrared Temperature Transmitter is designed for long-term, fixed-position temperature measurement, accurately reflecting the surface temperature of objects. It is particularly suitable for industrial production lines and high-temperature boiler applications. Its high-performance infrared sensing technology ensures stable operation even in harsh environments, providing precise data output.
Specifications
- Temperature Range0 ~ 500°C (32~932°F)
- Spectral Range8~14 μm
- WeightSee datasheet
- Accuracy±1% +1.5°C
- Specification0.5% + 1°C
- Optical Resolution15:1
- Response Time150ms (95%)
Features
- Body MaterialSS 304stainless steel
- Protection Rating65 NEMA-4
- Emissivity0.95
- Signal Output(0~5VorK-Type)
Attributes
- Operating Temperature0~70 °C
- Storage Temperature-20~85 °C / 10~95%RH (No )
- Power SupplyDC 24V ±10%
- Power Consumptionmax.approx. 50mA
- Dimensions16(diameter) x 101.0 mm
- Weight200 g
- AccessoriesSee datasheet
