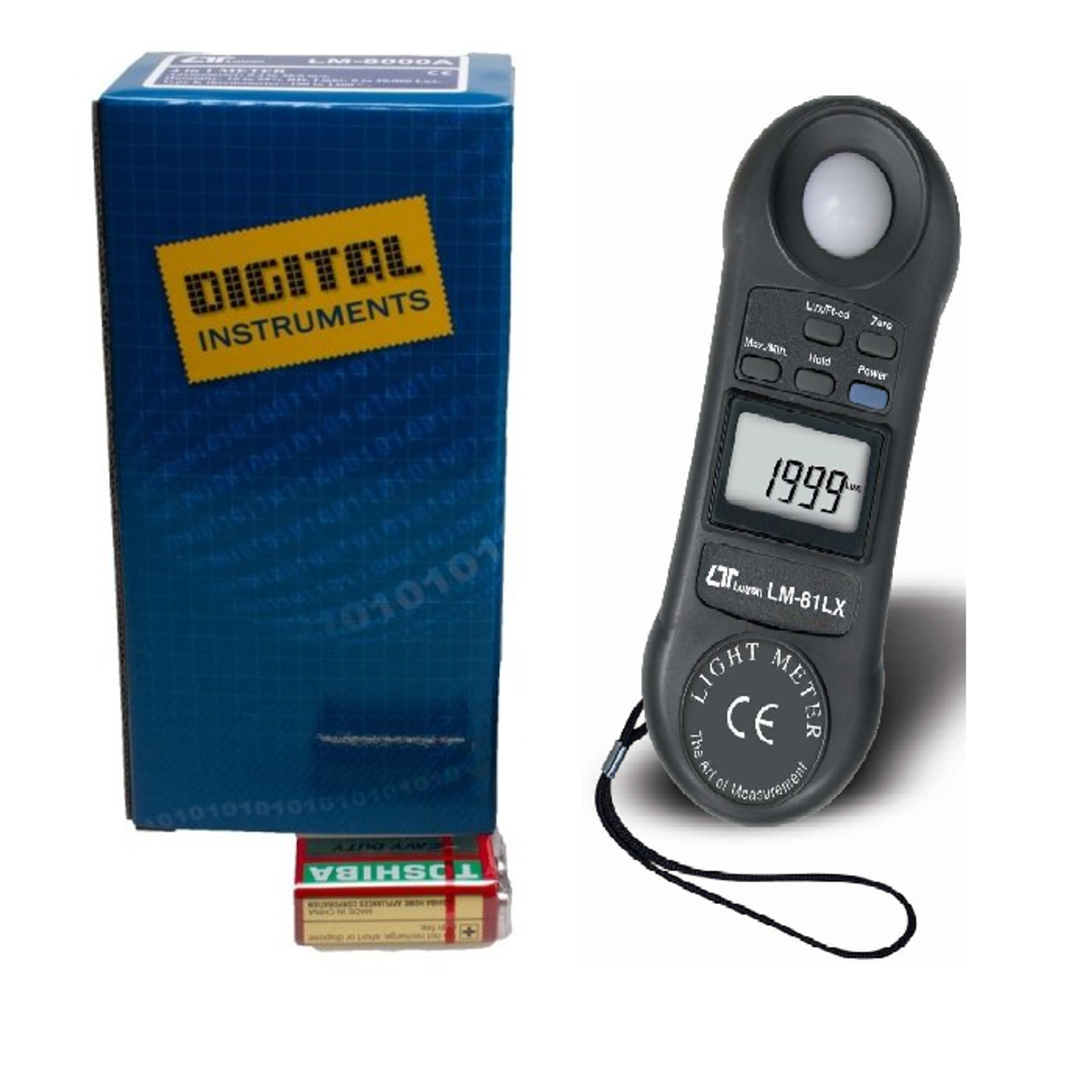

LM-81LX Handheld Light meter
Brand
LUTRON
|
Model
LM-81LX
|
🇹🇼 Taiwan
Key features of the LM-81LX Handheld Light Meter include:
- Compact design for one-handed operation
- Measurement range: 0 to 20000 LUX, meeting daily requirements
- Accuracy: ±5% for precise measurements
- Automatic range switching based on environment
- Light sensor spectral response compliant with C.I.E standards
- Value locking and maximum/minimum recording functions
- Suitable for various applications including offices, factories, shopping malls, and outdoor settings
Price
NT$ 1,500
Out of Stock
Views: 663
Description
The LM-81LX Handheld Light Meter features a compact design that allows for one-handed operation and accurately measures the illuminance in the environment. It has a measurement range of 0 to 20000 LUX (illuminance) and 0 to 2000 Ft-cd (foot-candle), with an accuracy of ±5%. The automatic range switching function enables users to switch units based on the environment, and the light sensor's spectral response meets C.I.E standards, ensuring measurement accuracy. Additionally, the LM-81LX offers value locking and maximum/minimum value recording features for convenient data logging. This light meter is widely used for measuring lighting effects in offices, factories, shopping malls, and is also suitable for measuring sunlight illuminance in outdoor activities or agriculture.
Specifications
- Display5digitsLCDdisplay, 8mm
- Measurement UnitLux, Foot-candle
- Specificationdisplay "- - - - "
- Overload Protection"" - - - - ""
- Light Intensity0to20000 Lux, 1 Lux ± 5% rdg ± 8 dgt
- Foot-candle0to2000 Fc, 1 Ft-cd ± 5% rdg ± 8 dgt
Features
- designYes
- Measuring Range0to20000 LUX / 0to2000 Ft-cd
- Accuracy±5%
- SpecificationYes
- Specification complies withC.I.E
- Data Holdmeasurement
- Max/Minmeasurement max.andmin.
Attributes
- Operating Temperature0℃~50℃(32℉~122℉)/ less than 90%RH. No condensation.
- Storage Temperaturelower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 9 volt battery, 006P x 1
- Power Consumptionabout DC 6.2mA.
- DimensionsHost :156*60*33mm.
- Weight5.64 oz(260g)
- Accessoriesoperating instructions x 1 copy
