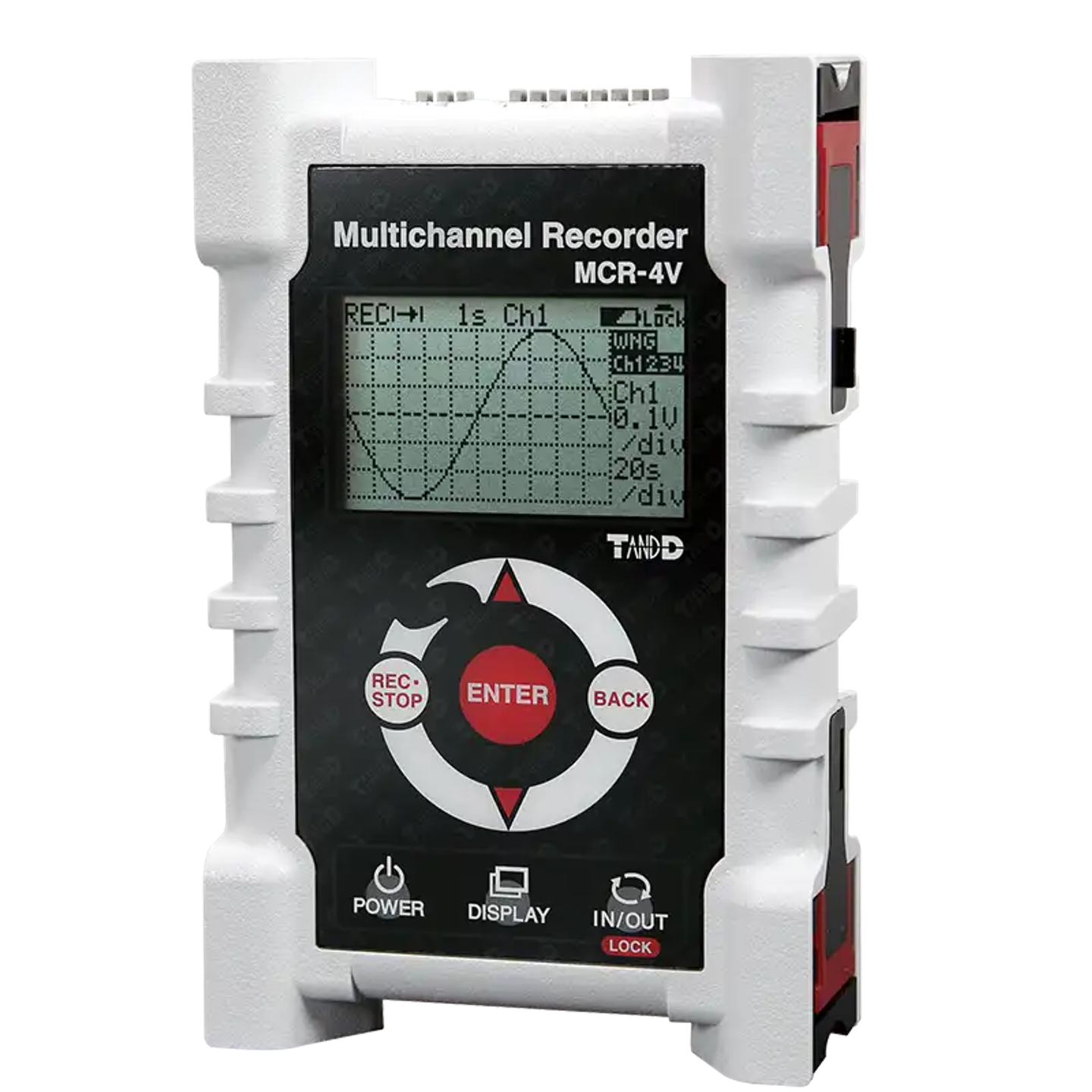

Voltage Signal Recorder
Brand
T&D
|
Model
MCR-4V
|
🇯🇵 Japan
• Supports up to 4 units in parallel for 16-channel usage
• Main unit automatically syncs settings with other recorders
• Recording modes include endless and one-time recording
• Data transfer options via USB and SD card
• Flexible recording intervals from 2 milliseconds to 60 minutes
• Single-channel recording capacity of up to 480,000 data points
• Displays both data and curve graphs
• Up to 4 units can be connected in parallel
Price
NT$ 11,550
Out of Stock
Views: 711
Description
The MCR-4V is a high-performance voltage signal recorder produced by Japan's TandD Company. It features high-speed measurement and recording capabilities, capturing voltage changes at intervals of 2 milliseconds. This device can simultaneously display data from four measurement channels and offers curve plotting functionality, allowing users to quickly browse data trends. It is suitable for various voltage monitoring applications, providing precise and reliable data recording solutions in both laboratory and industrial settings.
Specifications
- Measuring Range±300mV / ±1.5V / ±6V / ±24V,max. ±50V
- Channels1.1MΩ
- Frequency100Hz
- Accuracy±(0.3% + )
- Resolution0.01mV( 50~60 )
Features
- Recording Moderecords(Endless) ／ (One Time)
- CommunicationUSB / SD
- Recording Interval2, 5, 10, 20, 50, 100, 200, 500 ms, 1, 2, 5, 10, 15, 20, 30 s, 1, 2, 5, 10, 15, 20, 30, 60 min
- Data Loggingsingle channel 480,000 records
- Display/
- Specification4
Attributes
- Operating Temperature-10 to 40°C / lower than 75%RH without dew。
- Storage Temperature0 ~ 60°C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 2 / USB 5V
- Dimensions120 x 75 x 32 mm
- Weight140 g
- AccessoriesBattery x2, SD card , Manual
