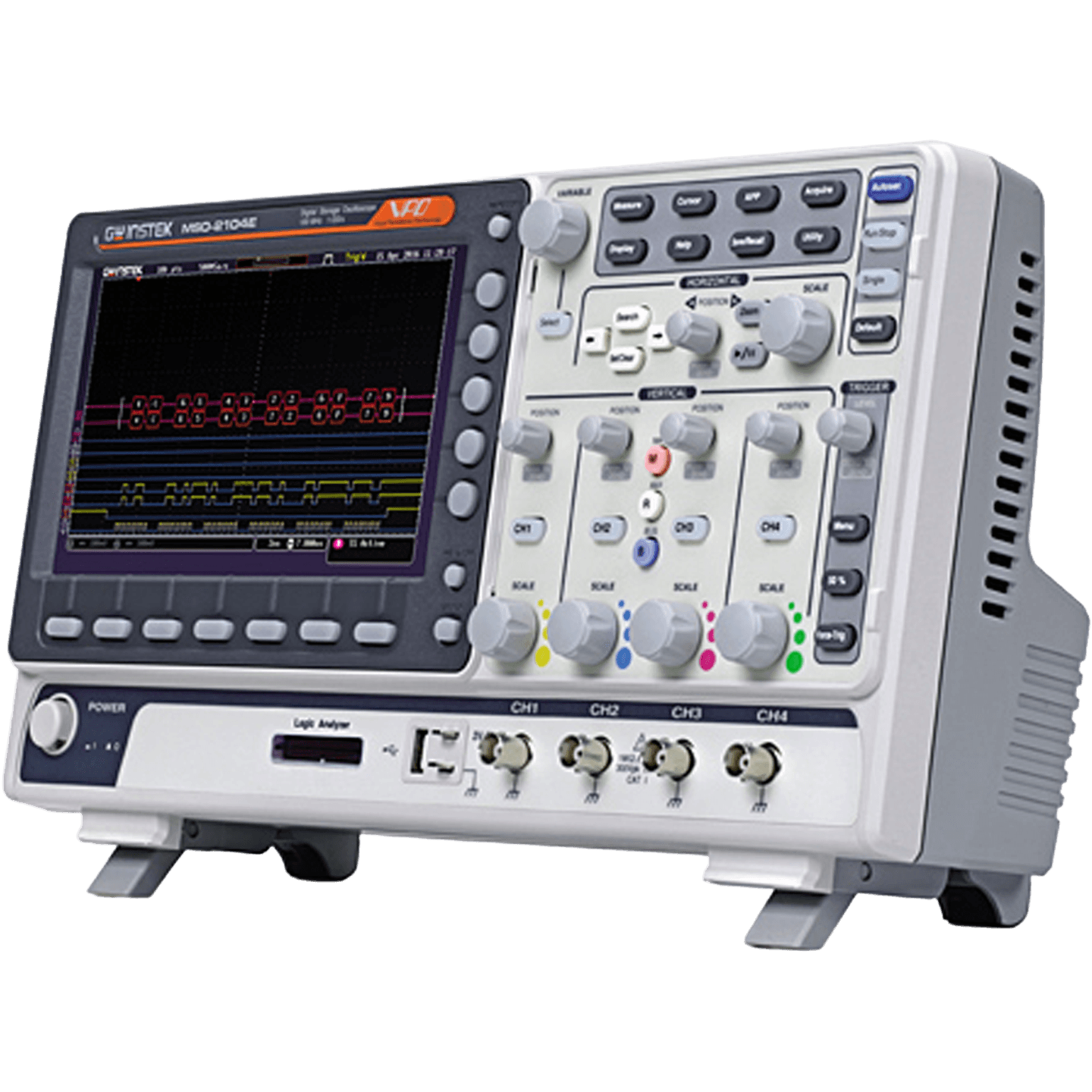

200MHz Mixed-signal Oscilloscopes

Brand GWINSTEK | Model MSO-2202E | 🇨🇳 China

With a 200MHz high bandwidth, it easily captures the details of high-speed signals, delivering clear and stable performance even with complex waveforms. Dual-channel synchronous observation of analog and digital signals helps quickly identify the source of abnormalities. Equipped with advanced trigger functions, it precisely locks onto every critical moment, ensuring no subtle change is missed. A large display screen and intuitive user interface make testing and analysis smoother, enabling every measurement task to be completed efficiently.

Out of Stock

The MSO-2202E 200MHz Mixed-signal Oscilloscope is designed for electronic engineers and technicians, offering high frequency and high resolution signal measurements. This oscilloscope features advanced digital signal processing technology, allowing simultaneous display of analog and digital signals, making it suitable for various testing and troubleshooting applications, especially in the development of digital circuits and embedded systems, effectively enhancing work efficiency.

Bandwidth200 MHz
Channels2 + Ext
Memory Depth10 Mpts
Sampling Rate1 GSa/s
Resolution8 bit
Rise Time1.75 ns
Bandwidth Limit20 MHz / 100 MHz
Vertical Sensitivity1 mV/div ~ 10 V/div
Offset Range1 mV/div ~ 20 mV/div: ±0.5 V; 50 mV/div ~ 200 mV/div: ±5 V; 500 mV/div ~ 2 V/div: ±25 V; 5 V/div ~ 10 V/div: ±250 V
Timebase Range1 ns/div ~ 100 s/div (1-2-5 )
Timebase Accuracy±50 ppm (≥ 1 ms)
DC Gain Accuracy±3% (2 mV/div ); ±5% (1 mV/div)
Input CouplingAC, DC, GND
Input Impedance1 MΩ // approx. 16 pF
Trigger Holdoff Range1 div
Trigger Sensitivity2 ns (typical)
Peak Detection2 ~ 256
Average Count120,000 wfms/s
Waveform Update Rate120,000 wfms/s

PolarityNormal, Invert
Maximum Input Voltage300 Vrms, CAT I
Waveform Math+, -, ×, ÷, FFT, FFTrms,
FFT Points1 Mpts
FFT Functiondisplay; FFT Linear RMS or dBV RMS; FFT: Rectangular, Hamming, Hanning, Blackman-Harris
Trigger SourceCH1, CH2, Line, EXT External Trigger: ±15V, Sensitivity DC~100MHz approx. 100mV / 100~200MHz approx. 150mV, 1MΩ±3% // 16pF
Trigger ModeAuto (100 ms/div supports Roll Mode), Normal, Single Sequence
Trigger TypeEdge, Pulse Width (Glitch), Video, Pulse Runt, Rise & Fall (Slope), Alternate, Timeout, Event-Delay (1~65535 events), Time-Delay (Duration, 4 ns~10 s), Bus
Trigger CouplingAC, DC, LF Reject, HF Reject, Noise Reject
Auto Triggersupports
Waveform Storagesupports (24 sets)
Setup Storage20 sets
Auto Measurement38 sets measurement: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase, Cursor
Auto Counter6 digits, 2 Hz ~
Autoset( undo)
Cursor MeasurementAmplitude, Time, Gating
Acquisition ModeNormal, Average, Peak Detect, Single
XY ModeX: CH1 (CH3*), Y: CH2 (CH4*); ±3° @ 100 kHz
Waveform DisplayYT, XY; Dots, Vectors, (16 ms~4 s), No
InterpolationSin(x)/x
Graticule8 x 10 div
Multi-language Interfacesupports
Online Helpsupports
Time Clockand
Logic Analyzer Channels16 (D15 - D0)
Logic Analyzer Sample Rate1 GSa/s
Logic Analyzer Bandwidth200 MHz
Logic Analyzer Record Length10 Mpts
Logic Trigger TypesEdge, Pattern, Pulse Width, Serial Bus (I2C, SPI, UART/RS232/422/485, CAN, LIN), Parallel Bus
Logic Threshold Groupssets: D0~D3, D4~D7, D8~D11, D12~D15
Logic Threshold OptionsTTL, CMOS(5V, 3.3V, 2.5V), ECL, PECL, 0V, (±5V)
Logic Maximum Input Voltage±40 V
Logic Minimum Voltage Swing±250 mV
Logic Input Impedance101 kΩ // 8 pF

Operating Temperature0 ~ 50 °C / ≤80%RH @ 40°C; ≤45%RH @ 41 ~ 50°C
Storage Temperature-
Altitude Limit-
Display8 inch TFT LCD WVGA display (800 x 480)
InterfaceUSB 2.0 Host x1, USB 2.0 Device x1, Ethernet LAN (RJ-45, 10/100Mbps), Go-NoGo BNC
Dimensions384 x 208 x 127.3 mm
Weightapprox. 2.8 kg
Power Supply100 ~ 240 V AC
