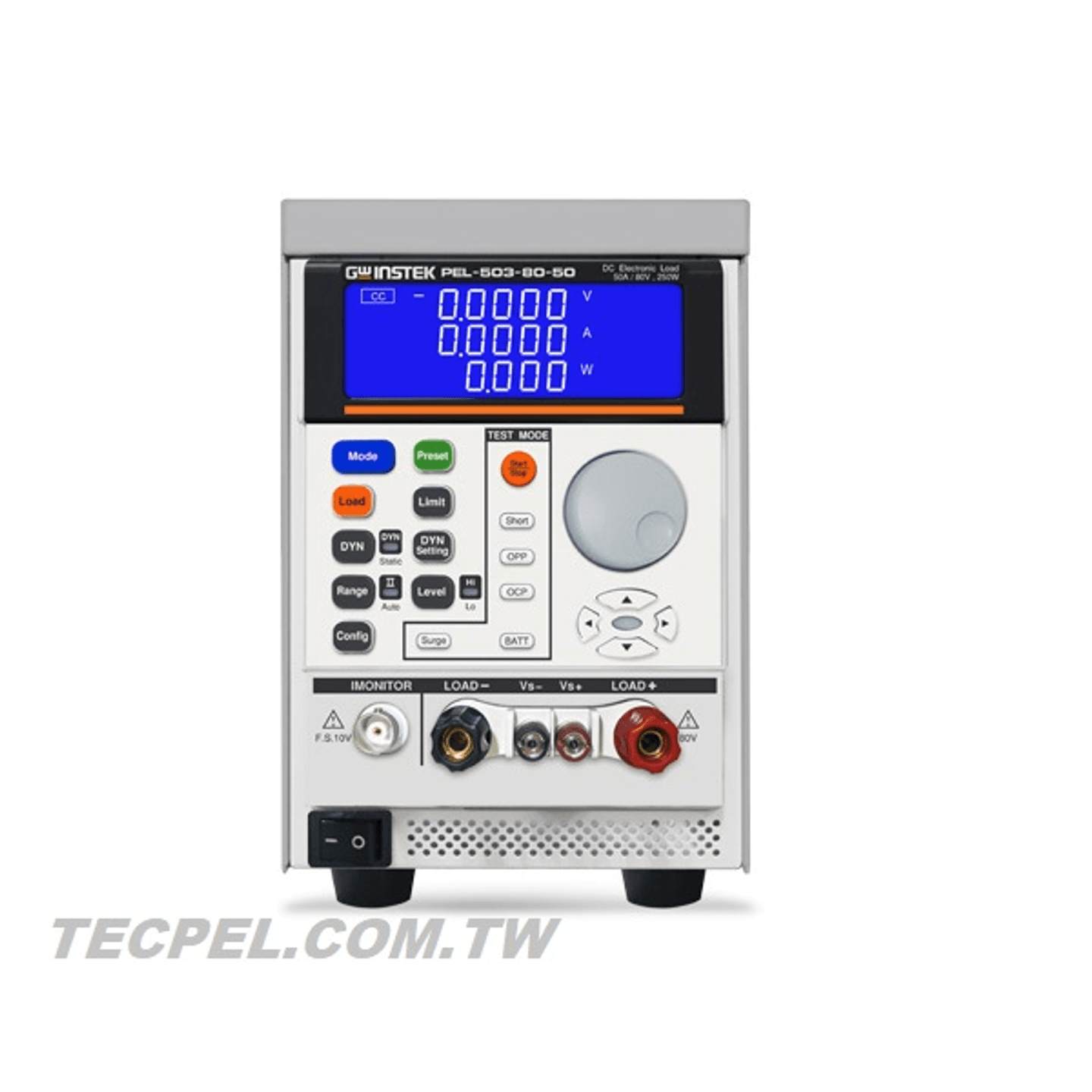

PEL-500 Series DC Electronic Load
Brand
GWINSTEK
|
Model
PEL-500
|
🇹🇼 Taiwan
The PEL-500 Series is a single-channel DC electronic load family with 0~80V / 0~500V and 250~700W models for R&D, QC, ATE and production testing.
Out of Stock
Views: 442
Description
The PEL-500 Series single-channel DC electronic load family includes five models with 0~80V / 0~500V operating voltage ranges and 250~700W power ranges. It is suitable for R&D, quality control, ATE systems and production testing, including voltage-source / current-source testing, switching power supply transient response, current-limit testing in CV mode, battery simulation and battery discharge testing. The series provides 5-digit voltage, current and power meters with simultaneous display, plus Surge test, short test, OCP / OPP auto test, GO/NG judgment, CC / CR / CV / CP / Dynamic modes, over-voltage, over-current, over-power, over-temperature protection and reverse-polarity detection.
Specifications
- Power Supply0~500V ±0.025%
- Current Range0~140A ±0.1%
- Specification0~700W ±0.1%
- Temperature+20 ~ +30 °C
- Temperature Range0 ~ 50°C ±0.5°C
- max.Power Supply700W
- InputVoltage80V / 500V
- InputCurrent50A / 70A / 140A / 30A
- ResolutionVoltage 0.135mV / Current 0.084mA / 0.001W
Features
- SpecificationCC, CR, CV, CP
- AccuracymeasurementYes
- Overload ProtectionCurrent, Voltage, TemperatureProtection
- Specification supports, Current
- Specification CC、CV、CP、CR
- ProtectionYes
- Protection Yes
- Protection Yes
- CurrentProtectionYes
- VoltageProtectionYes
Attributes
- Dimensions205 x 123 x 477 mm / 205 x 231 x 480 mm
- Weight5.3 kg
- SpecificationUSB/RS232
- Power Supply115/230 Vac±10%, 50/60Hz
- InterfaceUSB/RS232
- Dimensions 205 x 123 x 477 mm
- Power SupplyInput115/230 Vac±10%, 50/60Hz
