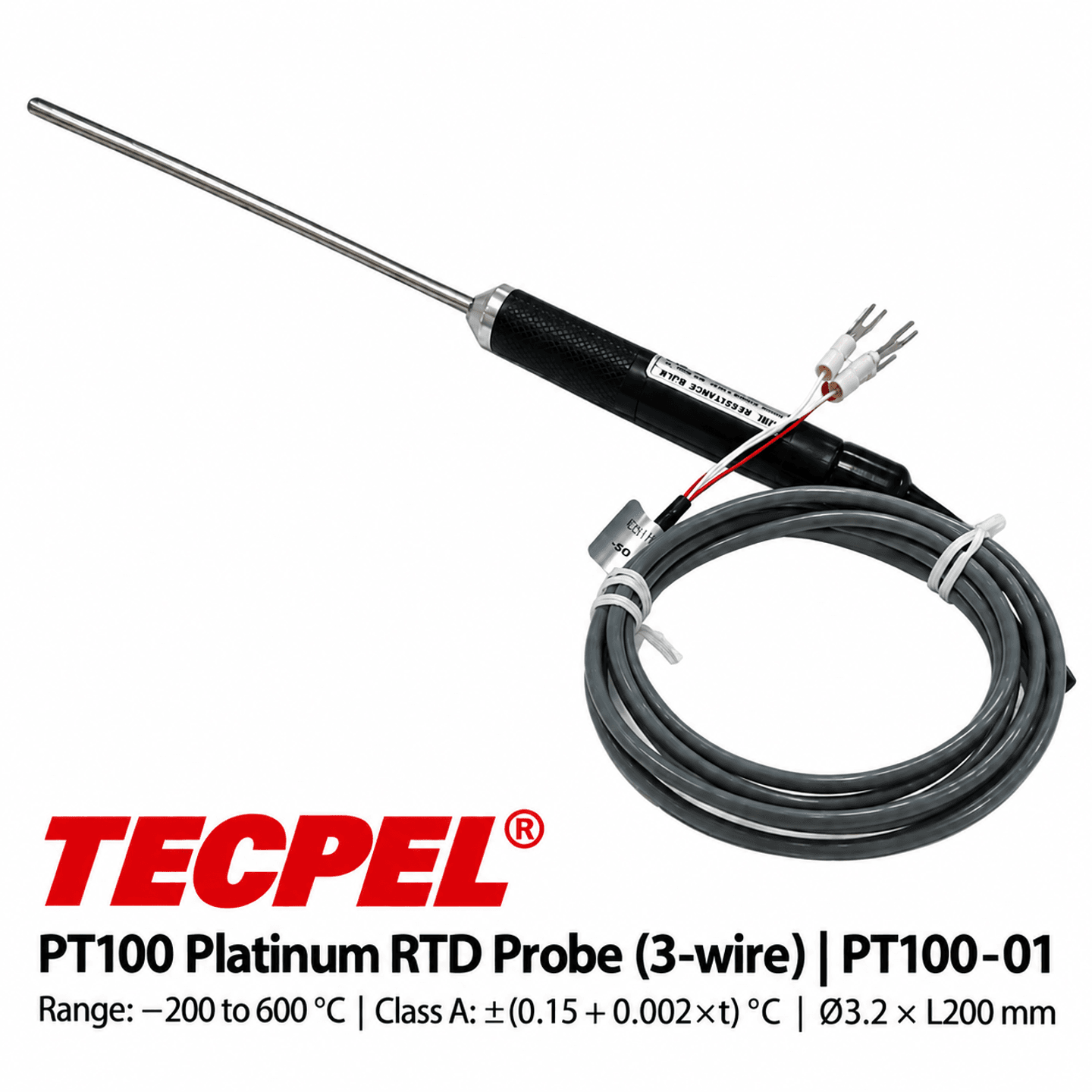

Platinum RTD Temperature Probe
Brand
TECPEL
|
Model
PT100-01
|
🇹🇼 Taiwan
Three-wire PT100 platinum RTD probe with a -200 to 600 °C range, Class A accuracy, and Ø3.2 × 200 mm probe dimensions.
Out of Stock
Views: 21
Description
The PT100-01 is a three-wire platinum RTD probe designed for precision temperature measurement. Its PT100 (100 Ω) sensing element covers a wide -200 to 600 °C range. Class A accuracy makes it suitable for industrial processes, laboratory testing, and temperature-control equipment that require stable measurements. The slim Ø3.2 mm, 200 mm-long probe reaches into measurement points and connects to compatible RTD temperature instruments through a three-wire configuration.
Specifications
- Sensor TypePT100 (100 Ω)
- Temperature Range-200 to 600 °C
- AccuracyClass A: ±(0.15 + 0.002 × Temperature) °C
- Sensor Rod DiameterØ3.2 mm
- Sensor Length200 mm
- Pipe DiameterØ3.16 mm
Features
- Class A AccuracyFor temperature measurements requiring high accuracy and stability
- Three-wire ConnectionThree-wire PT100 connection design
Attributes
- Product TypePlatinum resistance temperature probe (RTD)
- ApplicationsIndustrial processes, laboratory testing, and precision temperature control
