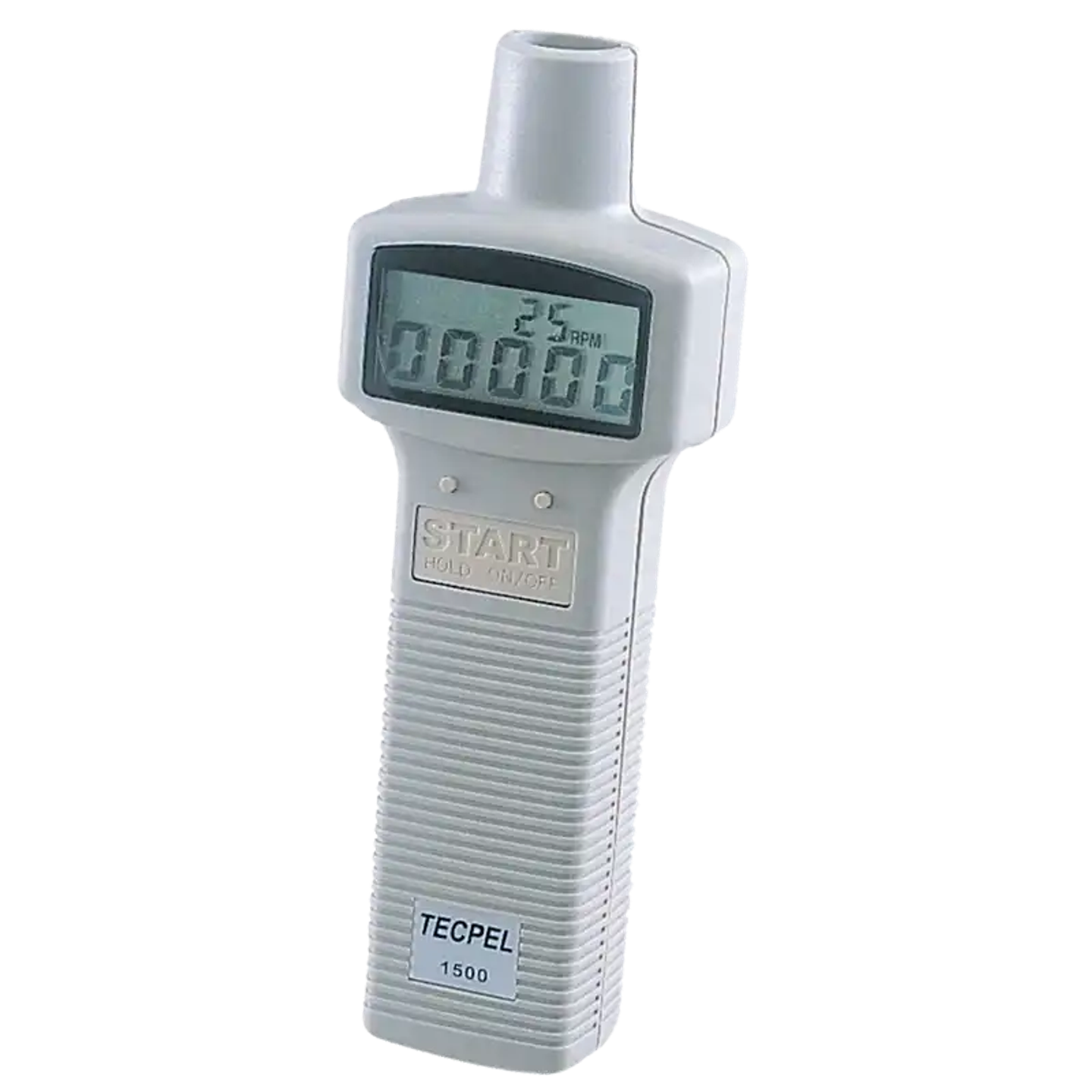

Optical Tachometer
Brand
TECPEL
|
Model
RM-1500
|
🇹🇼 Taiwan
Key features of the RM-1500 Optical Tachometer include:
- High accuracy and reliability
- Supports multiple speed units
- Non-contact measurement for safety and convenience
- Suitable for various industrial and laboratory applications
Price
NT$ 4,200
Out of Stock
Views: 568
Description
The RM-1500 Optical Tachometer is a high-precision measuring instrument designed for quick detection of rotational speeds. Its non-contact measurement method ensures safety while assessing rotating objects, without affecting their operational state. Suitable for various industrial and laboratory applications, the RM-1500 provides reliable speed data for motors, engines, and other rotating equipment.
Specifications
- Accuracy±(0.04%+2 RPM)
- Measuring Range10.00~99,999 RPM
- Frequency0.2~2,000 RPS
- m/min1.000~2,999.9 m/min
- ft/min4.00~10,000 /min
- yard/min2.00~3,000 /min
Features
- Crystal Oscillator4MHz
- SpecificationRPM / RPS / m/min / ft/min / yard/min
- measurement5~30mm
- Resolution0.01 RPM ／ 0.001 m/min ／ 0.01 ft/min ／ 0.01 yard/min ／ 0.001 Hz
Attributes
- Operating Temperature0~50°C / lower than 70%RH without dew。
- Storage Temperature0~50 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyPhotoelectric type: about DC153mA, Contact type: about DC10mA
- Dimensions172 x 63 x 36 mm
- Weight190g (Battery including)
- AccessoriesCarrying box, Reflective paper, Manual
