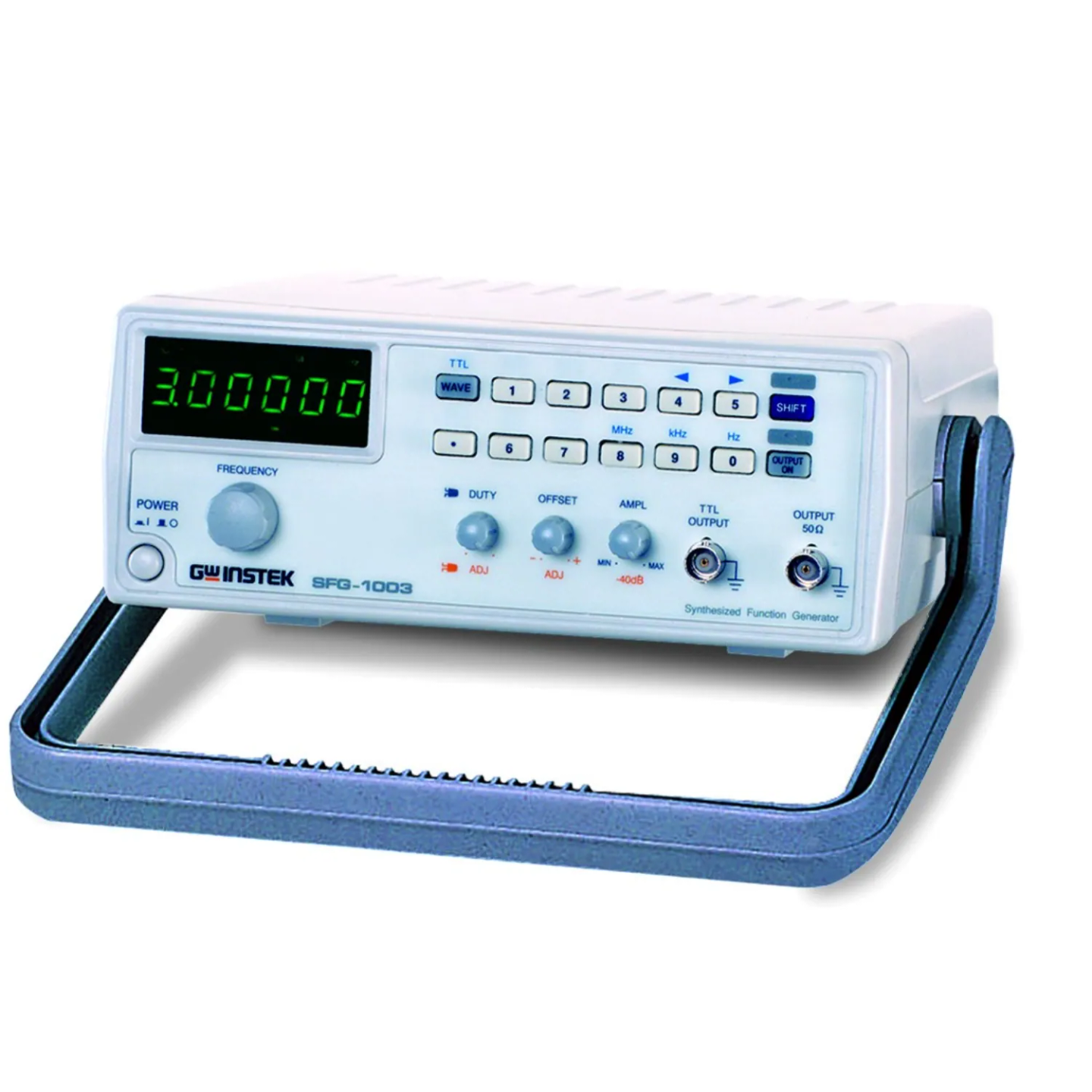

3MHz DDS Function Signal Generator
Brand
GWINSTEK
|
Model
SFG-1003
|
🇨🇳 China
High precision and stability in signal output
Capable of generating multiple waveforms (sine, triangle, square)
Frequency range up to 3MHz to meet various testing needs
Single-channel output design for convenient and flexible use
Suitable for electronic testing, signal processing, and scientific research
Out of Stock
Views: 596
Description
The SFG-1003 3MHz DDS Function Signal Generator is designed with advanced DDS (Direct Digital Synthesis) technology and FPGA chips, providing high precision and stability in output. It can generate various waveforms such as sine, triangle, and square waves, making it widely applicable in electronic testing, signal processing, and scientific research, catering to users' needs for different frequencies and amplitudes.
Specifications
- Accuracy6digitsLED
- Sound Frequency3MHz
- Channelssingle channel
- Amplitude Range10Vp-p
- Linearity98% 0.1~100k Hz; 95% 100k~1M Hz
- Sine Wave0.1~3M Hz, ±20 ppm
- Triangle Wave0.1~1M Hz, ±20 ppm
- Square Wave0.1~3M Hz, ±20 ppm
Features
- Signal Output3Vp-p
- Frequency3MHz
Attributes
- Operating Temperature0~40 °C / Humidity <90% (non-condensing)
- Storage Temperature0~70 °C / Humidity <70% (non-condensing)
- Altitude Limit<2,000 meters
- Power Supply275 x 90 x 300 mm (W x H x D)
- DimensionsApprox. 2.5 kg
- WeightUser manual, power cord, signal output cable
- Accessories, Power Supply, signalOutput
