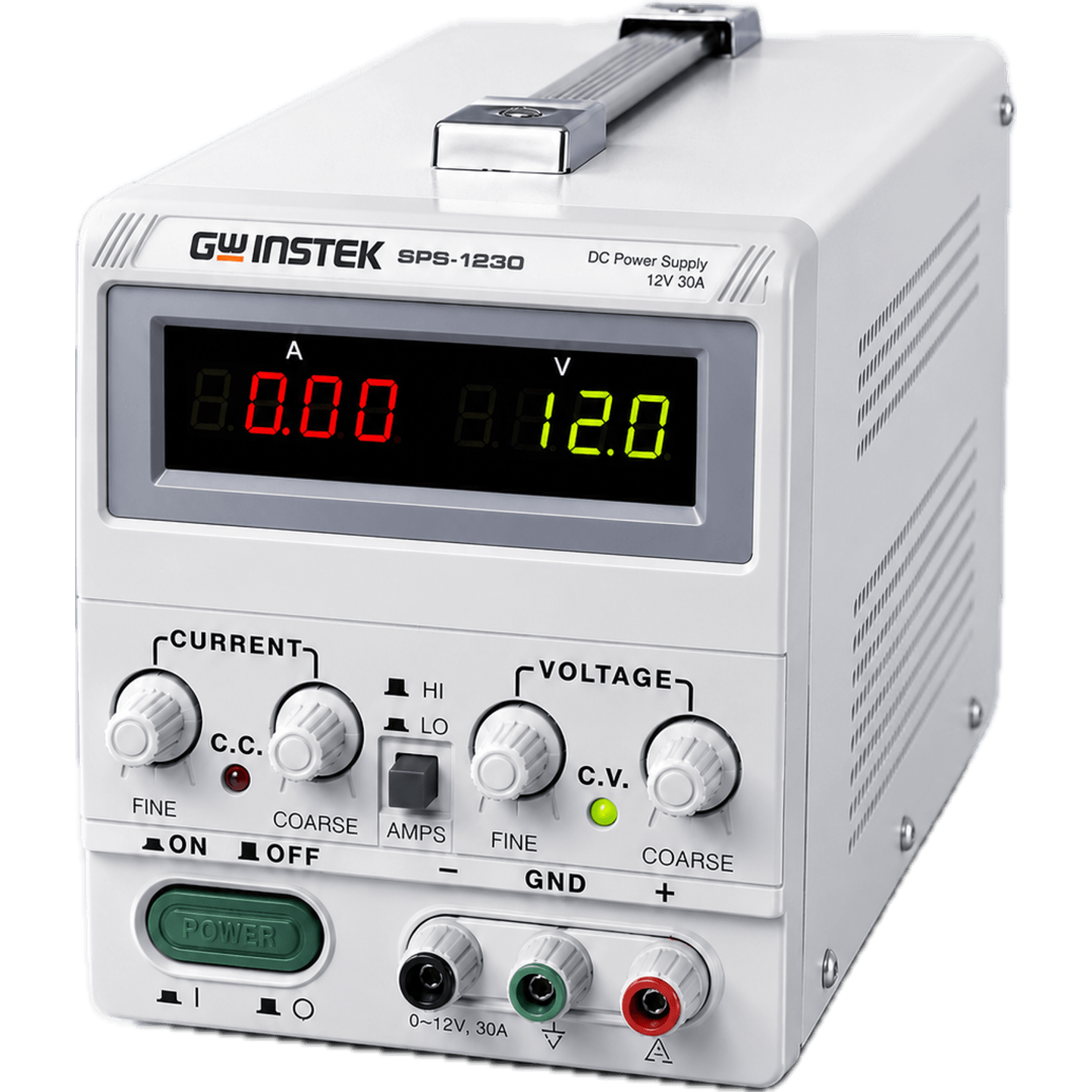

Switching DC Power Supply
Brand
GWINSTEK
|
Model
SPS-1230
|
🇨🇳 China
The SPS-1230 power supply features:
- Stable voltage and current outputs with high accuracy
- Suitable for precision power requirements
- Low ripple noise for improved testing accuracy
- Continuously adjustable output voltage and current for flexible applications
Price
NT$ 12,000
In Stock
Views: 727
Description
The SPS-1230 Switching DC Power Supply is designed for industrial applications, providing stable voltage and current outputs, making it suitable for various testing and laboratory environments. Its efficiency and low ripple noise characteristics make it an ideal choice for research laboratories and electronic manufacturing test lines.
Specifications
- Display<100 ppm/°C
- Output Voltage0 ~ 12V
- Output Current0 ~ 30A(, )
- Voltage Limit Regulation Rate3 1/2 digits 0.39inchLEDdisplay
- Voltage Load Regulation Rate±(0.5% + 2 digits)
- Current Limit Regulation Rate≦3mA
- Current Load Regulation Rate≦3mA
- Voltage Ripple≦5mVrms, 100mVp-p (20Hz~20MHz)
- Current Ripple≦30mArms
- Response Time≦500μS (50%, min. 0.5A)
- Temperature Coefficient≦100 ppm/°C
- Accuracy±(0.5% + 2 digits)
- Insulation Resistanceand: 20MΩ or (DC 500V). andPower Supply: 30MΩ or (DC 500V)
Features
- Channels< 5mV, < 5mV
- Output Control< 3mA, < 3mA
- Operating Mode< 30mArms
- Output Characteristicsless than20MΩ(DC 500V)
- Overload Protectionand Protection
Attributes
- Operating Temperature128mm (W) x 145mm (H) x 285mm (D)
- Storage TemperatureApprox. 3.2kg
- Altitude LimitAC 115V/230V ±15%, 50/60Hz
- Power Supply< 500μS (for 50% load variation, minimum load 0.5A)
- Dimensions128(W) x 145(H) x 285(D) mm
- Weightapprox. 3.2 kg
- AccessoriesPower Supply, x1
