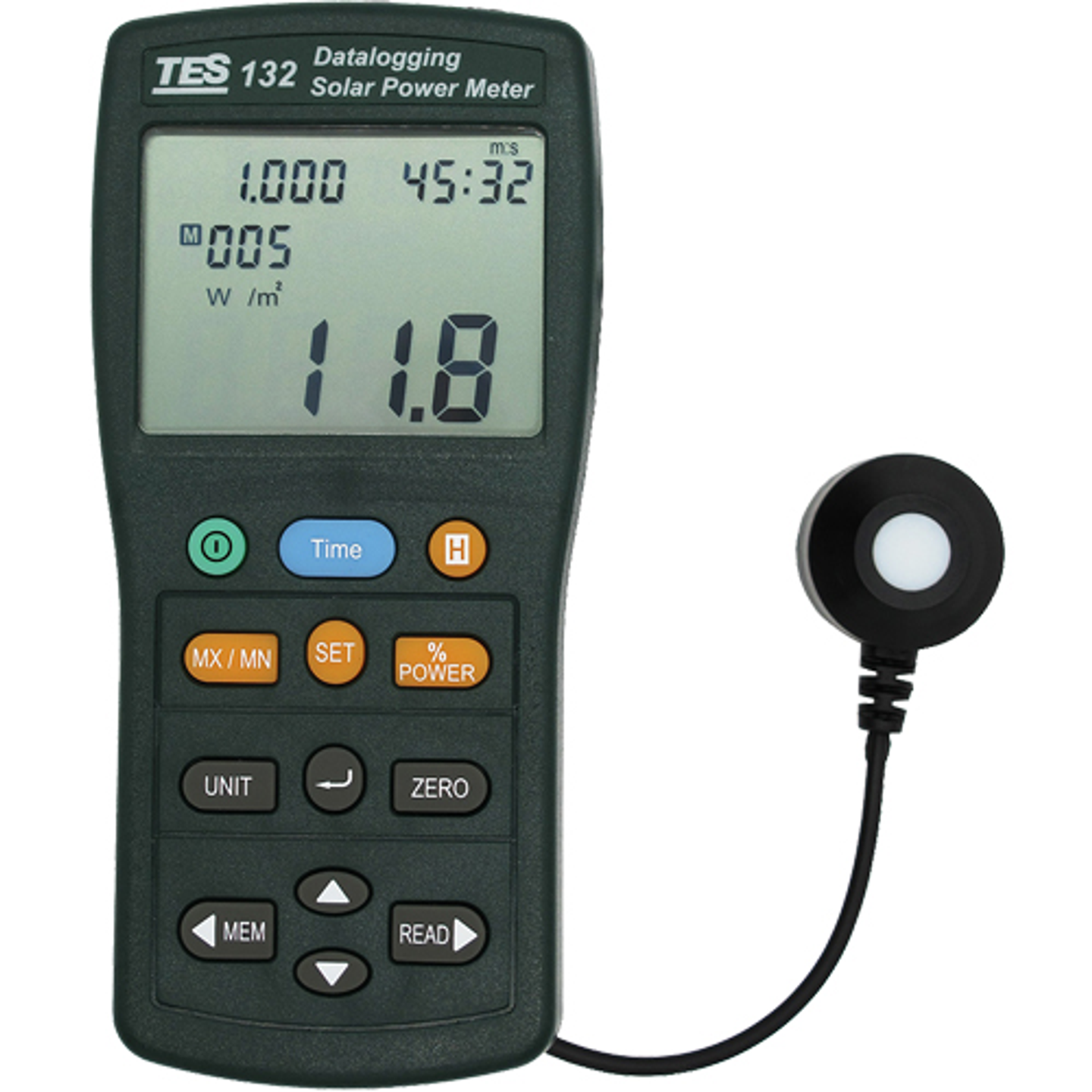

Solar Power Meter
Brand
TES
|
Model
TES-132
|
🇹🇼 Taiwan
Key features of the TES-132 include:
- Wide spectral range suitable for various testing environments
- Unique cosine correction function for accurate measurement
- Automatic material transmittance measurement for user convenience
- Support for multiple measurement unit options
- Data hold function for easy reading
- Maximum/minimum value display for data analysis
- Built-in data logging functionality with microSD storage support
Out of Stock
Views: 555
Description
The TES-132 Solar Power Meter is a high-performance measuring instrument designed for various applications including agricultural solar radiation measurement, solar energy research, and physics optics laboratories. It features a broad spectral range and excellent long-term stability, providing precise measurements of solar energy and material transmittance. With built-in data logging capabilities, it allows users to perform data analysis and long-term monitoring, making it an ideal choice for industrial applications.
Specifications
- DisplayLCDdisplay, 4digits
- Measuring Range200.0 W/m2 ,2000 W/m2
- Resolution0.1 W/m2 ,1 W/m2
- Light Intensity400 ~ 1000nm
- Accuracy±10 W/m2 or ±5% max.
- Temperature Coefficient±0.38 W/m2/℃ 25℃
- Specification< 5% ( < 60° )
- Sampling Rateapprox.1 /s
- and99records
- Data LoggingmicroSD CARD 2GB
- Power Supply6 AAA 1.5V
- Battery Lifeapprox.50hours
- Operating Temperature0℃to50℃less than80%RH
- Dimensions150x72x35 mm / approx.320g
Features
- SpecificationYes
- Specification Yes
- Cosine CorrectionYes
- Auto MeasurementYes
- Measurement UnitW/m2orBtu / (ft2 x h)
- Data HoldYes
- Max/MinYes
- Data LoggingYes
Attributes
- Operating Temperature0℃ to 50℃, less than 80% RH
- AccessoriesUser manual, 6 AAA 1.5V batteries, USB cable, CD software
- Dimensions150(L)x72(W)x35(T) mm / Approx. 320g
