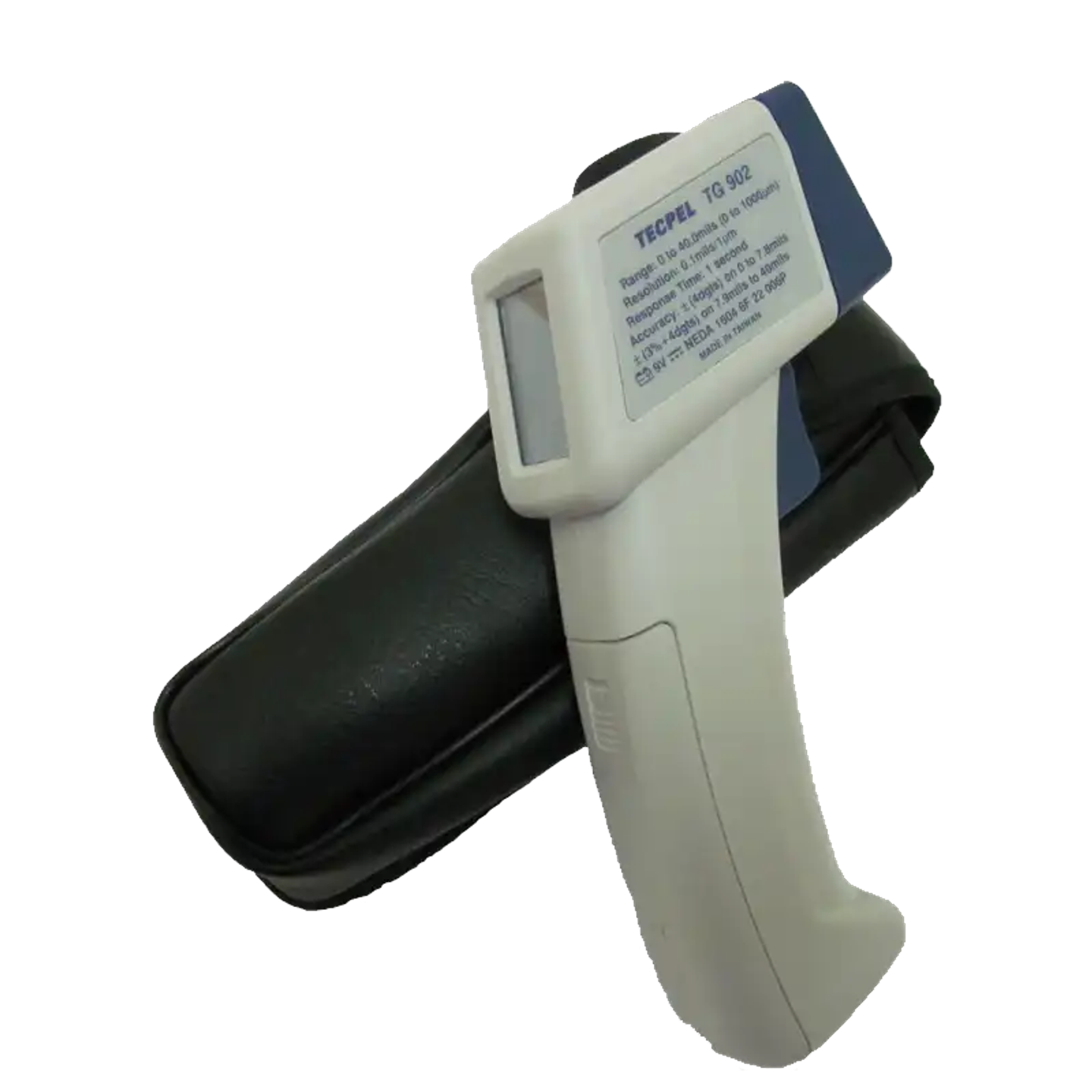

Digital Coating Thickness Measuring Instrument

Brand TECPEL | Model TG-902 | 🇹🇼 Taiwan
Digital Coating Thickness Measuring Instrument
• Measures ferromagnetic metals (iron) and non-ferromagnetic metals (aluminum, etc.) • Measurement range of 0~1,000 μm (0~40 mils) • High accuracy of ±10 μm (for 0~199μm) • Resolution of 1μm for detailed data • Fast response time of just 1 second • Automatic shutdown feature to save power
Price NT$ 4,725
Out of Stock
Views: 584

Description

The TG-902 Digital Coating Thickness Measuring Instrument is designed for measuring the thickness of coatings on metal surfaces, widely used in automotive painting, sheet metal, and other spray applications. This instrument effectively measures the thickness of coatings on ferromagnetic metals (such as iron) and non-ferromagnetic metals (such as aluminum), providing accurate data to ensure coating quality, suitable for industrial and maintenance fields.

Specifications

  • Accuracy±10 0~199μm
  • Measuring Range0~1,000 μm (0~40 mils)
  • Applicable Metal/ (... )
  • Resolution1μm
  • Response Time1s

Features

  • Auto Power Offapprox. 10s

Attributes

  • Operating Temperature0~50°C / lower than 75%RH without dew。
  • Storage Temperature0~60°C / lower than 80%RH without dew。
  • Altitude LimitLower than 2,000 meters
  • Power SupplyDC 9V battery (NEDA 1604)
  • Working PowerLess than 6μA
  • Battery LifeApprox. 9 hours
  • Dimensions148 x 105 x 42 mm
  • WeightApprox. 157 g (Battery including)
  • AccessoriesMetal sheet (iron), Metal sheet (aluminum), Standard sheet, Manual
