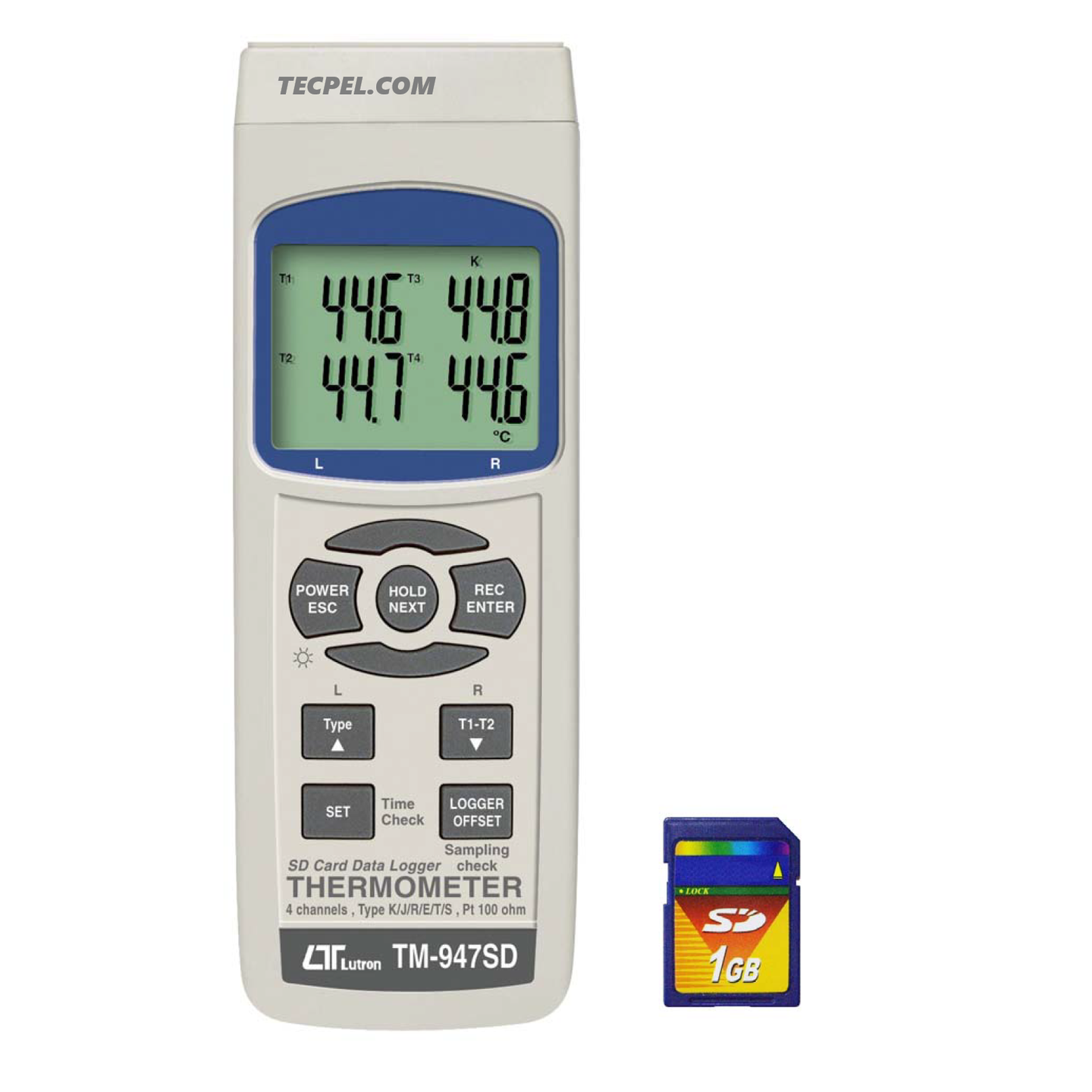

TM-947SD 4-Channel Data logger Thermometer
Brand
LUTRON
|
Model
TM-947SD
|
🇹🇼 Taiwan
The TM-947SD is a multifunctional 4-channel thermometer and data logger with the following features:
- Supports K/J/T/E/R/S thermocouples and PT100 sensors
- Four-channel display: simultaneously shows temperatures T1, T2, T3, T4
- Displays temperature difference T1-T2
- Wide temperature measurement range suitable for various applications
- Allows simultaneous use of two thermocouples for measurement
- Thermocouple temperature error adjustment function
- PT100 temperature results can be displayed independently
- Convenient temperature unit switching (°C/°F)
- Backlight display for easy reading in dark environments
- Supports data storage on SD memory card
Price
NT$ 4,650
Out of Stock
Views: 758
Description
The TM-947SD 4-Channel Data Logger Thermometer is a versatile measuring instrument that instantly records and saves data to an SD memory card, allowing users to download the information to Excel for analysis. This device supports multiple temperature measurement methods, including K/J/T/E/R/S thermocouples and PT100 sensors, featuring four windows that simultaneously display different temperature readings and temperature differences, ensuring high accuracy and visibility. The backlight display function is suitable for low-light environments, and the temperature unit can be easily switched between °C and °F.
Specifications
- Temperature RangeType K: -100.0~1300℃, Type J: -100.0~1200℃, PT100: -199.9~850.0℃
- thermocouple2 thermocouple
- Temperature UnitCelsius (deg C) / Fahrenheit (deg F)
- Displaydisplay
- Error AdjustmentK/J/T/E/R/Stypethermocouple
- BacklightYes
- SpecificationSD
Features
- supportsthermocoupleandPT100K/J/T/E/R/StypethermocoupleandPT100
- displaydisplayT1, T2, T3, T4
- display displayT1-T2
- Temperature RangeType K: -100.0~1300℃; Type J: -100.0~1200℃; PT100: -199.9~850.0℃
- thermocouple measurementthermocouple
- Error Adjustmentthermocouple
- PT100 displayPT100 display
- Measurement Unit℃/℉
- Backlightincludesbacklight,
- Data LoggingsupportsSD
Attributes
- Operating Temperature0~50°C / lower than 80%RH without dew。
- Storage Temperature-10~60°C / lower than 80%RH without dew。
- Altitude LimitLower than 2,000 meters
- Power Supply9V battery
- Battery LifeApprox 100 hours
