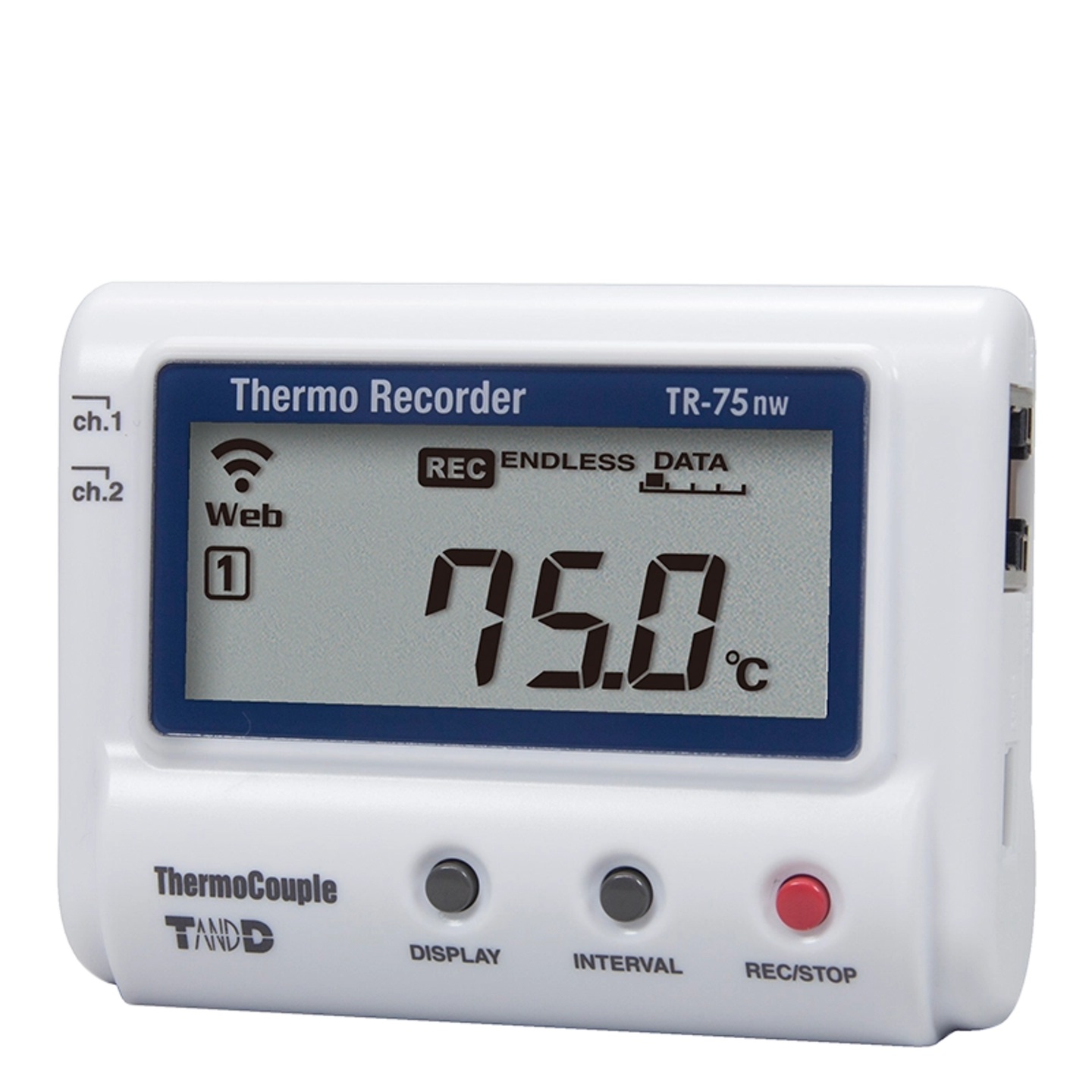

Thermocouple Temperature Data Logger
Brand
T&D
|
Model
TR-75nw
|
🇯🇵 Japan
Stores up to 8,000 data points and automatically uploads to cloud services for easy access via computer, tablet or mobile.
Real-time email alerts notify managers, ensuring immediate monitoring of data.
Supports multiple temperature unit conversions to meet various needs.
Price
NT$ 9,975
Out of Stock
Views: 690
Description
The TR-75nw is a network-type thermocouple temperature data logger designed for high reliability in temperature monitoring applications. This device automatically uploads data to cloud services, allowing users to access historical data anytime and anywhere via computer or mobile apps. It also features an email alert function that notifies managers in real-time, ensuring that temperature changes are not overlooked.
Specifications
- Sensor TypeThermocouple Type K, J, T, E, S, R
- Display Counts-199 ~ 1,760 °C
- Type K-199 to 1,370 °C
- Type J-199 to 1,200 °C
- Resolution-199 to 400 °C
- Type E-199 to 1,000 °C
- Temperature Range-50 to 1,760 °C
- AccuracyK, J, T, E: ±(0.5+0.003×t)℃; S, R: ±(1.5+0.003×t)℃
Features
- Acquisition ModeCyclic Recording/Single Recording
- Recording Capacity8,000 recordsData
- Recording Interval1s ~ 60min(15segments )
- Separate Probe1 ~ 24 (15segments )
- Cloud ServiceTandD Ｗebstorage
- Alarm Function, displaydisplay ALM, ( APP)
- Specificationbattery lifereaches10
- モード18か
Attributes
- Operating Environment-10 ~ 50°C / Less than 90 %RH, non-condensing.
- Storage Environment0 ~ 40°C / Less than 70 %RH, non-condensing.
- Altitude LimitBelow 1,000 meters
- Data TransmissionWired LAN Communication: 100BASE-TX/10BASE-T (RJ45 Connector) Protocol: HTTP (*4), DHCP, DNS, USB. Communication : USB 2.0 (Mini-B connector)
- Power Supply1.5V AA alkaline battery x 2 / USB power supply / PoE power supply
- Battery LifeApprox. 7 months (hourly transmission)
- Dimensions58mm × 78mm × 26mm
- WeightApprox. 55g (excluding batteries)
- AccessoriesAA alkaline batteries x2, instruction manual
