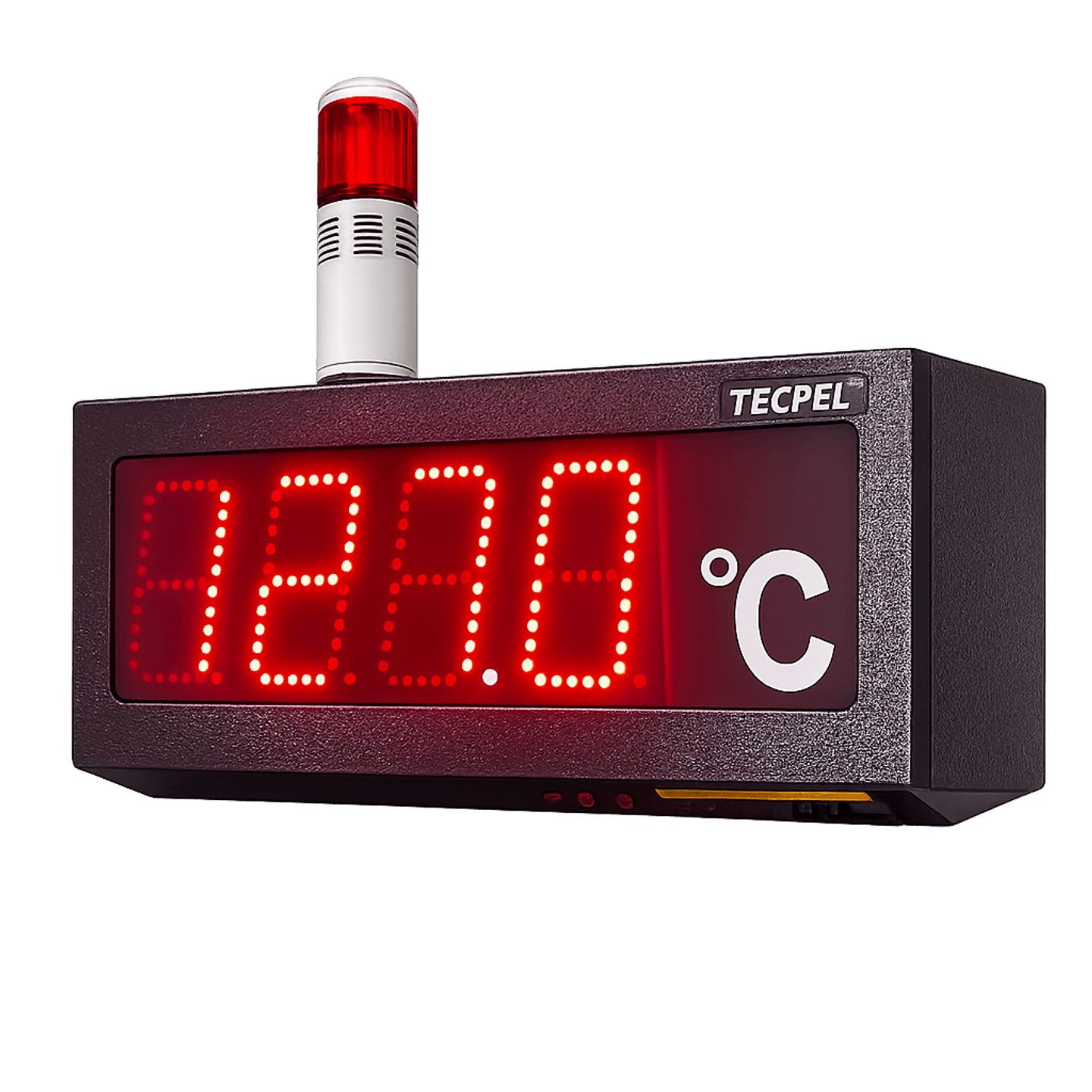

Waterproof Large Digital Display Board
Brand
TECPEL
|
Model
TRH-3310CWHL-PT
|
🇹🇼 Taiwan
The TRH-3310CWHL-PT is an industrial-grade large digital display board with the following features:
- Waterproof and dustproof design, suitable for harsh environments
- High-precision real-time temperature and humidity data display
- Supports remote monitoring functions
- Data integration to enhance automation system efficiency
In Stock
Views: 550
Description
The TRH-3310CWHL-PT Waterproof Large Digital Display Board is designed for high humidity and dusty environments such as factories, processing plants, and boiler rooms. It offers high brightness display and precise temperature and humidity measurements. With remote monitoring capabilities, it allows for real-time data access, making it an essential component in modern automation systems.
Specifications
- Sensor Typesensor
- Operating Temperature–20°C ~ 99.9°C
- Humidity5%RH ~ 99.9%RH
- Resolution0.1°C / 0.1%RH
- Response Time3 /s or 0.5 /s
- Specification±1% ±1
- Power SupplyDC 24 V, 100 mA
Features
- standardsignal0–1 VDC, 0–5 VDC, 0–10 VDC, 0–10 mA, 4–20 mA
- Safety RatingYes
- supportsYes
- Stability< ±100 ppm / range / °C
Attributes
- Dimensions100 × 241 × 61 mm
- Weight2.3 kg
- Operating Temperature–20°C ~ 60°C, 5%RH ~ 90%RH (non-condensing)
- Installation MethodTable-top, Hanging O-ring, Wall-mount
- Body MaterialBlack aluminum extrusion housing
