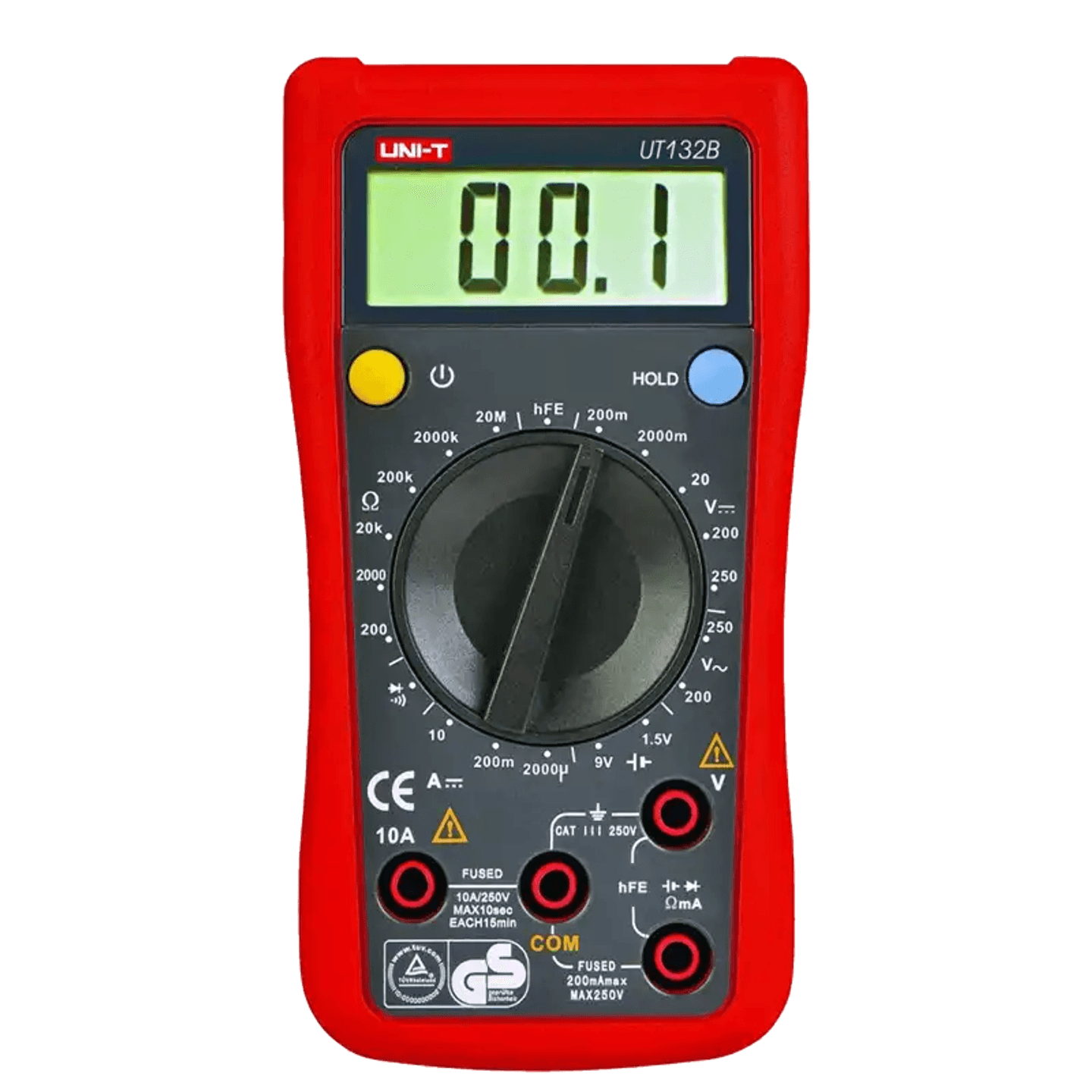

Digital Multimeter
Brand
UNI-T
|
Model
UT-132B
|
🇨🇳 China
Basic measurement functions, battery testing mode, overload protection, suitable for beginners.
Measures DC voltage, DC current, AC voltage, and resistance, with 1.5V and 9V battery testing capabilities.
Out of Stock
Views: 17
Description
The UT-132B is an entry-level digital multimeter featuring a 2,000 count display. Its user-friendly design and comprehensive functionalities make it ideal for beginners and for maintaining and repairing simple circuits or electrical equipment. This multimeter is a popular choice among users, offering accurate measurements and overload protection to meet basic measurement needs. Although this model has been discontinued, its reliability and practicality remain widely appreciated.
Specifications
- Display Count1,999 counts
- DC Voltage (DCV)200mV / 2000mV / 20V / 200V / 600V
- DC Current (DCA)2000μA / 200mA / 10A
- AC Voltage (ACV)200V / 600V
- Resistance (Ω)200Ω / 2000Ω / 20kΩ / 200kΩ / 2000kΩ / 20MΩ
- Battery Test1.5V / 9V
- DC Voltage Accuracy±(0.5%+2)
- DC Current Accuracy±(1%+2)
- AC Voltage Accuracy±(1.2%+3)
- Resistance Accuracy±(0.8%+5)
- Battery Accuracy±(1%+2)
Features
- Display Count1999 counts
- DC Voltage±(0.5%+2)
- DC Current±(1%+2)
- AC Voltage±(1.2%+3)
- Resistance±(0.8%+5)
- Battery Test1.5V / 9V
- Battery Accuracy±(1%+2)
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 9V Battery X1
- Dimensions72mm × 137mm × 35mm
- WeightApprox. 200g (Battery including )
- AccessoryTest lead、 battery、Manual
