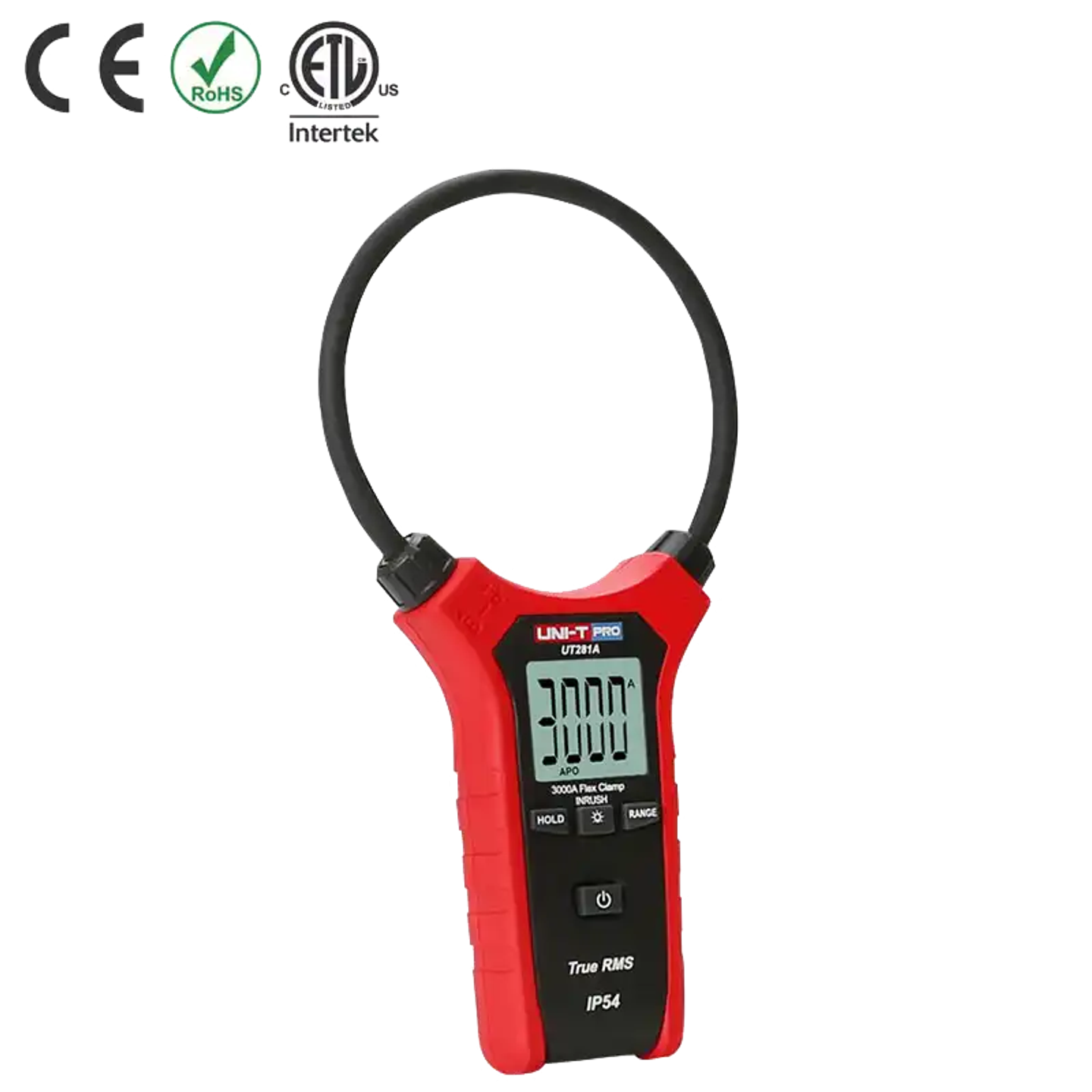

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-281A
|
🇨🇳 China
• Measurement range: AC current up to 3,000 A
• Rogowski flexible coil design for various large cables
• Accuracy of ±(1% + 3°C)
• Protection grade IP54, drop protection approximately 2 meters
• Sampling rate up to 3 times per second
• Frequency range: 45~500 Hz
Price
NT$ 3,150
Out of Stock
Views: 500
Description
The UT-281A AC/DC Digital Clamp Meter is a true RMS measuring instrument designed for high current applications. Its flexible clamp can easily fit around various large cables, utilizing Rogowski coil technology to measure AC currents up to 3,000A, making it suitable for industrial and power applications. With an IP54 protection rating and robust drop protection, it operates reliably even in harsh environments.
Specifications
- Display Counts±(1% + 3°C)
- Jaw OpeningØ254 mm
- AC Current30 / 300 / 3,000 A
- Frequency45~500 Hz
- Inrush Current0.5~3,000 A
- Sampling Rate0.01A
Features
- True RMSIP54
- Data Holdapprox. 2m
- BacklightYes
- Low Battery IndicatorYes
- Auto Power OffYes
- Protection RatingIP54
- Drop Protectionapprox. 2m
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~50 °C / lower than 50%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply9v Battery (6F22)
- Dimensions300 x 150 x 55 mm
- Weight220g
- AccessoriesManual
