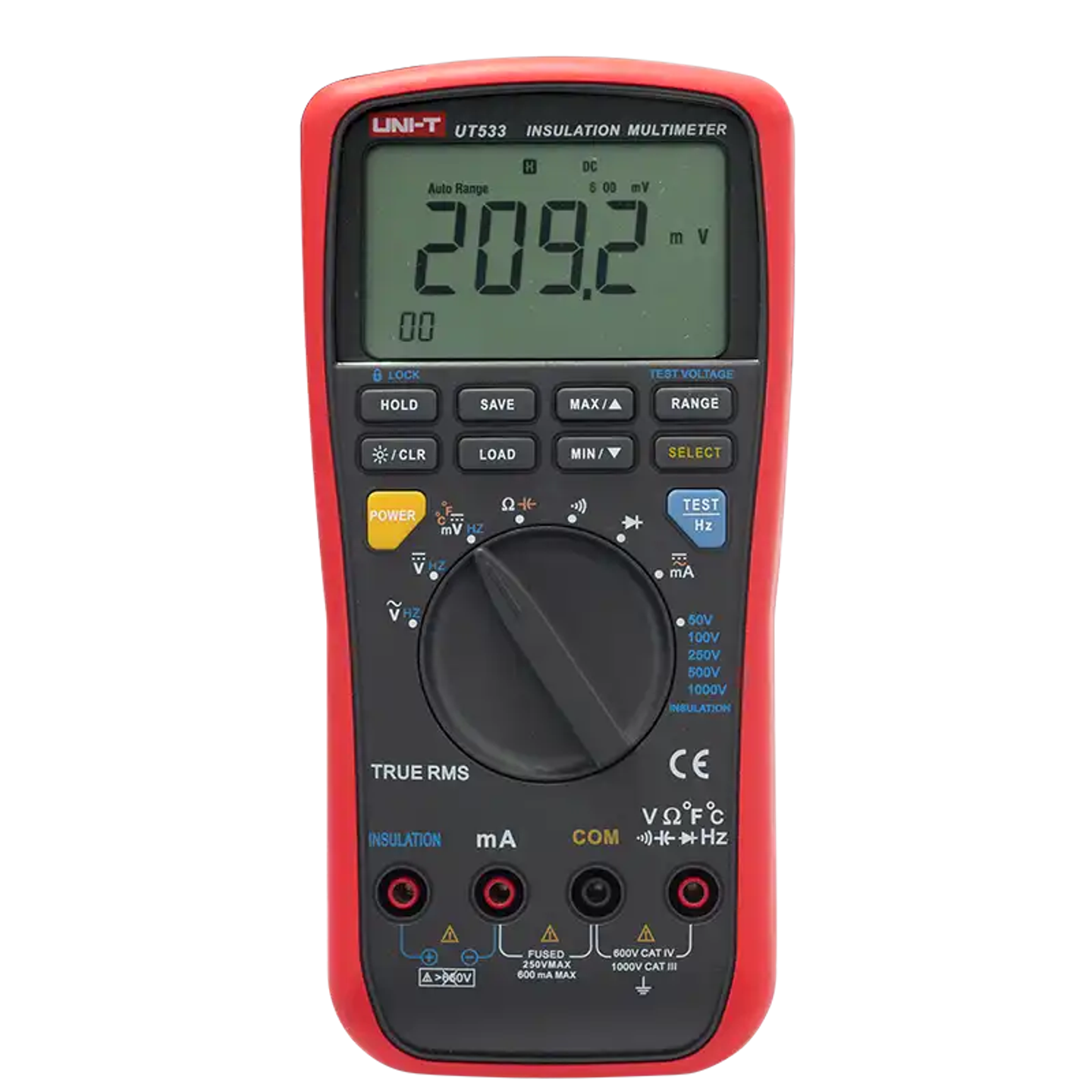

Insulation Resistance Tester
Brand
UNI-T
|
Model
UT-533
|
🇨🇳 China
• Provides four test voltages: 50V, 250V, 500V, and 1,000V
• Wide measurement range from 0.1MΩ to 2.00GΩ
• Capable of measuring DC and AC voltage
• Can measure both DC and AC current
• Built-in data recording for up to 99 entries
• Measures capacitance from 10nF to 100μF
• Operating temperature range from -40°C to 537°C
Price
NT$ 4,725
Out of Stock
Views: 1
Description
The UT-533 Insulation Resistance Tester is a multifunctional high-voltage testing instrument capable of outputting up to 1,000 volts to measure the insulation resistance of various objects. In addition to insulation testing, the UT-533 also functions as a general multimeter, measuring DC and AC voltage, current, and capacitance, making it an ideal choice for electricians and engineers conducting electrical safety tests.
Specifications
- 50V 測試電壓0.1M~50M Ω <±(3%+5)>
- 100V 測試電壓0.1M~100M Ω <±(3%+5)>
- 250V 測試電壓0.2M~99.9M Ω / 100M~250M Ω <±(3%+5)>
- 500V 測試電壓0.5M~99.9M Ω / 100M~500M Ω <±(3%+5)>
- 1,000V 測試電壓4.0M~99.9M Ω / 100M~999M Ω / 1.00G~2.00G Ω <±(5%+5)>
- 直流電壓60m / 600m / 6 / 60 / 600 / 1,000 V <±(0.09%+6)>
- 交流電壓6 / 60 / 600 / 1,000 V <±(1%+3)>
- 直流電流60m / 600m A <±(1.0%+2)>
- 交流電流60m / 600m A <±(1.5%+2)>
- 電阻600 / 6k / 60k / 600k / 6MΩ / 60M Ω <±(0.9%+2)>
- 電容10n / 100n / 1μ / 10μ / 100μ F <±(3%+5)>
- 頻率60 / 600 / 6K / 60K / 600K <±(0.1%+3)>
- 工作��度-40~537 °C (-40~998 °F) <±(1.0%+10)>
Features
- 資料記錄99 筆
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 1.5V Battery (AA) x 6
- Dimensions97 x 203 x 46 mm
- WeightApprox. 2,000 g
- AccessoryBattery, Carrying Case, CD, Alligator clip test lead, Manual
