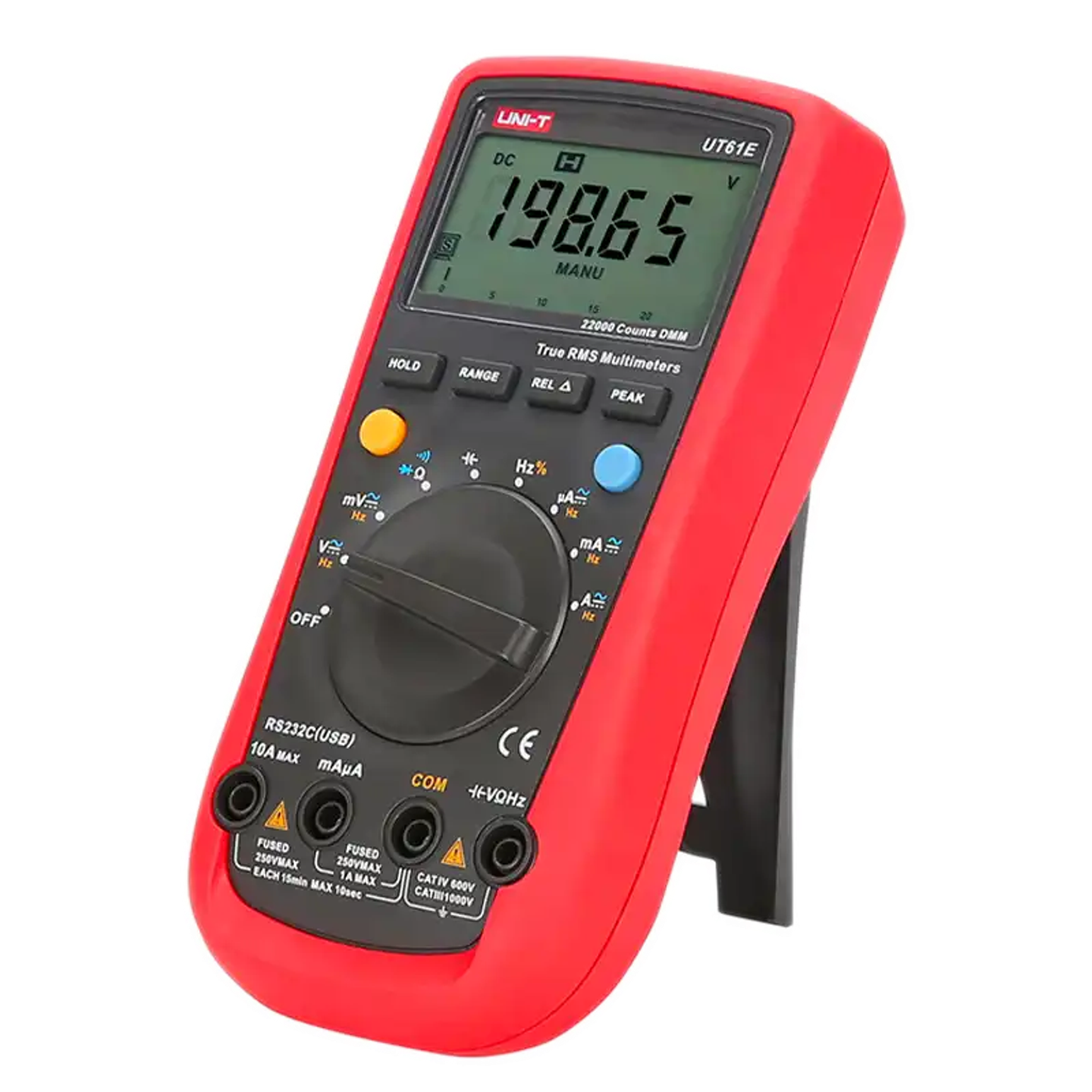

Digital Multimeter
Brand
UNI-T
|
Model
UT-61E
|
🇨🇳 China
Features True RMS measurement,
USB connectivity,
Ideal for beginners,
Automatic range selection,
Continuity testing,
Backlight display,
Max/Min value capture,
Relative value mode,
Diode testing,
Duty cycle measurement.
Out of Stock
Views: 1
Description
The UT-61E Digital Multimeter is a pocket-sized device with a display of up to 22,000 counts, featuring easy operation and comprehensive measurement functions, making it ideal for beginners as well as for routine maintenance and repair of electrical circuits and equipment. This multimeter includes True RMS measurement and USB connectivity, making it a preferred choice among users. Although this model has been discontinued, its performance remains reliable.
Specifications
- 直流電壓220m/2.2/22/220/1,000 V
- 直流電流220μ/2200μ/22m/220m/10 A
- 交流電壓220m/2.2/22/220/750 V
- 交流電流220μ/2200μ/22m/220m/10 A
- 電阻220/2.2K/22K/220K/2.2M/22M/220M Ω
- 電容22nF/220nF/2.2μF/22μF/220μF/2.2m/22m/220m F
- 頻率10-10M Hz
- 工作溫度-40~1,000 °C
Features
- 頻率45~10k Hz
- 二極體測試✓
- 自動換檔✓
- 導通測試✓
- 占空比0.1% ~ 99.9%
- 最大/最小值✓
- 相對值模式✓
- 背光顯示✓
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 9V Battery X1
- Dimensions180 X 87 X 47 mm
- WeightApprox. 370 g (Battery including)
- AccessoryTest lead、 battery、Conversion Seat、USB Cable、Software、Manual
