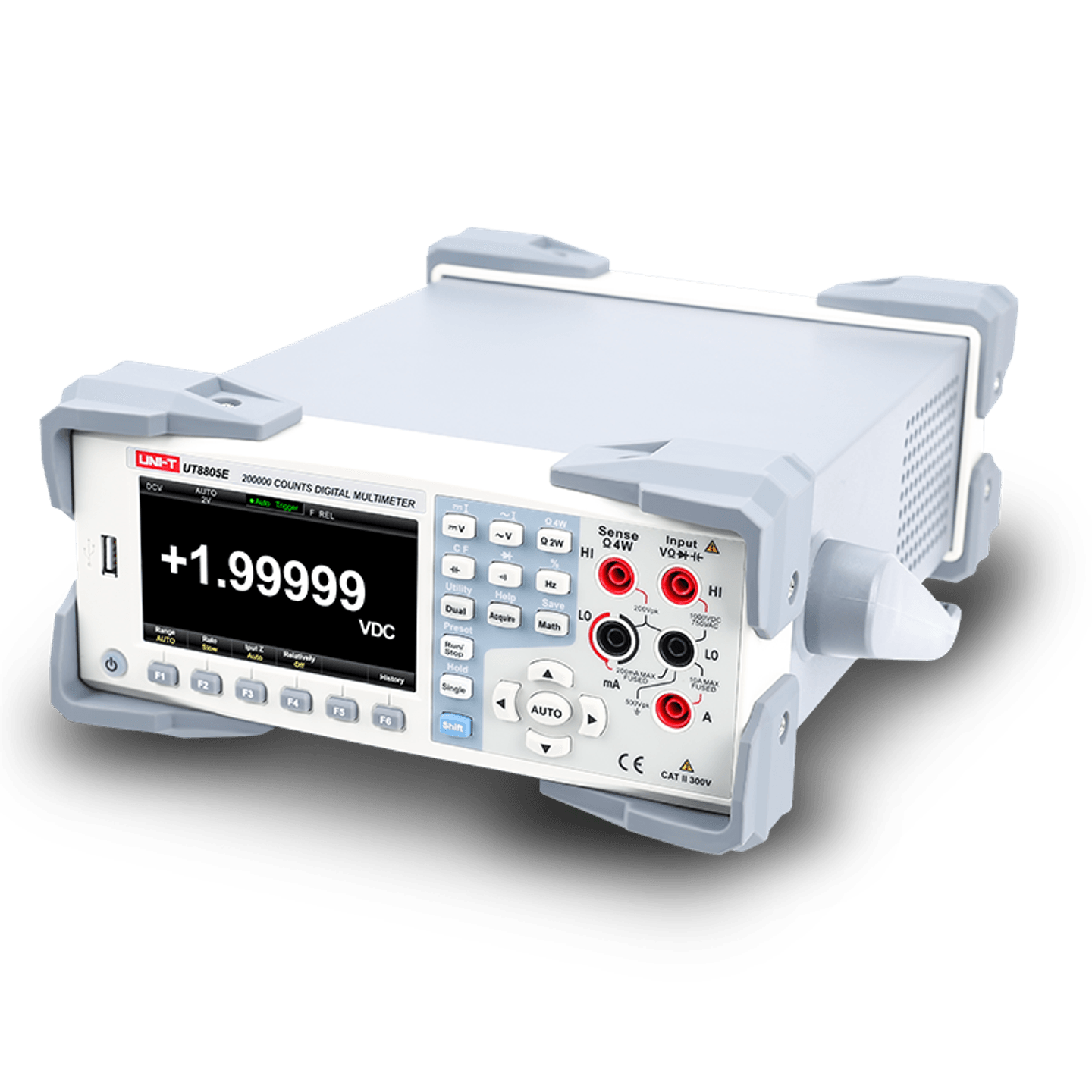

UT8805E 5½-Digit Benchtop Digital Multimeter

Brand UNI-T | Model UT8805E | 🇨🇳 China

5½ Digit 200,000 Counts True RMS 5,000 rdgs/s 100kHz 4-Wire Resistance Temperature 1GB Flash USB LAN RS-232C SCPI

A 200,000-count True RMS benchtop DMM with up to 5,000 readings/s, a 4.3-inch color display, 1GB storage, temperature measurement, and USB/LAN/RS-232 connectivity.

Downloads

UT8805E Data Sheet V1.3 V1.3 (2024-10-29)UT8805E User Manual V1.1 V1.1 (2024-10-29)UT8805E User Manual (German) V1.0 V1.0 (2024-10-29)UT8805E Programming Manual V1.1 V1.1 (2024-10-29)

UT8805E Software V1.09 V1.09 (2024-05-09)

Out of Stock

The UT8805E is a 5½-digit benchtop digital multimeter for R&D, manufacturing, calibration, service, and education, with up to 200,000 counts and 5,000 readings/s. It measures True RMS AC/DC voltage and current, 2-wire and 4-wire resistance, capacitance, frequency, period, diode, continuity, RTD, and multiple thermocouple types. Analysis functions include Pass/Fail, relative, minimum, maximum, average, standard deviation, dB, and dBm. Its 4.3-inch TFT supports numeric, bar, trend, and histogram views. A 1GB NAND Flash, USB storage, USB Device/Host, LAN, RS-232C, and SCPI-compatible commands support data logging and automated test systems.

Display Resolution5½ digits; up to 200,000 counts
Display4.3-inch 480 × 272 TFT LCD
Reading rate2.5 / 10 / 5,000 readings/s
DC Voltage200mV, 2V, 20V, 200V, 1000V
One-year DC voltage accuracyBest ±(0.01% reading + 0.003% range) on 2V; ±(0.015% + 0.003%) on 200V/1000V
DC Current200μA, 2mA, 20mA, 200mA, 2A, 10A
AC voltage (True RMS)200mV, 2V, 20V, 200V, 750V
AC current (True RMS)2mA, 20mA, 200mA, 2A, 10A
True RMS bandwidth20Hz to 100kHz for AC voltage; up to 10kHz for AC current
Resistance200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 10MΩ, 100MΩ; 2-wire/4-wire
Capacitance2nF, 20nF, 200nF, 2μF, 20μF, 200μF, 2mF
Frequency20Hz to 1MHz
Period1μs to 0.05s
ContinuityFixed 2kΩ range; adjustable threshold; buzzer
Diode Test0 to 4V
RTD temperaturePt100/Pt385, -200°C to 660°C
Thermocouple TypeB, E, J, K, N, R, S, and T with built-in cold-junction compensation
Thermocouple rangeType-dependent, -270°C to 1820°C (type B: 0°C to 1820°C)
Memory Function10,000 volatile readings; 1GB NAND Flash; external USB storage supported
CommunicationUSB Host, USB Device, 10/100Mbit LAN, and RS-232C

Auto-ranging True RMSFully automatic ranging with True RMS AC voltage and current
Math and statisticsMin/Max/Average, standard deviation, relative, dB, and dBm
Four display modesNumeric, bar graph, trend graph, and histogram
Dual displayShows frequency together with AC voltage or current
Pass/Fail comparisonConfigurable upper and lower limits for rapid decisions
Data LoggingStores settings and readings in internal Flash or on a USB drive
Temperature and sensorsRTD, thermocouple, and DCV/DCI/resistance/frequency-output sensors
SCPI remote controlUSBTMC, VXI-11, and mainstream multimeter SCPI command compatibility
External trigger and VMCRising/falling edge, 6ms to 10000ms delay, and VMC output
Bilingual menus and helpBuilt-in Chinese/English menus and help system

Dimensions (W×H×D)260 × 116 × 332 mm
Weight4.4 kg
AC input90–110V / 110–132V at 45–440Hz; 200–240V / 216–264V at 45–66Hz
Maximum power dissipation20W
Accuracy environment0–28°C <90% RH; 28–40°C <75% RH; 40–55°C <50% RH, non-condensing
Storage Environment-20°C to 70°C, <95% RH; run continuously for at least 7 days after high-humidity storage
Altitude≤2000m
ColorOff-white and grey
Safety RatingLow Voltage Directive 2014/35/EU; EN 61010-1:2010+A1:2019; EN IEC 61010-2-030:2021+A11:2021
EMC2004/108/EC; EN 61326-1:2013
Warm-up30 minutes
AccessoriesThree-core power cord, one pair of test leads, USB cable, RS-232 cable, quick guide, and warranty card
Supported softwareUT8805E Software V1.09; UNI-T SDK is available for secondary development
Official-source discrepancyThe overview says 300kHz, while the model table and V1.3 data sheet specify 100kHz. The technical specification above follows the V1.3 data sheet.
