UTD-2102CEX+ 100MHz 2-Channel Digital Storage Oscilloscope
Brand
UNI-T
|
Model
UTD-2102CEX+
|
🇨🇳 China

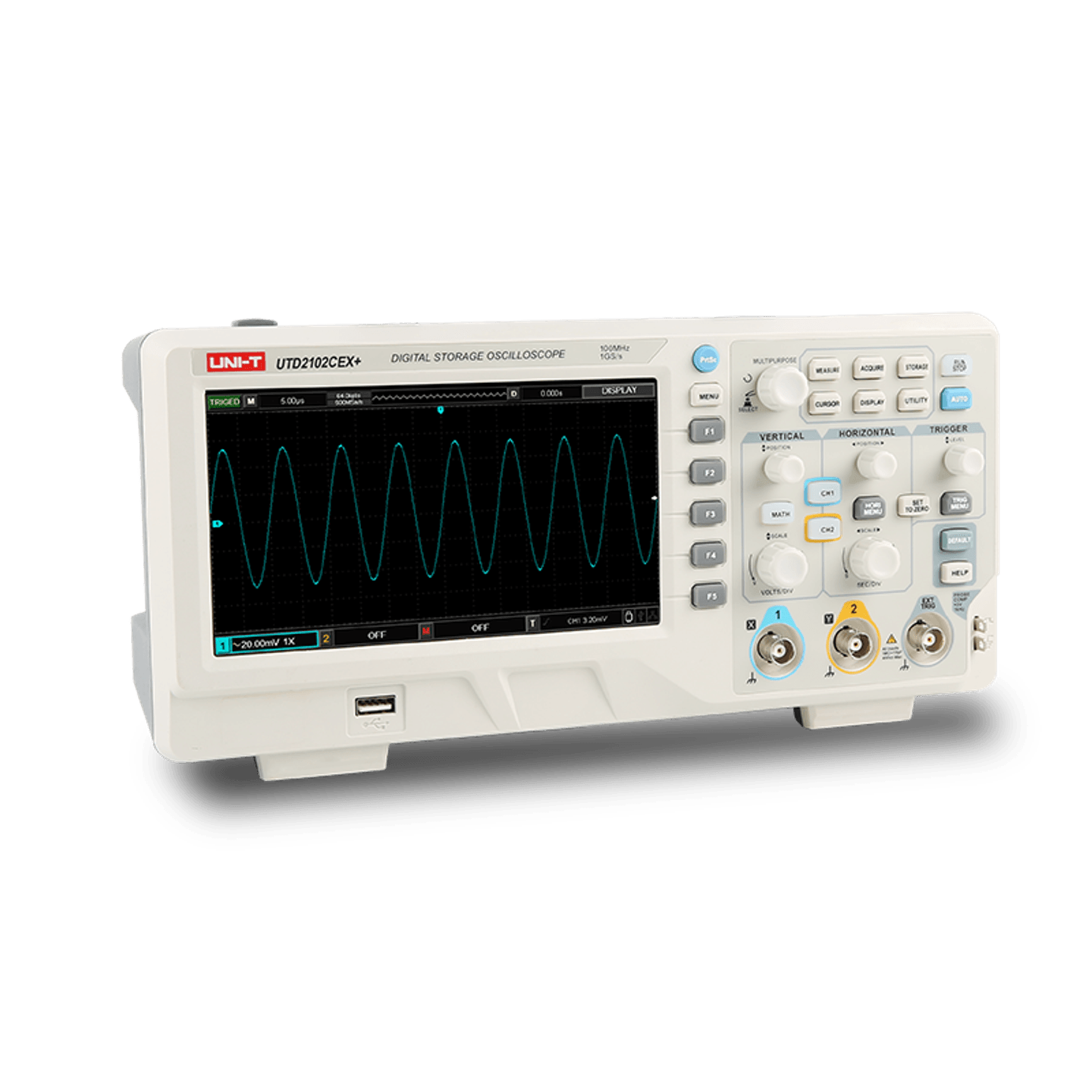

100MHz 2-channel digital storage oscilloscope with 1GSa/s real-time sampling, 64kpts memory depth, and a 7-inch color display.
Downloads
Out of Stock
Views: 28
Description
The UTD-2102CEX+ is a 100MHz two-channel digital storage oscilloscope designed for electronic design, education, and service troubleshooting. It combines a 1GSa/s real-time sample rate, 64kpts memory depth, and waveform capture up to 5,000wfms/s with a 7-inch 800×480 color display. Thirty-four automatic measurements, FFT and arithmetic functions, advanced triggering, and recording of up to 1,000 frames support efficient signal analysis and fault review.
Specifications
- Bandwidth100MHz
- Analog channels2
- Real-time sample rate1GSa/s
- Memory Depth64kpts
- Waveform capture rateUp to 5,000wfms/s
- Rise Time<3.5ns
- Vertical Sensitivity1mV/div to 20V/div
- Vertical resolution8 bit
- Timebase Range2ns/div to 50s/div
- Input Impedance1MΩ ±2%, 18pF ±3pF
- Input CouplingDC, AC, GND
- Display7-inch TFT LCD, 800×480
- Auto Measurement34; up to 5 displayed simultaneously
- Frequency counter6 digits
- Trigger TypeEdge, pulse, alternate, slope, video
- Waveform recordingUp to 1,000 frames
Features
- Wide display area8 div × 16 div display range
- Auto MeasurementSupports 34 measurement parameters
- Waveform recordingRecords up to 1,000 frames with playback and storage
- Math functionsAdd, subtract, multiply, divide, and FFT
- Storage formatsSetup, waveform, and bitmap
- Multi-language InterfaceSupports 9 languages
- Calibration outputSelectable 10Hz, 100Hz, 1kHz, and 10kHz square waves
- InterfaceUSB Host, USB Device, and Pass/Fail; LAN optional
Attributes
- Power Supply100–240VAC, 45–440Hz
- Dimensions306 × 138 × 124mm (W × H × D)
- Weight2.5kg
- ColorWhite/grey
- Standard accessoriesPower cord, UT-D14 USB cable, and UT-P04 passive probe ×2
- Warranty3 years, excluding probes and accessories
- ApplicationsCommunications, semiconductor, computing, industrial and consumer electronics, automotive electronics, service, R&D, and education
