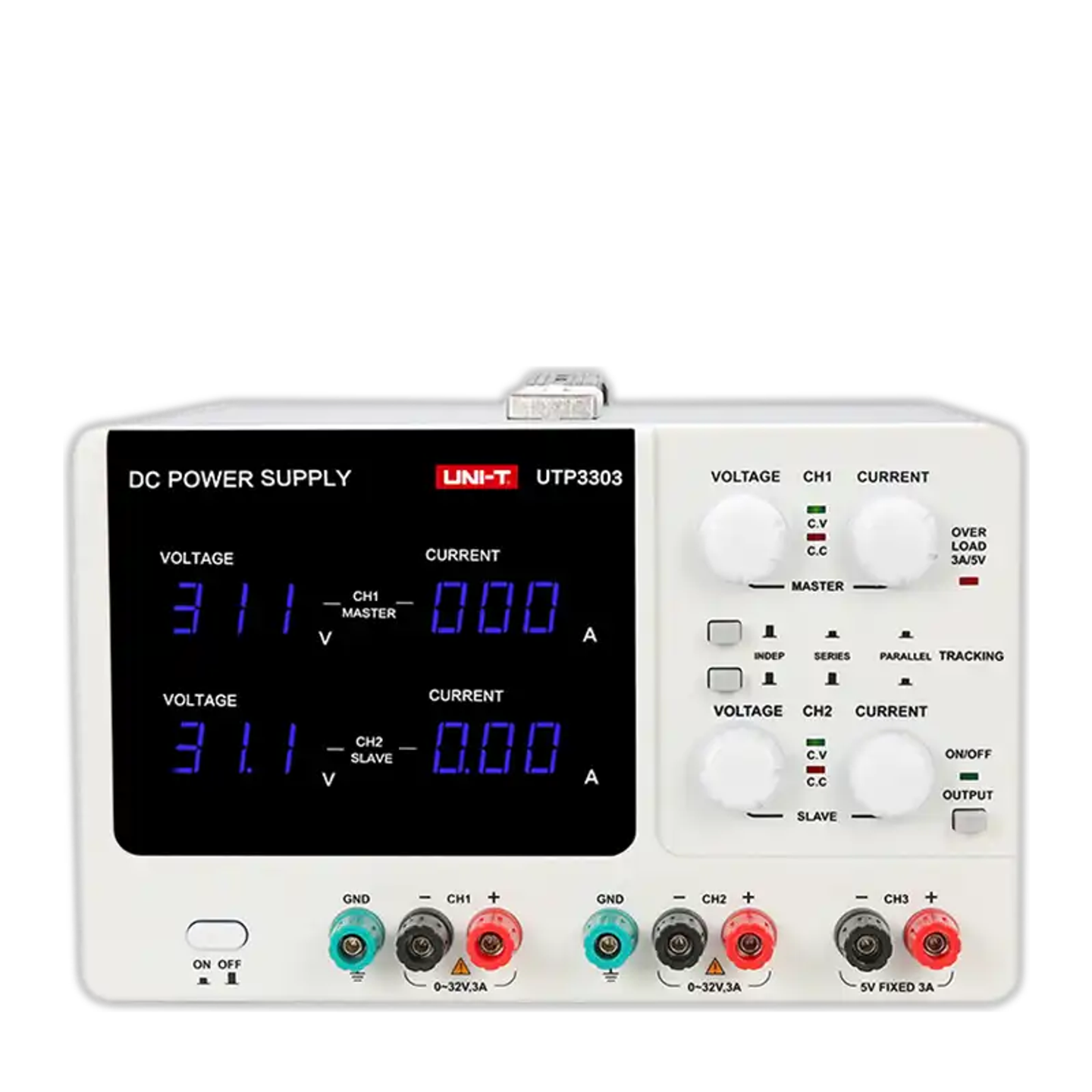

32V 3A DC power supply
Brand
UNI-T
|
Model
UTP-3303
|
🇨🇳 China
Multi-channel power supply with dual-channel 32V/3A output and single-channel 5V/3A output,
versatile output functions to meet diverse needs,
compact and portable design at an affordable price,
ideal for applications requiring low variation.
Out of Stock
Views: 605
Description
The UTP-3303 is a high-performance 3-channel linear DC power supply featuring dual-channel outputs of 32V/3A and a single-channel output of 5V/3A. Designed for environments requiring stable voltage and low noise, its low ripple and noise characteristics make it ideal for electronic device testing and development. With overload and reverse polarity protection, it ensures safe operation of your devices. Whether in laboratories, training, or industrial applications, the UTP-3303 is an excellent choice.
Specifications
- Output Voltage0~32V / 0~3A
- CH3 Output Range5V/3A
- Interface3 channels
- Constant Voltage Regulation≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01% + 3mV (≦3A)
- Current Limit Regulation Rate≦0.2% + 3mA
- Current Load Regulation Rate≦0.2% + 3mA
Features
- Channels3 channels
- Display ModeDual display showing voltage and current simultaneously
- Operating ModeConstant voltage and current limiting modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionOverload and reverse polarity protection
- Alarm FunctionCC and CV indicators stay lit
Attributes
- Operating Temperature0~40 °C / below80%RH non-condensing
- Storage Temperature-10~70 °C / below70%RH non-condensing
- Altitude Limitbelow 1,000 m
- Display3 digits LED display
- Accuracy±( 1% of rdg + 2 digits )
- Power SupplyAC 115V/230V ±10% , 50/60Hz
- Dimensions260(W) x 170(H) x 315(D) mm
- Weight9kg
- AccessoriesPower cord, test leads
