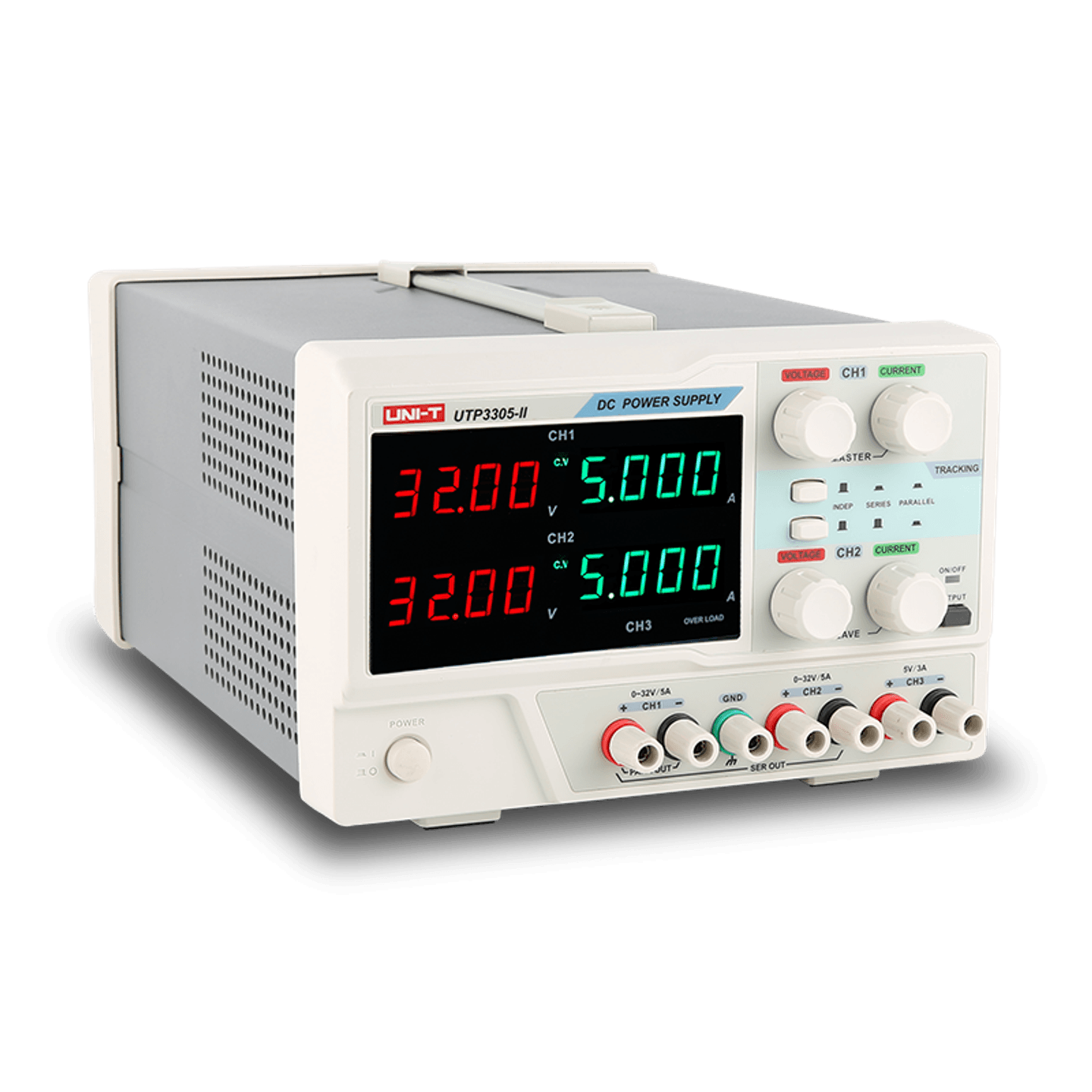

32V 5A DC power supply
Brand
UNI-T
|
Model
UTP-3305-II
|
🇨🇳 China
Multi-channel design with dual channel output of 32V/3A and single channel output of 5V/5A,
Constant voltage and current limiting mode,
Low ripple and low noise for stable output,
Overload and reverse polarity protection,
Dual screen display for real-time voltage and current monitoring,
Compact and portable with cost-effective pricing,
Ideal choice for applications requiring low variability.
Out of Stock
Views: 509
Description
The UTP-3305-II is a high-performance 32V 5A DC power supply, part of the UTP3300 series, featuring a three-channel design that provides low ripple and noise output, suitable for various experimental and testing needs. Its overload protection and constant voltage/current functionality ensure the safe operation of connected devices, catering to different power requirements for research, laboratories, and industrial applications.
Specifications
- Output Voltage0~32V / 0~5A
- CH3 Output Range5V / 5A
- Interface3 channels
- Constant Voltage Regulation≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01% + 3mV (≦3A)
- Current Limit Regulation Rate≦0.2% + 3mA
- Current Load Regulation Rate≦0.2% + 3mA
Features
- Channels3 channels
- Display ModeDual display showing voltage and current simultaneously
- Operating ModeConstant voltage and current limiting modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionOverload and reverse polarity protection
- Alarm FunctionCC and CV indicators stay lit
Attributes
- Operating Temperature0~40 °C / below80%RH non-condensing
- Storage Temperature-10~70 °C / below70%RH non-condensing
- Altitude Limitbelow 1,000 m
- Display3 digits LED display
- Accuracy±( 1% of rdg + 2 digits )
- Power SupplyAC 115V/230V ±10% , 50/60Hz
- Dimensions260(W) x 170(H) x 315(D) mm
- Weight10kg
- AccessoriesPower cord, test leads
