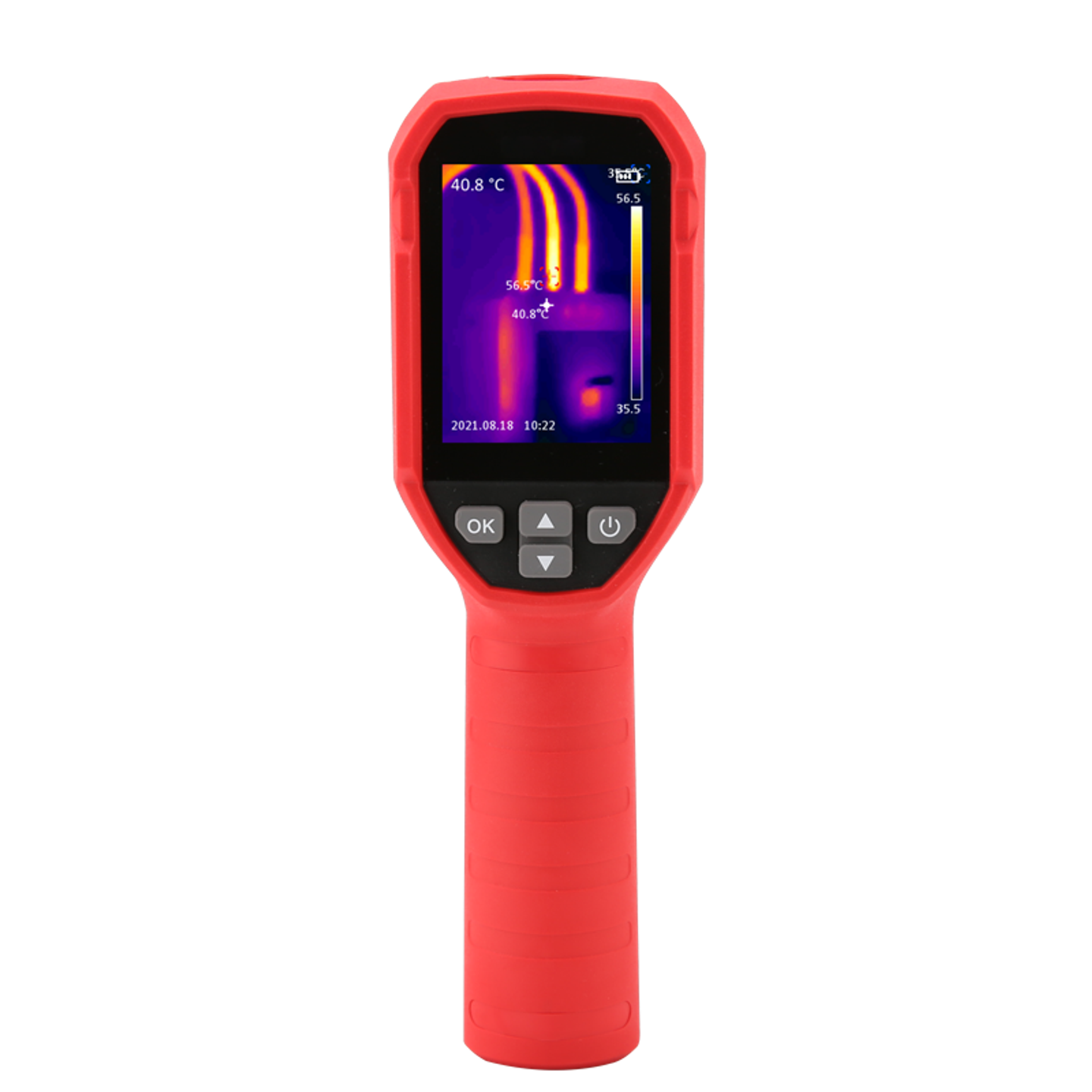

Cost-effective Thermal Camera
Brand
UNI-T
|
Model
UTi712S
|
🇨🇳 China
• High-resolution thermal imaging
• Long battery operation capability
• Multilingual user interface
• Suitable for industrial sites
• Rugged design with IP54 protection rating
• Can withstand a 2-meter drop
Out of Stock
Views: 544
Description
The UTi712S is a cost-effective thermal camera designed to be rugged and durable, featuring an IP54 protection rating and able to withstand a drop from 2 meters, making it suitable for various industrial environments. It provides high-resolution thermal images and boasts long battery life along with a multilingual interface, allowing users to easily operate and obtain accurate thermal data on the job site.
Specifications
- Resolution7.3mrad
- Display2.4” TFT LCD (320×240)
- Field of View (FOV)50°×38°
- Thermal Sensitivity (NETD)≤60mK
- Frame Rate≤25Hz
- Spectral Range8~14µm
- SpecificationSee datasheet
- Measuring Range-20℃~400℃
- Accuracy±2℃ or ±2%
- Emissivity0.01~1.00 ( 0.95)
Features
- Specification,, Ironbow, HC,,
- Specification Yes
- Alarm Function, LED,
- PCYes
- Specification Yes
- LEDYes
Attributes
- Power SupplyFixed Li-ion battery (3.7V 2600mAh)
- Battery Operation Time≥8 hours
- InterfaceType-C
- Waterproof RatingIP54
- Drop Resistance2m
- Storage Temperature16GB Micro SD card
- Image/Video Storage FormatBMP
- CertificationCE, UKCA, FCC, RoHS
- Weight310g
- Dimensions197mm×72mm×60mm
