YK-2005WA

Brand LUTRON | Model YK-2005WA | 🇹🇼 Taiwan
Key features of the YK-2005WA Multi-Function Water Quality Meter include: * Integrated pH/ORP, conductivity, dissolved oxygen, and TDS measurement functions * pH measurement range: 0 to 14.00 pH, ORP measurement range: ±1999 mV * Conductivity measurement range: 200 uS/2 mS/20 mS/200 mS * Dissolved oxygen measurement range: 0 to 20.0 mg/L * Automatic temperature compensation feature * Built-in real-time data logger storing up to 16,000 data points * Supports RS-232/USB output * Equipped with a large LCD display * Operates on DC 1.5V or DC 9V power supply
Price NT$ 9,240
Out of Stock
Views: 582

Description

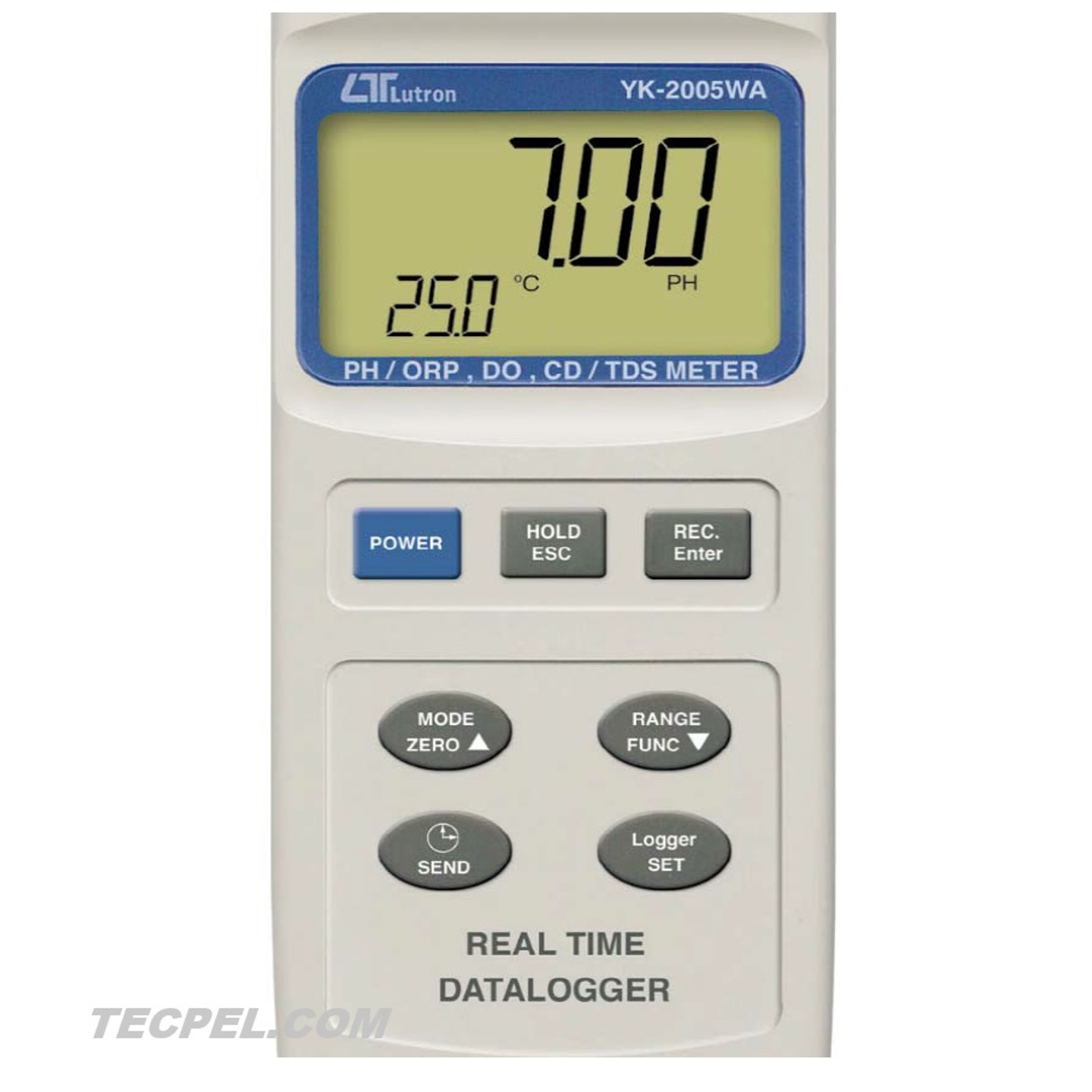

The YK-2005WA Multi-Function Water Quality Meter is a high-precision measurement tool designed for water quality control, food processing, and laboratory applications. It can simultaneously measure pH/ORP, conductivity, dissolved oxygen, and TDS, while featuring a built-in data logger that stores up to 16,000 data points. With RS-232 and USB output interfaces, data management is made convenient. Its automatic temperature compensation feature and large LCD display ensure ease of reading and analyzing data, making it suitable for various professional needs.

Specifications

  • Display Countsmax.to1999digits
  • pH Range0 ~ 14.00PH ±0.02PH + 2d
  • (ORP)-1999mV ~ +1999mV ±(0.5% + 2d)
  • Conductivity Range0.1μS ~ 199.9mS ±(2% F.S. + 1d)
  • (TDS)0.1 ~ 132000ppm ±(2% F.S. + 1d)
  • Operating Temperature0 ~ 60.0ºC ±0.8 ºC
  • Dissolved Oxygen Range0 ~ 20.0mg/L ±0.4mg/L
  • (Oxygen in Air)0 ~ 100.0% ±0.7% O2

Features

  • PH/ORP measurementyes
  • Conductivity Rangeyes
  • Dissolved Oxygen Rangeyes
  • TDS measurementyes
  • Recording Capacity16,000records
  • RS-232/USByes
  • Auto Power Offyes
  • Max/Minyes
  • Data Holdyes
  • Auto Calibrationyes

Attributes

  • Dimensions203 x 76 x 38 mm
  • DisplaySuper large LCD display
  • Safety RatingRS-232 and USB
  • Operating Temperature0 ~ 50 ºC
  • Operating Environment HumidityLess than 85% RH
  • Weight365 g (including battery)
  • Power Supply1.5V AA batteries x 4 or DC 9V adapter
