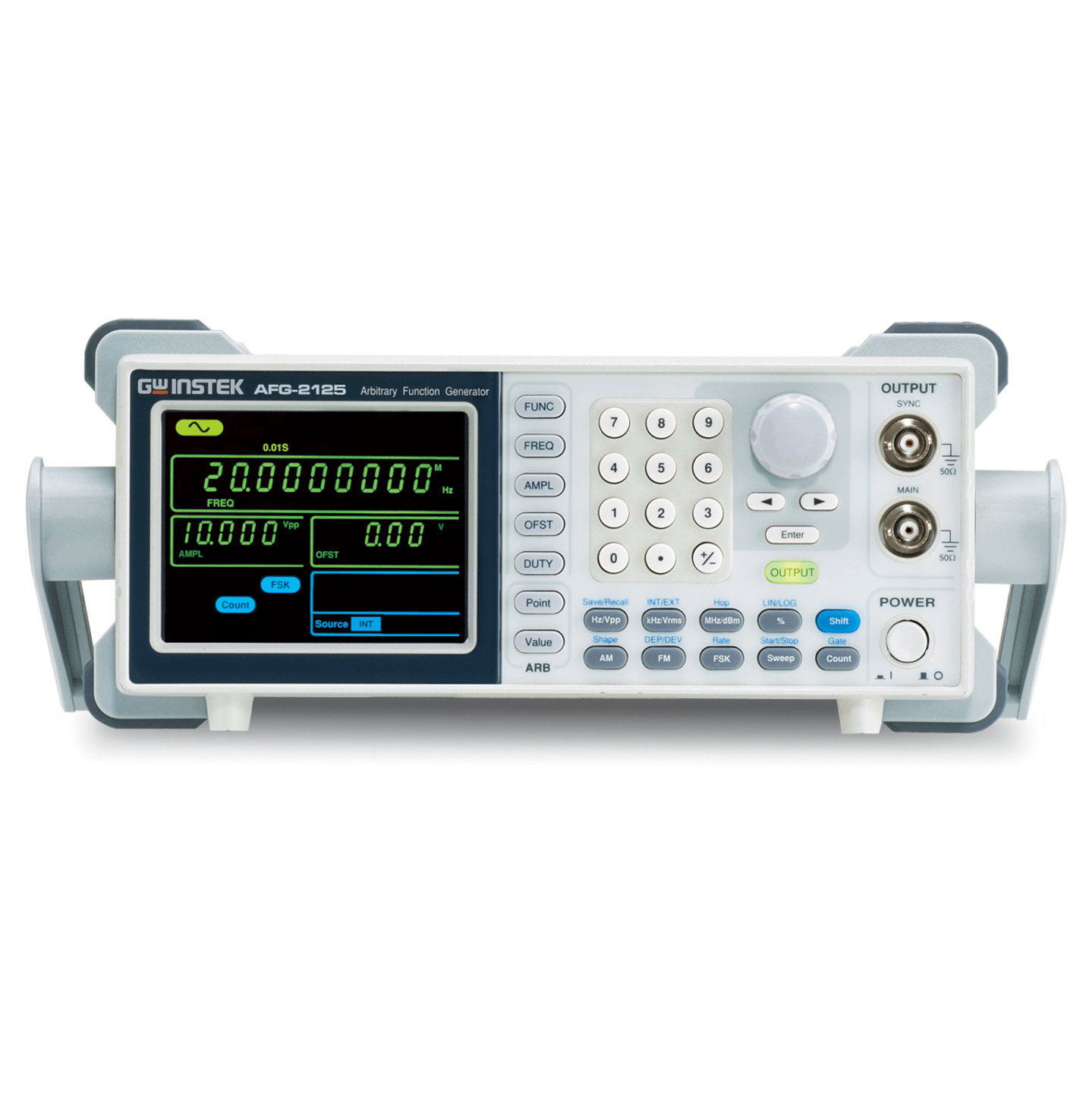

Arbitrary Function Generator
Brand
GWINSTEK
|
Model
AFG-2125
|
🇨🇳 China
• High-precision waveform generation suitable for scientific research and engineering applications
• Built-in dual-channel design supports various waveform types
• User-friendly interface for easy setting and editing
• Supports AM/FM/PM/FSK modulation functions
• Provides 10 memory settings for quick retrieval
• Wide output amplitude range to accommodate diverse needs
• Linear/logarithmic scanning functionality enhances testing flexibility
Out of Stock
Views: 509
Description
The GWINSTEK AFG-2125 Arbitrary Function Generator is a high-precision signal generation device designed for scientific research and engineering applications. It offers a wide range of waveform generation capabilities to meet various technical requirements. With a user-friendly interface, AFG-2125 supports multiple waveform and frequency settings, making it an ideal tool in laboratories and testing environments.
Specifications
- Waveform4k
- Sampling Rate20 MSa/s
- Sound Frequency,: 0.1 Hz – 25 MHz,: 0.1 Hz – 1 MHz
- Resolution10 bit
- Specification10MHz
- Recording Capacity4k
- Accuracy±20 ppm
- Operating Temperature18–28°C
- Specification ±1 ppm/
- Specification 1 mVpp~10 Vpp (50Ω), 0.1 Hz～20 MHz; 2 mVpp~20 Vpp , 0.1 Hz～20 MHz
Features
- Channels, and
- InterfaceUSB Host/Device, PC
- SpecificationsupportsAM/FM/PM/FSK/SUM/Sweep/Burst
- Specification Yes
- Specification TTL-compatible
- Specification AM, FM, FSK
- Setup Storage10 sets
- Waveform,,,,
- Modulation FunctionAM/FM supports,
- Sweep Function/
Attributes
- Operating TemperatureTemperature 0–40°C, Humidity ≤80%
- Storage TemperatureTemperature -10–70°C, Humidity ≤70%
- Power SupplyAC 100–240V, 50–60Hz
- Dimensions266(W) × 107(H) × 293(D) mm
- WeightApprox. 2.5 kg
- AccessoriesCD (User Manual + Software), Quick Start Guide, Power Cord, GTL-101 × 2
