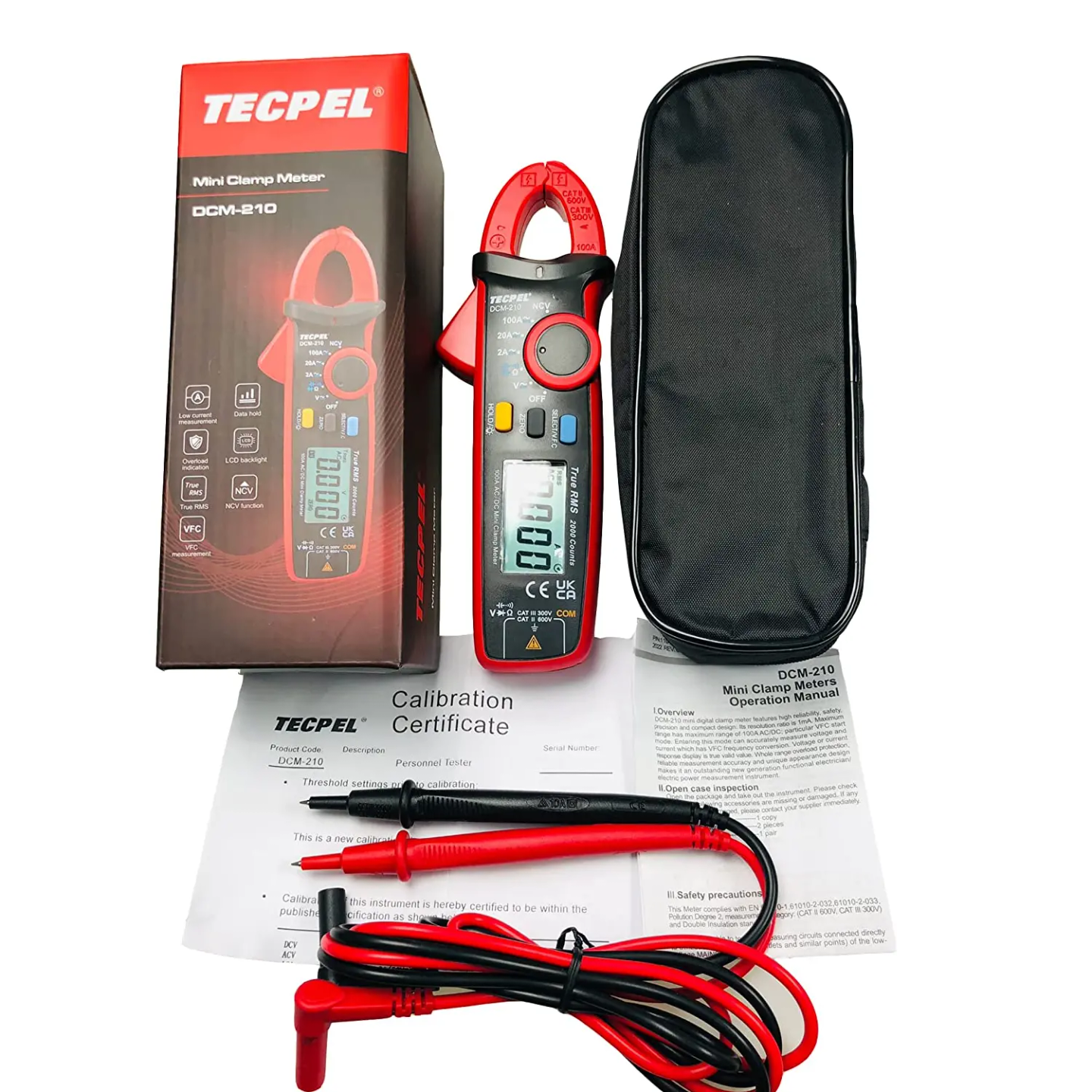

True RMS AC/DC Digital Clamp Meter 1mA
Brand
TECPEL
|
Model
DCM-210
|
🇨🇳 China
Compact design suitable for small current measurements.
Features VFC activation mode to filter high-frequency interference.
Full range overload protection ensures safe operation.
Automatic range selection for easier use.
Price
NT$ 1,365
Out of Stock
Views: 85
Description
The DCM-210 True RMS AC/DC clamp meter is designed specifically for measuring small current signals with high precision and reliability. Its compact design and automatic range selection features make it user-friendly. The built-in VFC activation mode, along with a specialized filtering circuit, effectively removes high-frequency interference, ensuring accurate measurements. The DCM-210 is perfect for measuring variable frequency voltage and current and includes full range overload protection, making it an ideal tool for electricians and technicians.
Specifications
- 精確度0.1 Ω
- 鉗口開度Ø17 mm
- 交流電流2 / 20 / 100 A <±(2.5%+5 @50/60 Hz)>
- 直流電流2 / 20 / 100 A <±(2.0%+3)>
- 交流電壓2 / 20 / 200 / 600 V <±(1.0%+3)>
- 直流電壓2 / 20 / 200 / 600 V <±(0.7%+3)>
- 電阻200 / 2K / 20K / 200K / 2M / 20M Ω <±(1.0%+2)>
- 電容２n / 20nK / 200n / 2μ / 20μ / 200μ / 2m / 20m F <±(4%+5)>
- 解析度DC: 0.1m V / AC: 0.001 V
Features
- 二極體測試約 3.0V
- 自動關機約 15分鐘
- 輸入阻抗10MΩ
Attributes
- Operating Temperature0~40°C / lower than 80%RH without dew。
- Storage Temperature10~50 °C / lower than 70%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5v Battery (AAA) x 2
- Dimensions175 × 60 × 33.5 mm
- Weight170g
- AccessoryTest Lead、Battery、Manual
