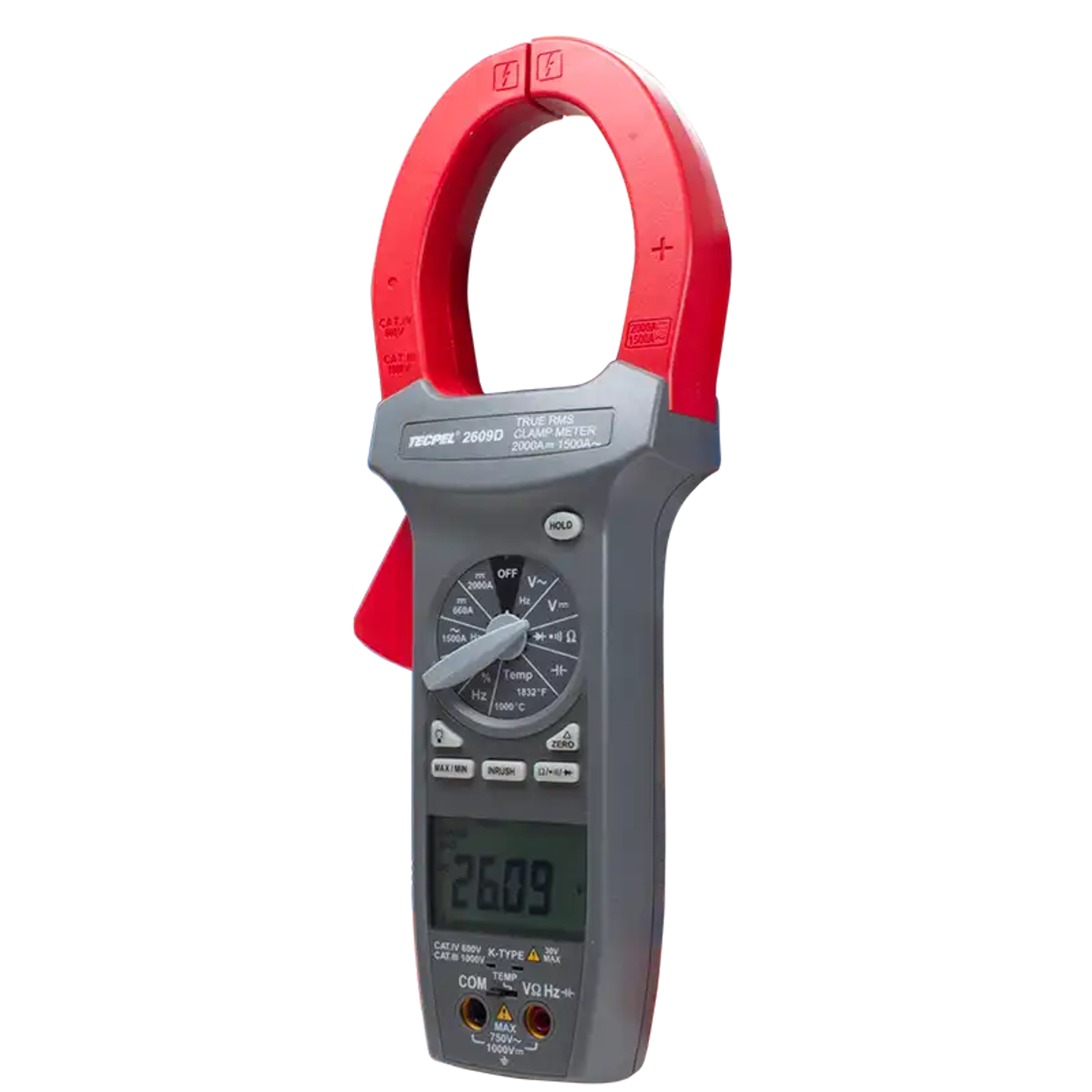

DC 2000A Ddigital AC/DC current clamp
Brand
TECPEL
|
Model
DCM-2609D
|
🇹🇼 Taiwan
The DCM-2609D digital AC/DC current clamp offers the following features:
- Measures up to 1500A AC
- Measures up to 2000A DC
- Voltage, resistance, capacitance, and diode testing functions
- High safety ratings in compliance with EN61010 standards
- Auto power-off feature to conserve battery life
- Max/Min value and hold function
Out of Stock
Views: 15
Description
The DCM-2609D digital AC/DC current clamp is designed for measuring high currents, capable of measuring up to 1500A AC and 2000A DC. In addition to superior current measurement capabilities, this clamp meter also features diode and capacitance testing functions, making it ideal for electrical system maintenance, factory wiring current measurement, and various other applications, providing engineers and educational institutions with a convenient measuring solution.
Specifications
- 精確度6,600 位數
- 鉗口開度Ø75 mm
- 交流電流660 / 1500 A
- 直流電流660 / 2,000 A
- 交流電壓6.6 / 66 / 660 / 750 V
- 直流電壓6.6 / 66 / 660 / 1,000 V
- 電阻660 / 6.6K / 66K / 660K / 6.6M / 66M Ω
- 二極體測試0.001 ~ 2.000V
- 電容6.6n / 66n / 660n / 6.6u / 66u / 660u / 6.6m F
- 頻率66 / 660 / 6.6K / 66K / 660K / 1M Hz
- 佔空比5 ~ 95%
- 工作溫度-35 ~ 1,000°C(-30 ~ 1,832°F)
Features
- 頻率數字每秒 2.8次 、 條圖每秒 28次
- 超標指示OL 或 -OL
- 峰值鎖定(PEAK)✓
- 自動關機約 30分鐘
- 導通測試✓
- 數值保持✓
- 最大/最小值✓
- 安全等級EN61010-1, EN 61010-2-032
- 量測類別CAT IV 600V, CAT III 1000V, CE approved
Attributes
- Operating Temperature0~50°C / lower than 70%RH without dew。
- Storage Temperature-20~60°C / lower than 80%RH without dew。
- Elevation LimitationLower than 2,000 meters
- Power Supply9V Battery (NEDA 1604, IEC 6F22, JIS 006P)
- Dimensions281 x 108 x 53 mm
- Weight570g / 20.1 OZ (Battery including)
- AccessoryTest Lead; temperature; Carrying Bag; Manual
