LUTRON DW-6093 3 Phase Power Analyzer Tester Real Time Data Logger

Brand LUTRON | Model DW-6093 | 🇹🇼 Taiwan

The DW-6093 provides real-time measurements of three-phase voltage, current, and power, features various measurement modes including instantaneous, average, peak, and RMS, allows data storage to SD card with support for Excel downloads, can connect to a computer for remote monitoring, applicable for various power applications such as factories, commercial, and residential use. Offers excellent measurement accuracy and stability to meet different user requirements.

Out of Stock

The DW-6093 3 Phase Power Analyzer is a high-performance power testing instrument designed for real-time data logging. It accurately measures various power parameters including three-phase voltage, current, power, power factor, frequency, harmonics, and energy, making it ideal for applications in factories, commercial buildings, and residential areas. This instrument features data storage capabilities to an SD card with easy download options to Excel for detailed analysis, perfectly meeting diverse power measurement needs.

Measuring Range10 ACV to 600 ACV
measuring range0.2 ACA to 1200 ACA
measuring range 0.01 kW to 9999 kW
Power Factor0.00 to 1.00
Frequency45 Hz to 65 Hz
Harmonic Range2 to 49
Energy Range0.001 kWh to 999999 kWh

Measurement Parameters,,
Data Loggingsupports SD
Specificationto Excel
Acquisition Mode,,, RMS
Specification Yes
Applications,,
Power Factor0.00 to 1.00
Frequency45 Hz to 65 Hz
Harmonic Range2 to 49
Energy Range0.001 kWh to 999999 kWh

Operating Temperature0~50°C / lower than 70%RH without dew。
Storage Temperature-20~60°C / lower than 80%RH without dew。
Altitude LimitLower than 2,000 meters
Power Supply9V Battery (NEDA 1604, IEC 6F22, JIS 006P)
Dimensions281 x 108 x 53 mm
Weight570g / 20.1 OZ (Battery including)

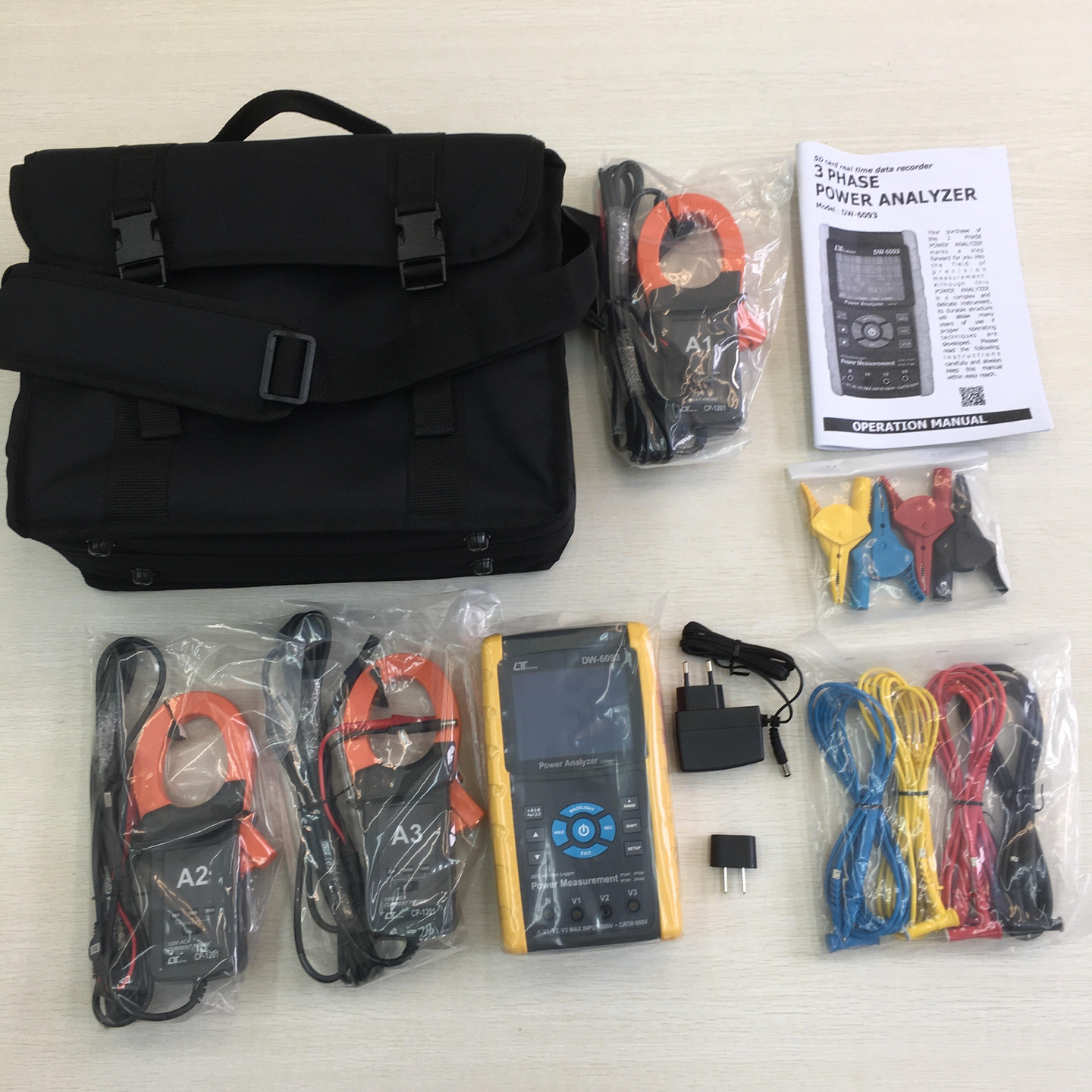

AccessoriesTest Lead; temperature; Carrying Bag; Manual, Calibration Certificate( Optional)
Shipping Carton44 x 38 x 30 cm ; 4.8 kgs
