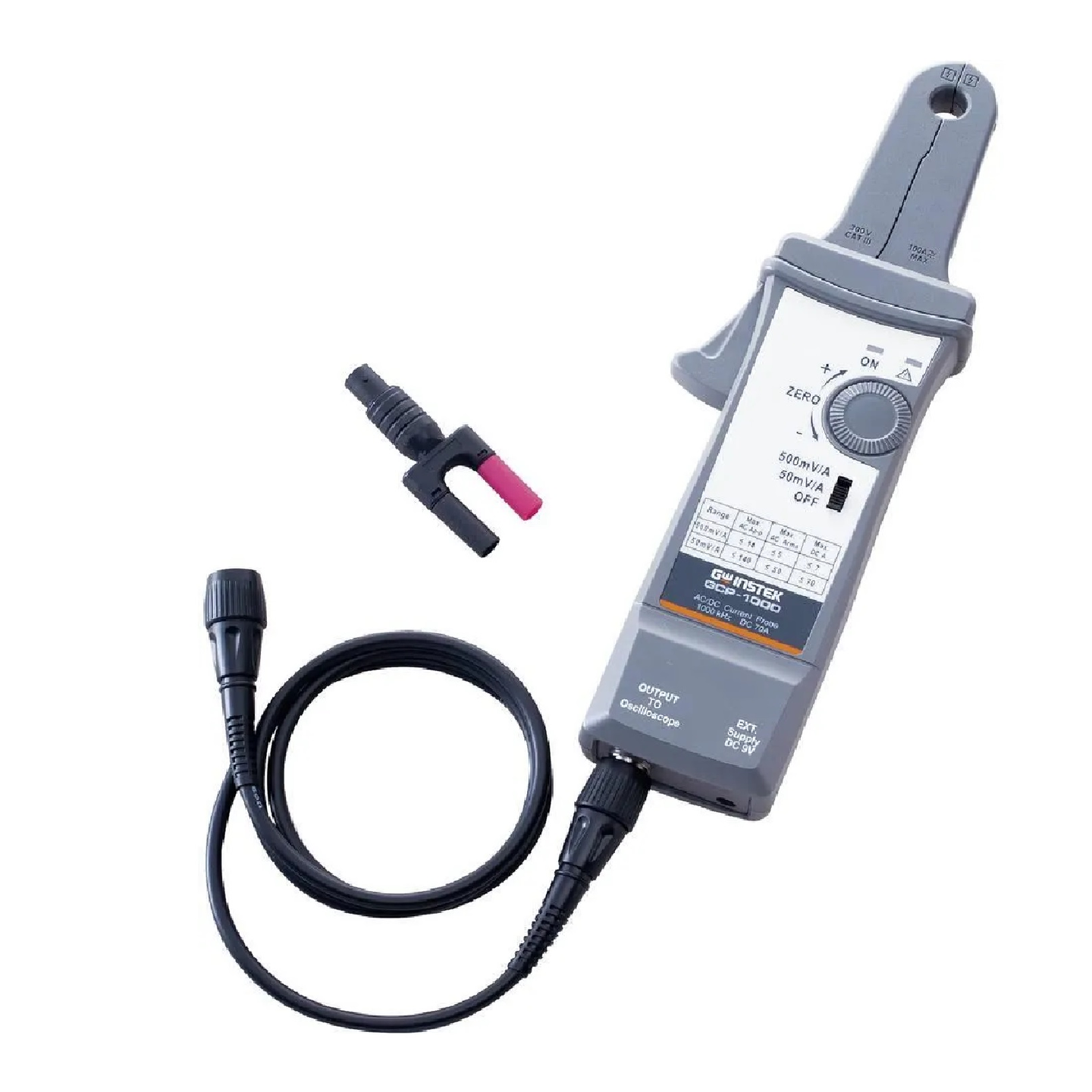

1 MHz / 70 A AC & DC Current Probe
Brand
GWINSTEK
|
Model
GCP-1000
|
🇹🇼 Taiwan
Features dual sensitivity range for measuring current from 20 mA to 70 A.
Includes an overload indicator for safety during testing.
Prioritizes external AC power design, suitable for high-demand testing environments.
Out of Stock
Views: 544
Description
The GCP-1000 AC & DC Current Probe offers a bandwidth of up to 1 MHz, designed for high-speed switching current analysis, current ripple, and noise measurement, making it an essential tool in precision electronic testing and R&D processes. Its dual sensitivity range allows for accurate measurements from 20 mA to 70 A, ensuring reliable performance in demanding testing environments.
Specifications
- Measuring Range20 mA to 70 A
- BandwidthDC to 1 MHz
- Accuracy±3% (20 mA ~ 7 A ), ±4% to ±15%
- InterfaceBNC,
Features
- High SensitivityYes
- Overload ProtectionYes
- Specification70 A: 50 mV/A, 7 A: 500 mV/A
- Specification Yes
Attributes
- Rated Circuit VoltageCAT III 600 V
- Power Supply9 V alkaline battery, external AC/DC adapter
- Usage LimitationDo not use on circuits above 600 VAC
