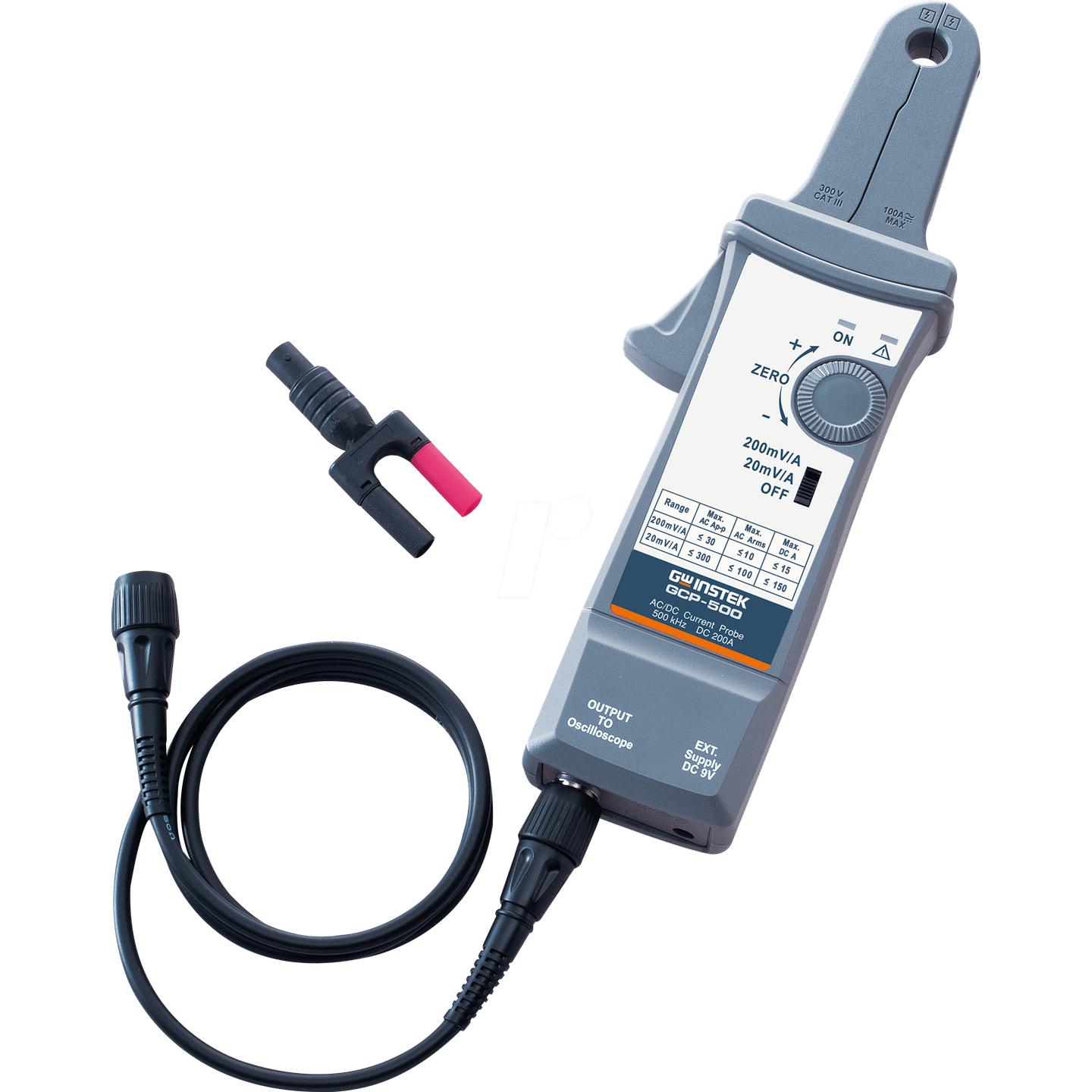

AC & DC Current Probe
Brand
GWINSTEK
|
Model
GCP-500
|
🇹🇼 Taiwan
GCP-500 offers a bandwidth of 500 kHz, suitable for applications in high-frequency switching power supplies and inverter systems.
Includes overload protection for safe operation.
Prioritizes external AC power to enhance measurement accuracy.
Out of Stock
Views: 550
Description
The GCP-500 is an AC & DC current probe featuring a bandwidth of 500 kHz, ideal for high-frequency switching power supplies and advanced inverter systems, providing precise dynamic current analysis. This probe easily handles a wide range of currents and includes overload protection to ensure safe and stable measurements. Its design prioritizes external AC power, enhancing measurement accuracy and reliability.
Specifications
- BandwidthDC to 500 kHz
- Current Range30 mA to 150 A
- Specification150 A: 20 mV/A, 15 A: 200 mV/A
- Accuracy±3% (30 mA ~ 15 A ), ±4% to ±15%
- Independent Output SwitchBNC,
- Maximum Input VoltageCAT III 600 V
Features
- DC CurrentYes
- Overload ProtectionYes
- SpecificationYes
Attributes
- Power Supply9V battery, AC/DC adapter (automatic priority)
- Alarm FunctionDo not clamp onto circuits exceeding 600 VAC
