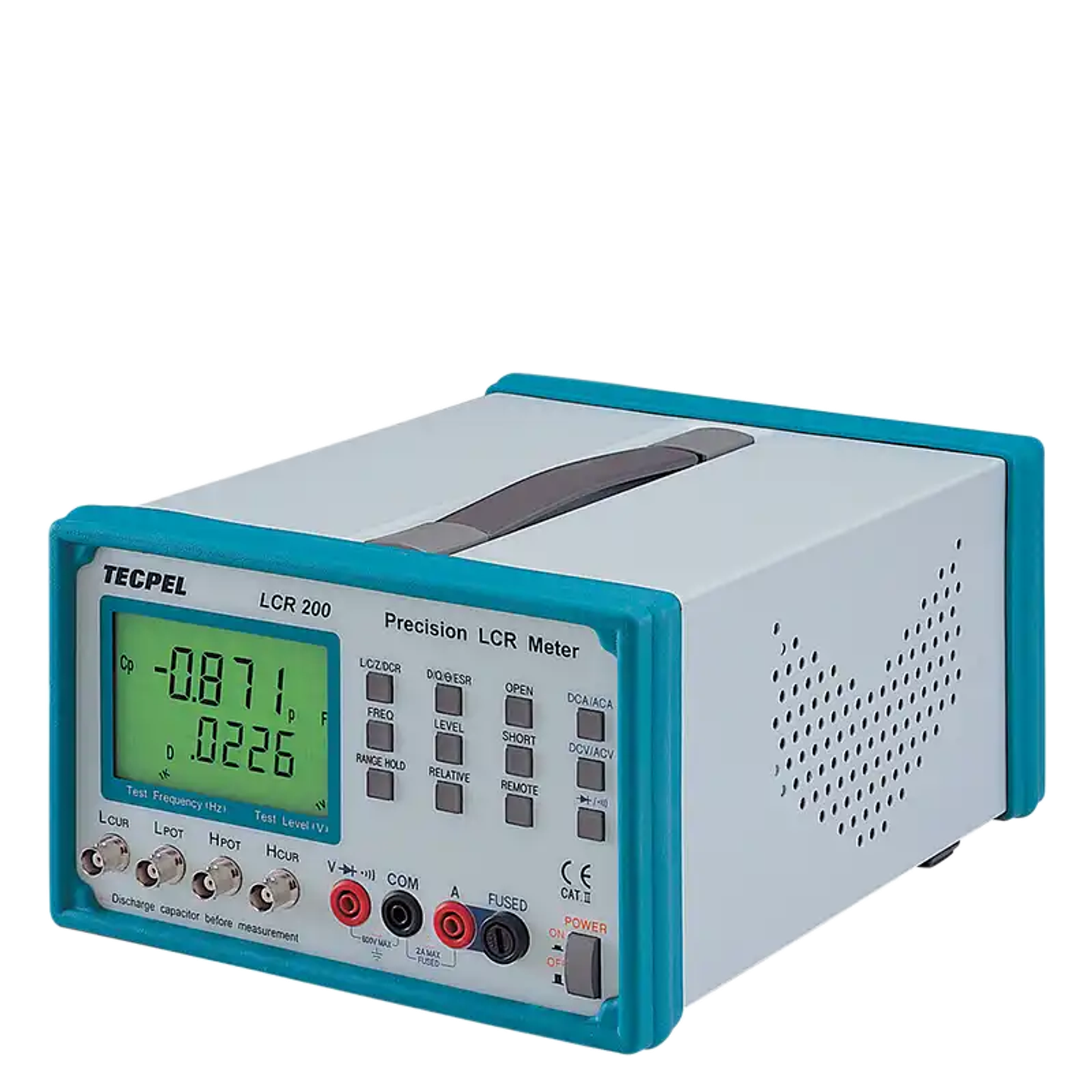

Discontinued TECPEL [Discontinued]LCR-200 200KHz desktop LCR tester, replacement model LCR-2200 200MHz

Brand TECPEL | Model LCR-200 | 🇹🇼 Taiwan

TECPEL [Discontinued]LCR-200 200KHz desktop LCR tester, replacement model LCR-2200 200MHz

LCR-200 can use a 200KHz detection frequency and has a multi-function electric meter function that can measure the true effective value of the voltage (A.C.T.RMS. AC true root mean square value). The LCD display can display the test conditions and test results at the same time, as well as fast Perform open circuit and short circuit correction to make measuring passive components simple. Users can also issue commands through the RS-232 interface and obtain measurement data and control parameters remotely. Replaced-by-model LCR-2200 https://www.tecpel.com.tw/product/LCR-2200

This product has been discontinued. Specifications and documents remain available for reference, but ordering is no longer possible. Please contact our sales team for alternatives.

Replacement models: LCR-2100 / LCR-2200 / LCR-614 / LCR-615

Views: 550

LCR-200 can use a 200KHz detection frequency and has a multi-function electric meter function that can measure the true effective value of the voltage (A.C.T.RMS. AC true root mean square value). The LCD display can display the test conditions and test results at the same time, as well as fast Perform open circuit and short circuit correction to make measuring passive components simple. Users can also issue commands through the RS-232 interface and obtain measurement data and control parameters remotely. Replaced-by-model LCR-2200 https://www.tecpel.com.tw/product/LCR-2200

Display Counts9,999 display
Signal Output100 / 120 / 1K / 10K / 100K / 200K Hz
Capacitance0.003p ~ 80.00m F
Inductance0.030μ ~ 9,999 H
Resistance0.001 ~ 5.000 Ω
DCRmeasurement0.001 ~ 500.0M Ω
ESRmeasurement0.001 ~ 999.9 Ω
Accuracy±0.1%
Test Voltage1V / 250m /50m / 1 Vrms ; 1VDC(DCR only)
Source Output Impedance100 Ω

Calibration/
Dissipation Factor (D)４digitsdisplay
Quality Factor (Q)４digitsdisplay
Phase Angle (θ)±180.0°
Tolerance Mode1%、5%、10%、20%
Data TransmissionUSB

Operating Temperature0~40°C / below85%RH non-condensing
Storage Temperature-20~70°C / below75%RH non-condensing
Warm-up Time15min
Power SupplyAC:110V 60Hz or AC:220 50Hz
Dimensions300 x 220 x 150 mm
Weight4,500g
Accessories(TL09C),,,
