Handheld LCR Meter
Brand
TECPEL
|
Model
LCR-614
|
🇨🇳 China
The LCR-614 handheld LCR meter features a 10KHz testing frequency for more accurate component measurements.
- Supports measurement of inductance, capacitance, and resistance
- Series/parallel measurement modes
- Four selectable measurement frequencies
- High accuracy of ±0.25%
- Displays multiple data including quality factor, loss, and phase angle
Downloads
Price
NT$ 8,715
Out of Stock
Views: 536
Description
The Handheld LCR Meter LCR-614 is designed for testing passive components including inductors, capacitors, and resistors. It features series/parallel measurement modes and provides data on quality factor, loss, and phase angle of electronic components. The LCR-614 offers four measurement frequencies in AC mode, ensuring accurate measurements of component parameters, making it ideal for electronic engineers and technicians.
Specifications
- Display Counts39,999 display
- Signal Output100 / 120 / 1K / 10K Hz
- Capacitance0.01p ~ 20.000m F
- Inductance0.01μ ~ 1000.0 H
- Resistance0.0001 ~ 10.000M Ω
- Accuracy±0.25%
- Test Voltage0.6V rms
- Sampling Rate4 ／s or 1.5 /s
- Source Output Impedance100 Ω
Features
- Calibration/
- Dissipation Factor (D)4digitsdisplay
- Quality Factor (Q)4digitsdisplay
- Phase Angle (θ)±180.0°
- Tolerance Mode1%、5%、10%、20%
- Auto Power Off5min, 15min, 30min, 60min, OFF
- Data TransmissionUSB
Attributes
- Operating Temperature5~35°C / lower than 75%RH without dew。
- Storage Temperature0~50 °C / lower than 75%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyAC:110V 60Hz / 9V Battery
- Dimensions96 x 193 x 47 mm
- Weight374g

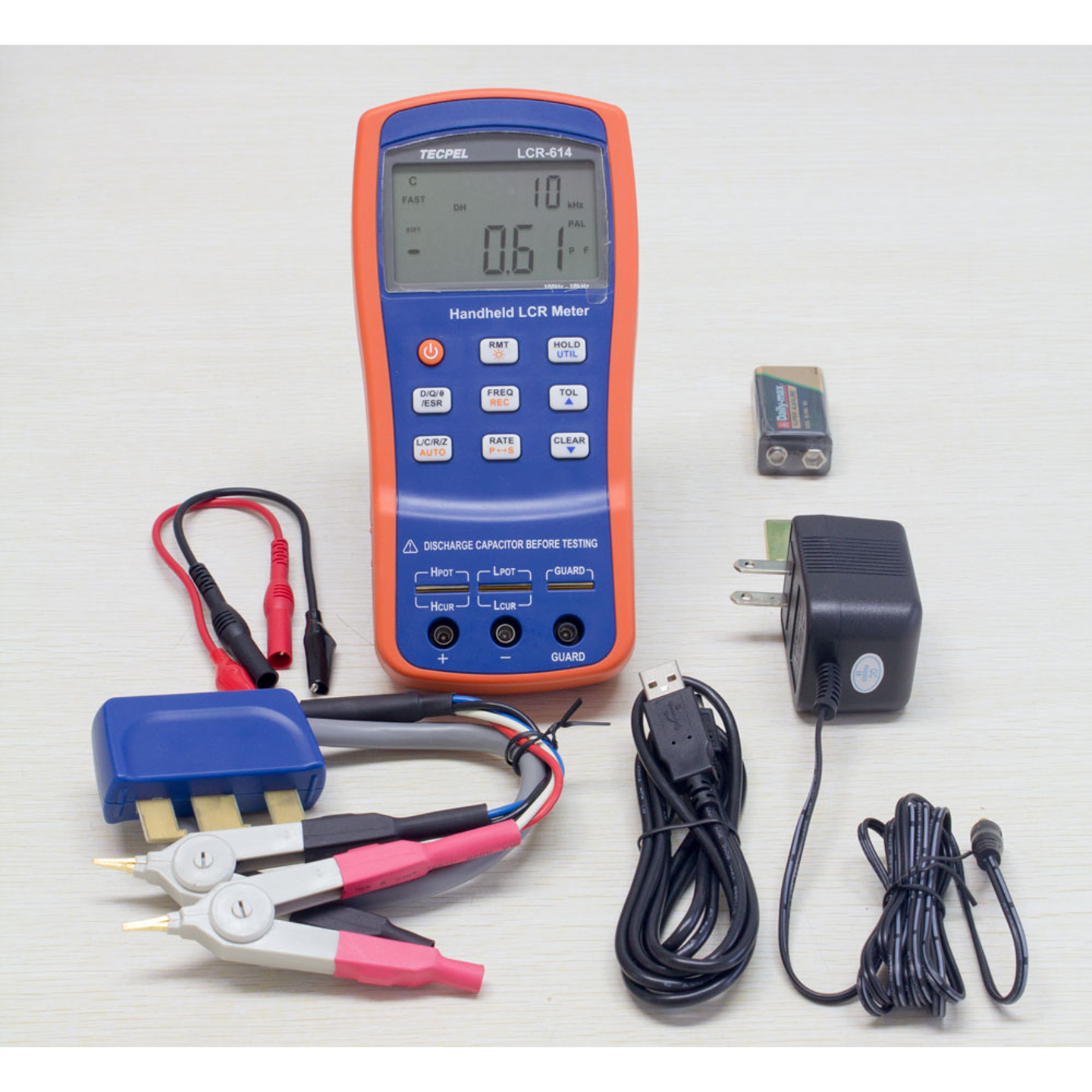

- AccessoriesSMD test clip, USB transmission line, connector socket, CD, manual
