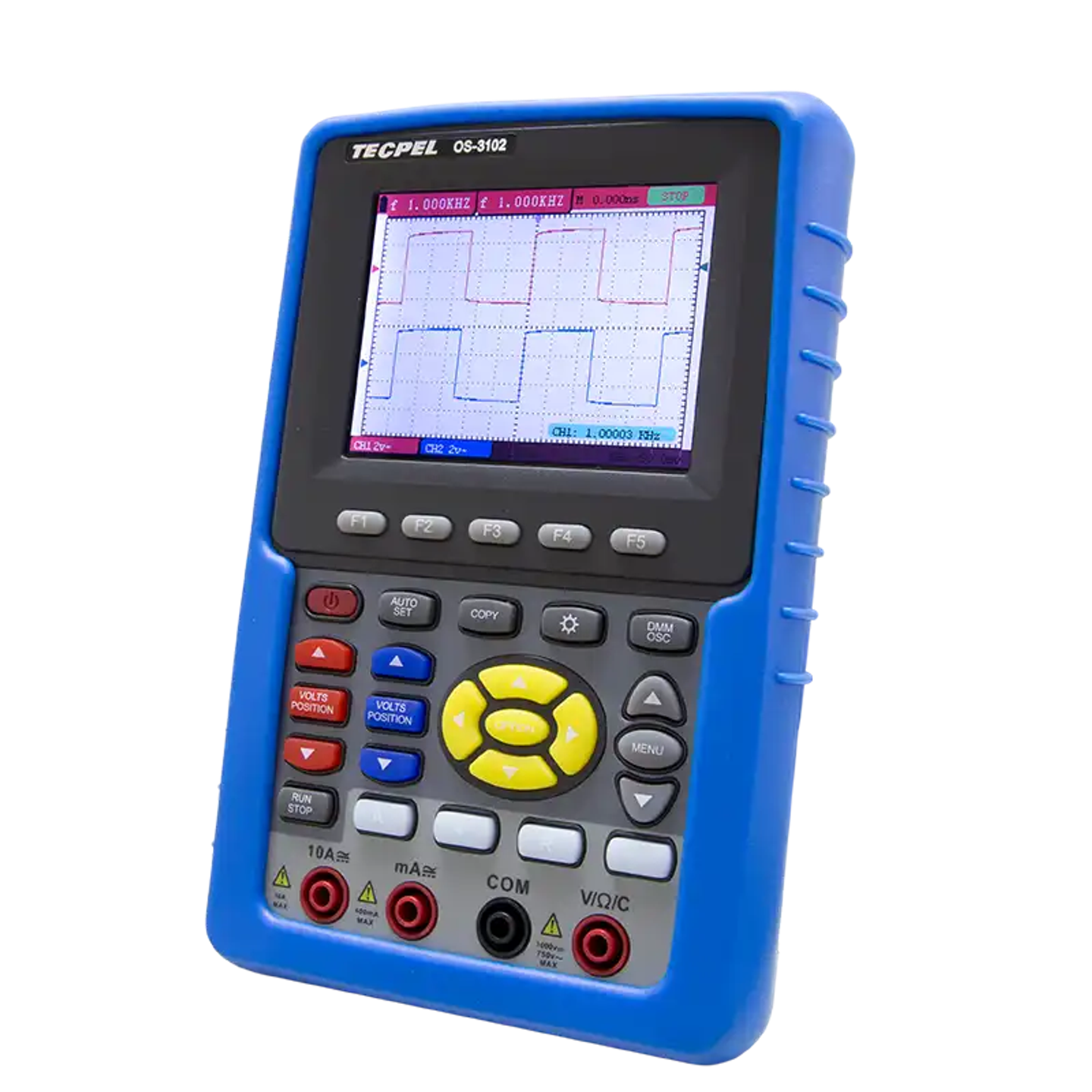

OS-3102 100MHz handheld digital oscilloscope with multimeter and oscilloscope functions

Name: TECPEL OS-3102 100MHz handheld digital oscilloscope with multimeter and oscilloscope functions
Brand: TECPEL
SKU: OS-3102
Price: 16800 TWD
Availability: OutOfStock

Brand TECPEL | Model OS-3102 | 🇨🇳 China

100MHz measurement bandwidth suitable for electronic circuit inspection Integration of multimeter and oscilloscope functions Supports multilingual interface for user-friendly operation Waveform storage capacity of 10 waveforms for easy comparison Multiple waveform triggering modes for enhanced testing flexibility

Price NT$ 16,800

Out of Stock

The OS-3102 100MHz handheld digital oscilloscope combines the functionalities of a multimeter and an oscilloscope, making it ideal for inspecting and repairing electronic circuits. With a multilingual interface, users can operate it easily. With a measurement bandwidth of up to 100MHz, it effectively captures rapidly changing signals, making it a perfect tool for school teaching and personal workshops, ideal for learning and practicing electronic technology.

Bandwidth100MHz
Channels±100ppm
Sampling Rateless than 3.5ns
Memory Depth8 Bit
Resolution6K
Rise Time2
Input Impedance400V（PK-PK）CAT Ⅱ
Overload ProtectionDC:approx. ±(1%+2 ) / AC:approx. ±(1%+3 )
Accuracy±0.3div
Trigger Accuracy1MΩ±2%, and20pF±3pF
Display Counts3,999
AC Voltage750 V
DC Voltage1,000 V
AC Current40m / 4000m / 10 A
DC Current40m / 4000m / 10 A
Resistance400 / 4K / 40K / 400K / 4M / 40M Ω
Capacitance51.20n / 512.0n / 5.120u / 51.20u / 100u F

Wave TriggerTraditional Chinese / Simplified Chinese / English, etc.
Waveform Storage10records
Multi-language Interface,,
Signal OutputRS232 or USB

Operating Temperature0~40 °C / lower than 80%RH without dew
Storage Temperature00~50 °C / lower than 70%RH without dew
Altitude LimitLower than 1,000 meters
Power SupplyApprox. 7Ｗ
Interface180 × 115 × 40 mm
Dimensions685g
WeightMeter probe, transformer, oscilloscope probe x2, oscilloscope probe adjustment tool, capacitance test module, 1K5V signal module, transmission line, CD, manual, suitcase
Accessoriesmeterprobe,, probex2, probe, capacitance sets, 1K5V sets,,,,
