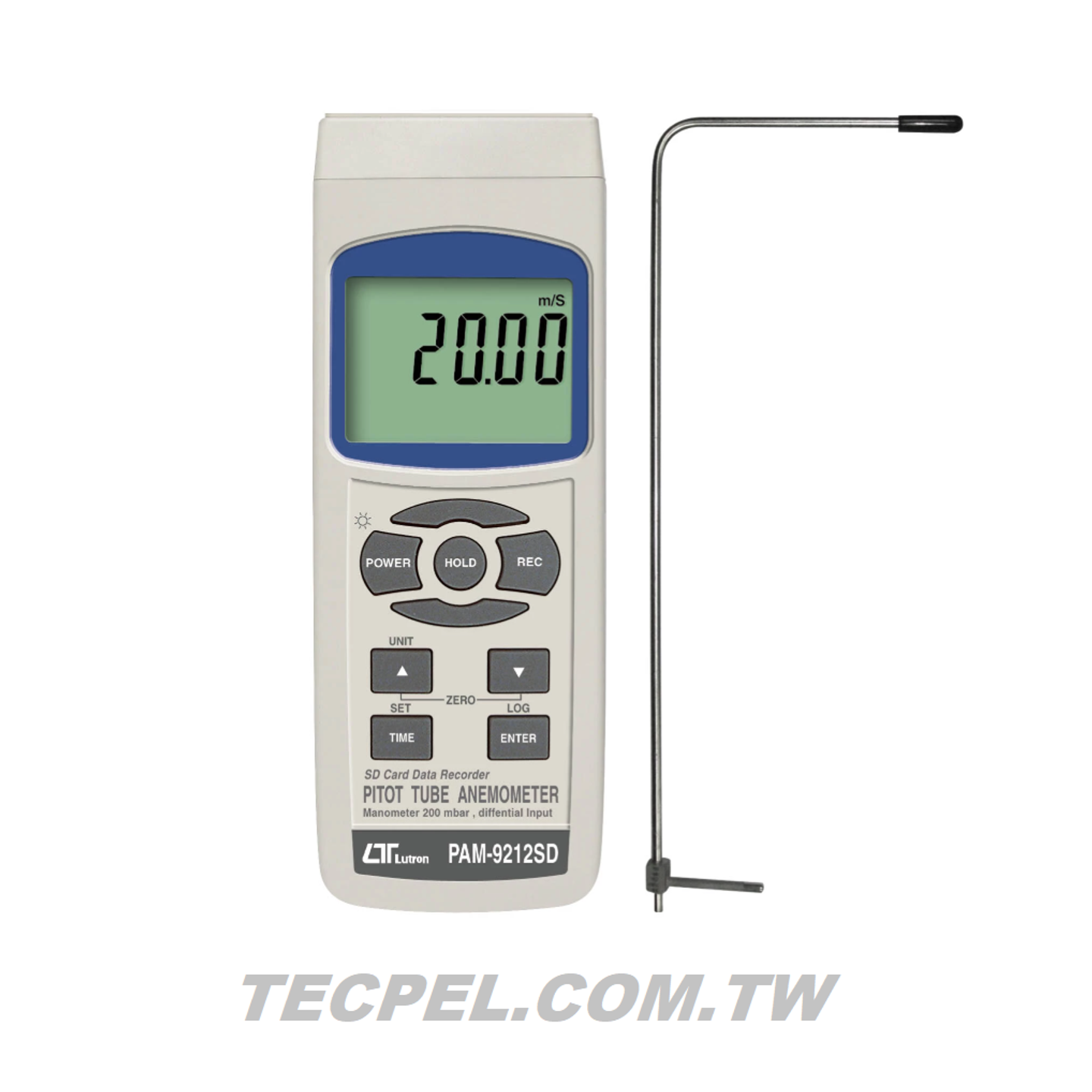

Differential Pressure Anemometer (Pitot Tube Anemometer)
Brand
LUTRON
|
Model
PAM-9212SD
|
🇹🇼 Taiwan
The PAM-9212SD offers precise wind speed and pressure measurements suitable for industrial environments requiring accurate data.
Features real-time data recording for easy storage and review.
Supports multiple measurement units and display options to meet diverse user needs.
Large LCD display for easy operation and reading.
Out of Stock
Views: 588
Description
The PAM-9212SD Differential Pressure Anemometer (Pitot Tube Anemometer) integrates a high-precision differential manometer designed for narrow or hard-to-reach environments. It allows for real-time recording of wind speed and pressure data and supports multiple measurement units, making it convenient for various industrial applications. Whether for ventilation system testing or airflow measurements, the PAM-9212SD provides reliable data to enhance your work efficiency.
Specifications
- Wind Speed±(3% + a)
- Pressure Rangembar: ±200, psi: ±2.9, Kg/cm²: ±0.204, mm Hg: ±150, inch Hg: ±5.905, meter H₂O: ±2.040, hPa: ±200, kPa: ±20, inch H₂O: ±80.2, Atmosphere: ±0.197
- Specificationmbar, psi, kg/cm^2, mm/Hg, inch/Hg, hPA, KPA, meter/H2O, inch/H2O, Atmosphere
- DisplaytypeLCD, backlight ( / )
- Pressure Unitmbar, psi, Kg/cm², mm Hg, inch Hg, meter H₂O, hPa, kPa, inch H₂O, Atmosphere
- Resolution1 mbar, 0 psi, 0 Kg/cm², 1 mm Hg, 0 inch Hg, 0 meter H₂O, 1 hPa, 0 kPa, 0 inch H₂O, 0.001 Atmosphere
- Accuracy±2% F.S.
Features
- Data Loggingdata logging
- Max/Minsupportsmax., min. and
- InterfaceRS-232 / USB
- Storage Capacity1GBto16GB
Attributes
- Power SupplyApprox. DC 7 mA during normal operation, approx. DC 25 mA with SD card save data and LCD backlight OFF, additional approx. DC 10 mA with LCD backlight ON
- Operating TemperatureTemperature 0 to 50°C, Humidity less than 85% RH
- Dimensions190 x 68 x 45 mm (7.5 x 2.7 x 1.8 inches)
- AccessoriesInstruction Manual x1, Quick Coupler Plugs x2, Pitot Tube (018) x1, Silicone Soft Tube (50 cm) x2
- Weight265 g
