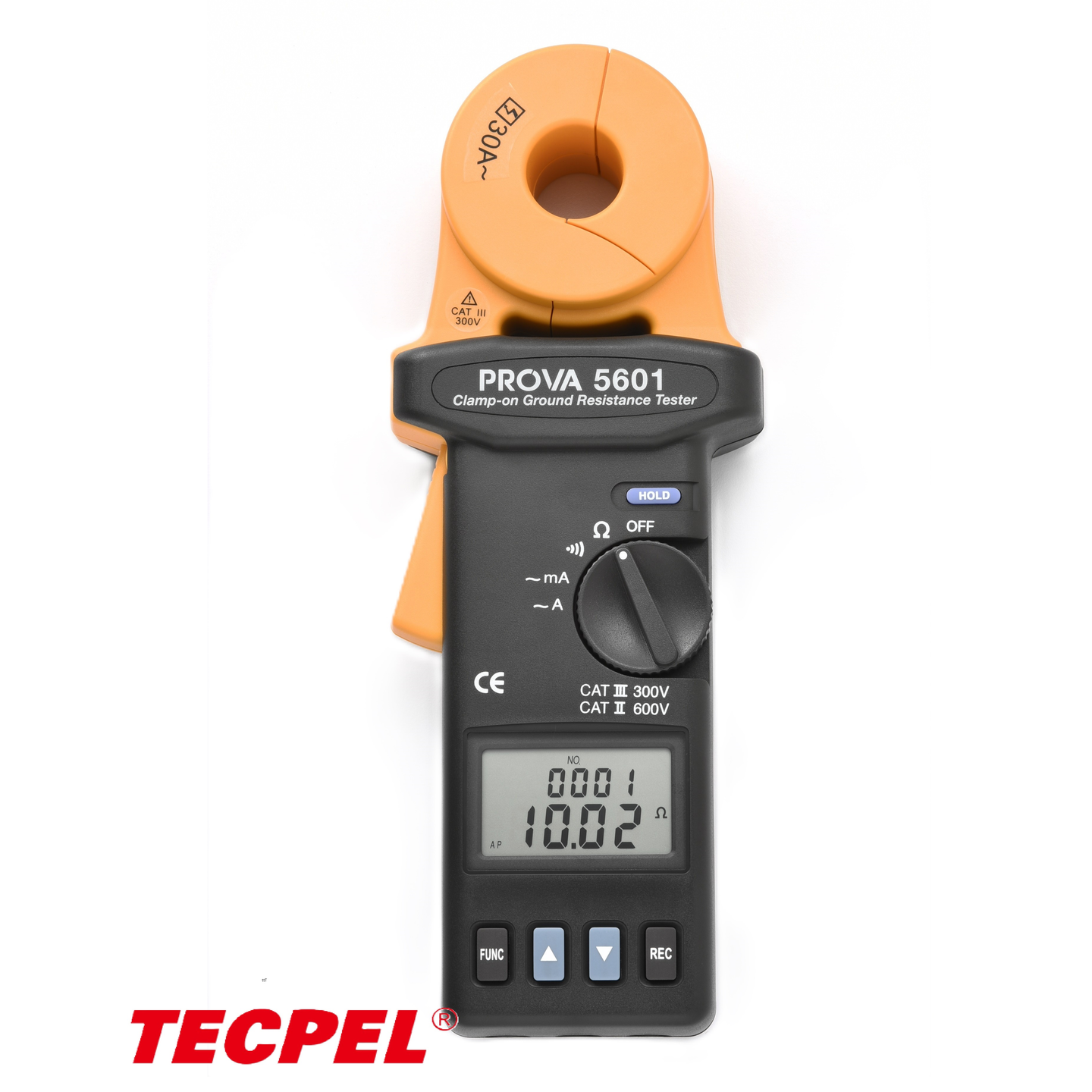

Clamp Ground Resistance Tester
Brand
PROVA
|
Model
PROVA-5601
|
🇹🇼 Taiwan
The PROVA 5601 Clamp Ground Resistance Tester is designed for precise resistance measurement and can auto-range. It measures various ranges of ground resistance and is suitable for accurate RMS measurement at 50/60 Hz, with storage functionality.
Grounding applications:
■ Telecommunications
■ Power plant
■ Factories and facilities
■Cable TV system
■ Mobile phone system
■ Gas stations and oil tanks
Out of Stock
Views: 1
Description
The PROVA 5601 is a clamp ground resistance tester suitable for various industrial and environmental tests, featuring high precision, multifunctionality, and automatic range switching.
■ Non-contact ground resistance measurement
■ No auxiliary electrode needed
■ Ground resistance measurement: 0.025Ω ~ 1500Ω
■ Leakage current measurement: 0.3mA ~ 30A, True RMS
■ Jaw diameter: 23mm
■ Programmable High and Low alarm
■ Data logging capacity: 116 records
■ Programmable Data Logging: data logging interval 1 to 255 sec.
■ Auto-power-off function
Grounding Application:
■ Telecommunication
■ Electrical Power Plant
■ Factory and Facility
■ Cable TV System
■ Cellular Phone System
■ Gas Station & Tank
Specifications
- Display4-digit 9999 count LCD
- Upper and Lower Limit Setting RangeUpper limit 0 - 1510Ω 1Ω / Lower limit 0 - 1510Ω 1Ω
- Accuracy± 0.5%
- Memory Capacity116 entries
- Recording Time1 to 255 seconds
- Display Digits4 digits
- Earth Resistance0.025Ω ~ 1500Ω
- Measuring Range0.3mA ~ 30A, True RMS
- Jaw Opening23mm
- High and Low AlarmProgrammable
- Data Logging1 to 255 seconds
- Auto Power OffYes
- Power Supply9V IEC 6 LR61 (Alkaline battery)
- Battery Life3000 measurements
- Operating Temperature0°C to 50°C (14°F to 122°F)
- Storage Temperature-20°C to 60°C (-4°F to 122°F)
- Dimensions257mm (L) x 100mm (W) x 47mm (H)
- Weight640g
Features
- ContinuityNo
- BacklightYes
- Data HoldYes
- Max/MinNo
- Data TransmissionNo
- Auto RangeYes
- Battery Life3000 measurements
- ResistanceYes
- No Auxiliary Electrode NeededYes
- True RMSYes
- Programmable High and Low AlarmYes
- Auto Power OffYes
- Data LoggingYes
Attributes
- Jaw Inner DiameterApproximately 23 mm (0.9”)
- Jaw Maximum OpeningApproximately 27 mm (1.06”)
- Dimensions257mm (L) x 100mm (W) x 47mm (H) / 10.1" (L) x 3.9" (W) x 1.9" (H)
- Battery Type9V Alkaline (IEC 6 LR61)
- Overload ProtectionOL
- Current Consumption40mA
- Sampling Time0.5 seconds
- Operating TemperatureTemperature 0 ~ 50°C, Humidity < 85%RH
- Operating Humidity<85% relative humidity
- Working AltitudeUp to 2000M
- Storage TemperatureTemperature -20 ~ 60°C, Humidity < 75%RH
- Weight640g / 1.4 lbs
- AccessoryStandard resistance test loop board x 1, 9V battery (included) x 1, User manual x 1, Carrying bag x 1
- Elevation LimitationUp to 2000 meters
- Power Supply9V battery (installed)
