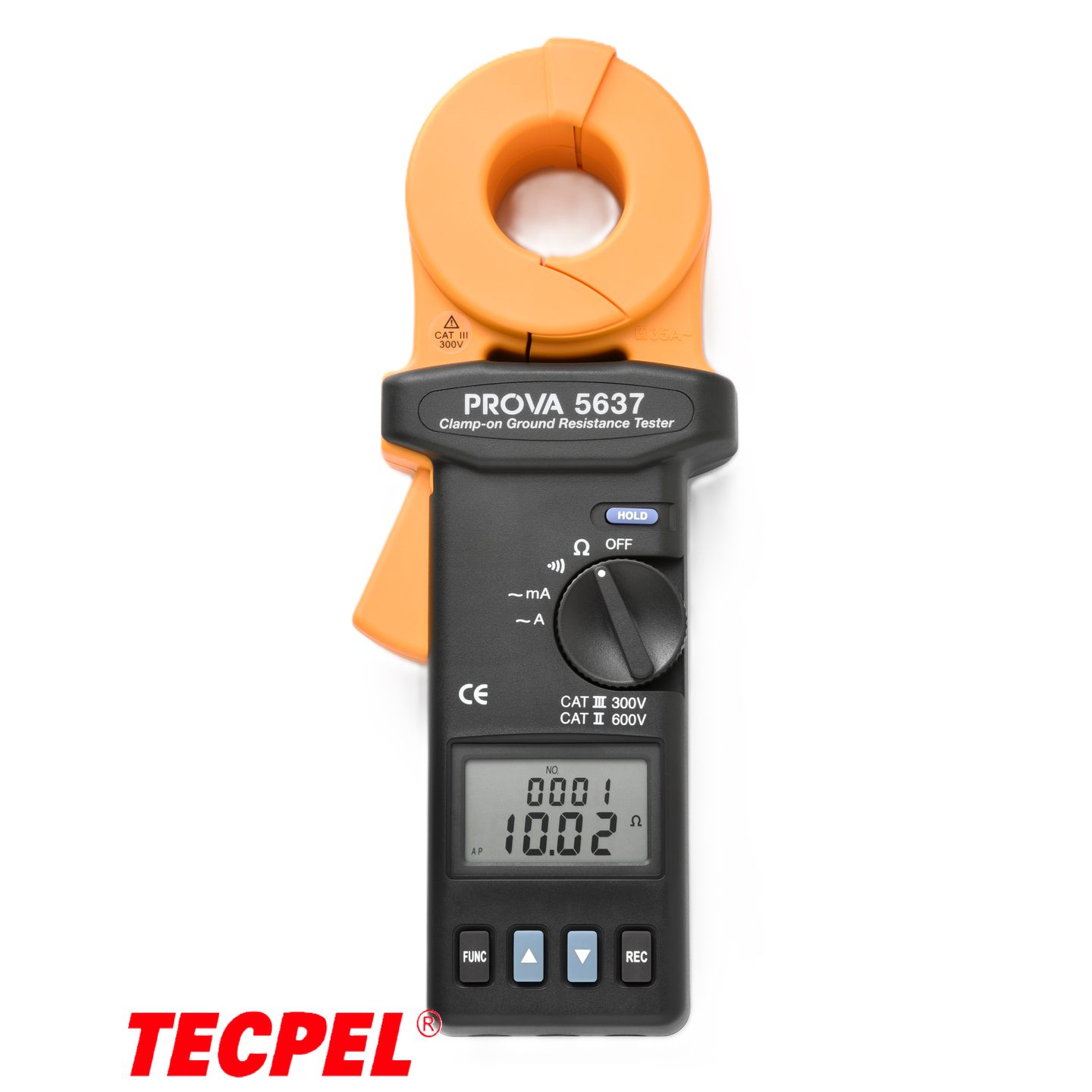

Clamp-on Ground Resistance Tester
Brand
PROVA
|
Model
PROVA-5637
|
🇹🇼 Taiwan
The PROVA-5637 Clamp-on Ground Resistance Tester offers high precision measurement functions suitable for a variety of industrial applications. It features automatic range switching, multifunctional measurement capabilities, and can measure ground resistance, current, and leakage current. The device also provides a large LCD screen, auto power-off functionality, and robust overload protection.
Price
NT$ 29,800
Out of Stock
Views: 1
Description
The PROVA-5637 Clamp-on Ground Resistance Tester is a high-accuracy measurement instrument capable of measuring a wide range of resistance and current values. Its automatic range switching and multifunctional measuring capabilities make it indispensable for industrial applications.
Ground resistance measurement in a modern urban environment.
Solar panel installation.
Charging Tsubaki (electric vehicle).
Non-contact measurement of ground resistance.No auxiliary electrode rods or wire cutting is required.Measurable resistance: 0.025 – 1500Ω.Ground wire leakage current measurement range: 0.3mA – 35A.Hook diameter: 35mm.The current measurement is the True Root Mean Square (TRMS).Programmable upper and lower limit warnings: automatic beeping sounds occur when upper and lower limits are exceeded.The time can be set for automatic recording (1-255 seconds).116 groups of memory capacity.Has an automatic shutdown function.
Specifications
- Earth Resistance0.025Ω - 1500Ω
- Measuring Range0.200A - 35A
- Frequency3.333KHz
- Memory Capacity116 records
- Recording Interval1 to 255 seconds
- Jaw Inner Diameter35 mm
- Jaw Maximum Opening38 mm
- Battery Type9V Alkaline (IEC 6 LR61)
- Battery Life3000 measurements
- Display4-digit, 9999 Count, LCD
- Operating Temperature0C ~ 50C (14F ~ 122 F)
- Operating Humidity<85% RH
- Storage Temperature<75% RH
- Dimensions276mm (L) x 100mm (W) x 47mm (H)
- Weight750g / 1.65 lbs
- AccessoryStandard Resistance Loop Plate x 1, 9V Alkaline Battery (included) x 1, User Manual x 1, Carrying Case x 1
Features
- Auto Rangeyes
- Auto Power Off4-6 minutes
- Overload Protection100A (continuous); 200A (5 seconds)
- Display2 times/second
- Sampling Rate20 times/second
- Temperature Coefficient0.1% x (specific spec)/℃ (＜18℃ or ＞28℃)
Attributes
- Operating TemperatureTemperature 0 ~ 50°C Humidity <85% RH non-condensing
- Storage TemperatureTemperature -20 ~ 60°C Humidity <75% RH non-condensing
- Operating Altitude<2,000 meters
- Display4-digit, 9999 Count, LCD
- Power Supply9V Alkaline Battery
- AccessoryStandard Resistance Loop Plate, 9V Alkaline Battery, User Manual, Carrying Case
