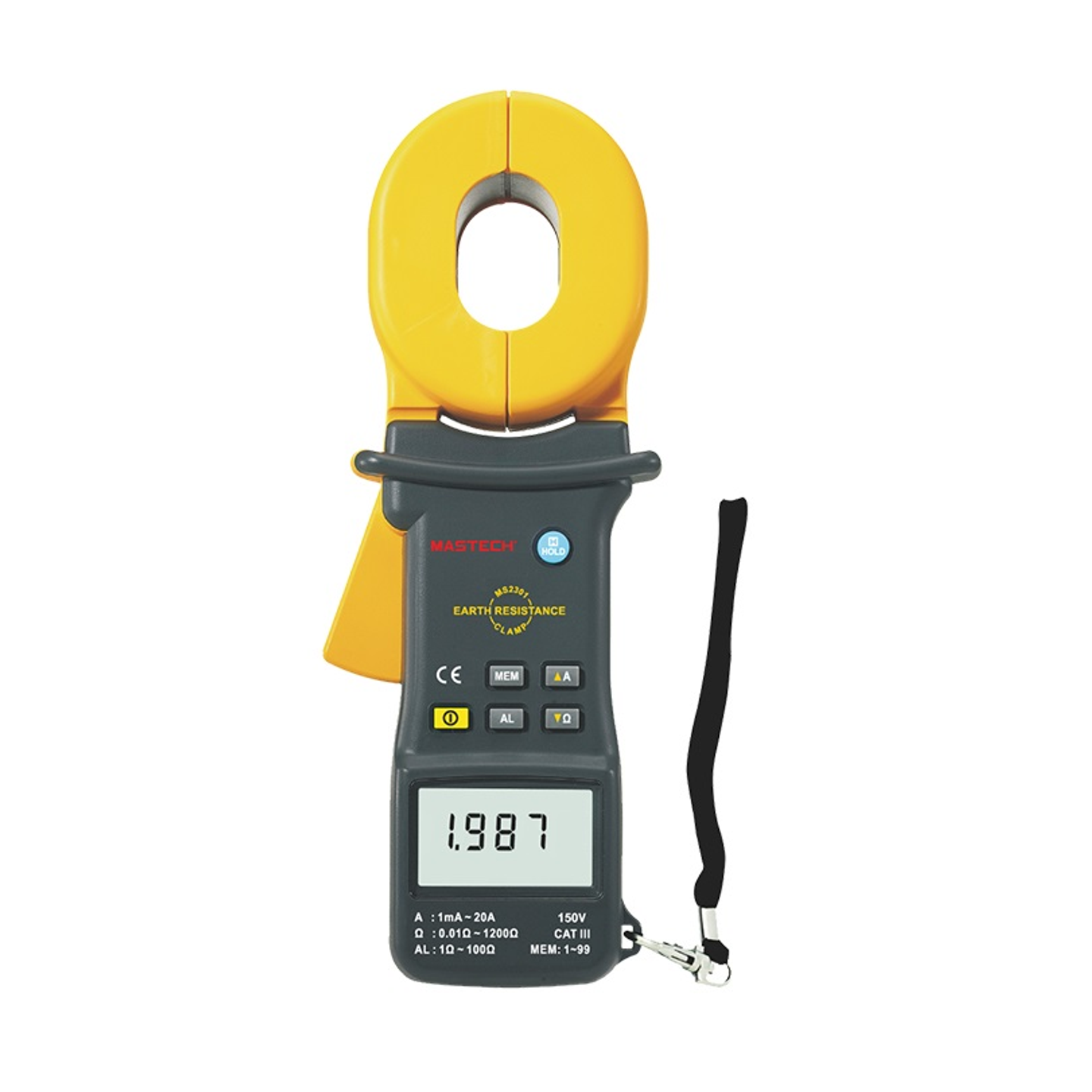

Mastech MS2301 接地電阻測試儀

Brand MASTECH | Model MS2301 | 🇨🇳 China
• Supports 9999 display counts • Opening size 45mm x 32mm • Records 99 sets of data for review • Alarm threshold settings range from 1 to 100Ω • Low battery indication • Buzzer alert function • Data hold function • Portable design for easy transport • High-precision measurement for accuracy • Long-lasting battery for extended use
Out of Stock
Views: 1

Description

The Mastech MS2301 Earth Resistance Tester is a professional-grade measuring tool designed for efficient and accurate ground resistance measurements. This device supports up to 9999 measurement records, offers manual and automatic range selection, and features alarm value settings, making it suitable for various resistance measurement needs. Its robust design and multiple functions make the MS2301 an ideal choice for electrical engineers and technicians.

Specifications

  • 顯示位數9999 讀數
  • 外觀尺寸276mm x 104mm x 54mm/10.8"x4.33"x2.1"
  • 量測範圍0.01Ω~1200Ω
  • 精確度±(2.5%+1mA) 至 ±(2.5%+0.05A)
  • 測量電流100mA 至 20A
  • 電源1x9V 鹼性電池
  • 重量1050g/2.31lb
  • 安全等級CAT III 150V
  • 認證CE / ETL / RoHS

Features

  • 資料記錄支援99組
  • 自動與手動範圍選擇
  • 警報功能1~100Ω
  • 低電量指示
  • 蜂鳴器提示
  • 數值保持
  • 便攜性
  • 安全等級
  • 高精度測量
  • 長效電池

Attributes

  • DimensionsNot provided
  • WeightNot provided
  • ColorStandard Industrial Gray
  • MaterialHigh-Impact Plastic Casing
  • Screen TypeDigital Display
  • Battery ReplacementEasy-to-Remove Battery Cover
