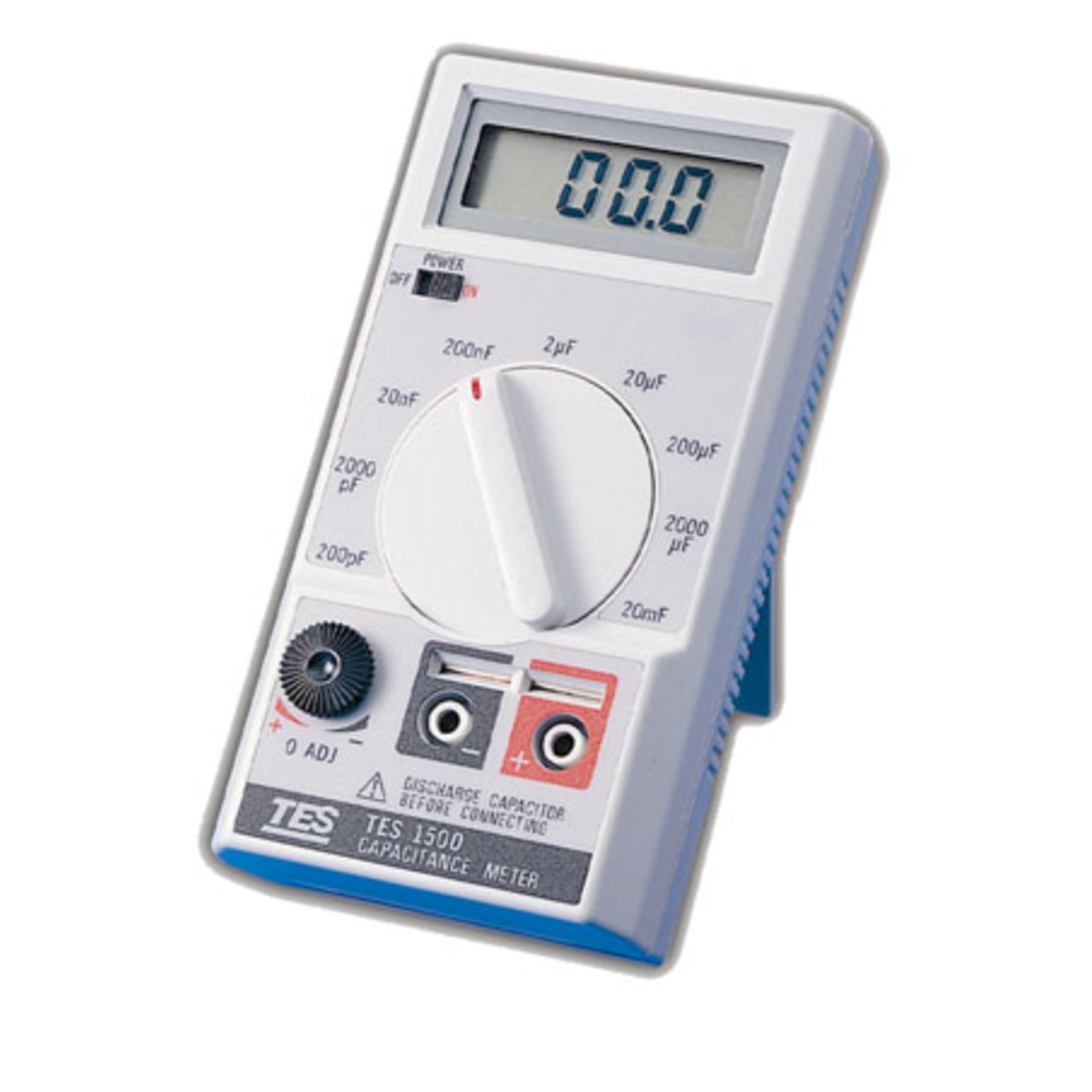

Digital Capacitance Meter
Brand
TES
|
Model
TES-1500
|
🇹🇼 Taiwan
Features of the TES-1500 Digital Capacitance Meter include:
- High precision: ±0.5% accuracy
- Measurement range: 0.1pF to 20,000uF
- Sampling rate: 2 times per second
- Multiple range selection: 9 ranges
- Suitable for various industrial applications
Price
NT$ 1,260
Out of Stock
Views: 570
Description
The TES-1500 Digital Capacitance Meter provides professional and accurate capacitance measurements suitable for various industrial applications. With a measurement range from 0.1pF to 20,000uF and an accuracy of up to 0.5%, it is ideal for professional engineers and technicians. This instrument features multiple test frequencies to meet different testing needs, ensuring reliability and accuracy in various conditions.
Specifications
- Measuring Range0.1pF ~ 20000uF
- Accuracy±0.5%
- Rotary Switch9
- Fuse0.25A/250V
- Frequency800Hz to 8Hz
- Overload Protection0.25A/250V
- Sampling Rate2 /s
- Power Supply9V, 006PorIEC6F22orNEDA1604
- Dimensions135x72x33 mm
- Weightapprox.207 g
Features
- SpecificationYes
- Sampling Rate2 /s
- Zero Adjustmentapprox. ±20PF
- Specification 9
- Rotary SwitchYes
Attributes
- Dimensions135(L) x 72(W) x 33(H) mm
- WeightApprox. 207g (including battery)
- Operating/Storage Temperature and Humidity0°C ~ 40°C <80% RH / -10°C ~ 60°C <70% RH
- Power SupplySingle 9V battery
- Operating Temperature0℃ ~ 40℃ <80% RH
- Storage Temperature-10℃ ~ 60℃ <70% RH
- AccessoriesTest leads, instruction manual, battery, and spare fuse
