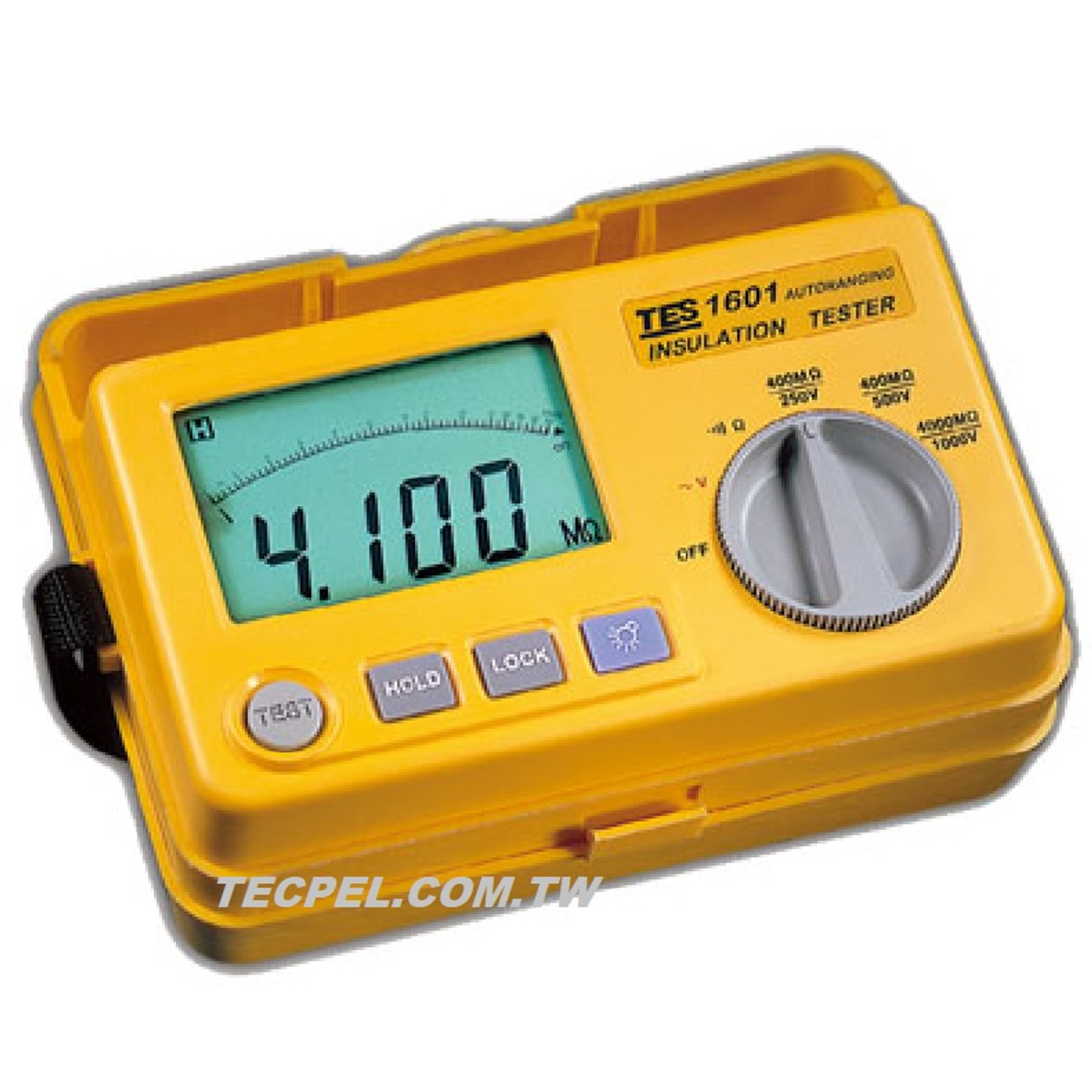

Digital Auto-ranging Insulation Tester
Brand
TES
|
Model
TES-1601
|
🇹🇼 Taiwan
Complies with IEC61557 international standards, suitable for high-resistance insulation testing.
Features high accuracy measurement capabilities and an easy-to-use interface.
Equipped with auto-ranging function and analog bar graph display.
Load voltage of 1mA provides stable testing current.
Designed with safety in mind, featuring overload protection and low battery detection.
Price
NT$ 6,700
Out of Stock
Views: 791
Description
The TES-1601 Digital Auto-ranging Insulation Tester is a high-performance measuring tool designed for insulation testing in various industrial fields. It integrates precise measurement with user convenience, featuring a 3-3/4 digit LCD display and automatic ranging for Megaohm high resistance. The device can conduct insulation tests with a load voltage of 1mA current and has a 200mA short circuit current function. Designed to meet international standards IEC61557, it ensures accuracy and safety in testing.
Specifications
- Resistance40Ω 1%±30, max. 12.8V
- AC Voltage600V 1.5% ±3 digit (40Hz~500Hz)
- Meg4MΩ to 4000MΩ 3%±5 at 250V, 500V, 1000V
- Measuring Range4MΩ, 40MΩ, 400MΩ, 4000MΩ / 250V, 500V, 1000V
- Test Current1mA 250KΩ / ≦1.5mA
- max.12.8V
- Overload Protection600Vrms
Features
- Display80mm x 50mm typeLCDdisplay
- Auto Rangemega
- Specification50div
- Insulation Resistance1mA
- Short Circuit Current200mA
- Overload Protectionmax., LCD display“ OL ”
- Safety Rating, display
- Sampling Rates2.5 display, 10 display
- Power Supply1.5V AA × 8
- Accessories,,
Attributes
- Dimensions190(L)x140(W)x77(H)mm
- WeightApprox. 900g (including batteries)
- Power Supply8x 1.5V AA batteries
- Operating Temperature0℃ to 40℃, RH < 80%
- Storage Temperature-10℃ to 60℃
