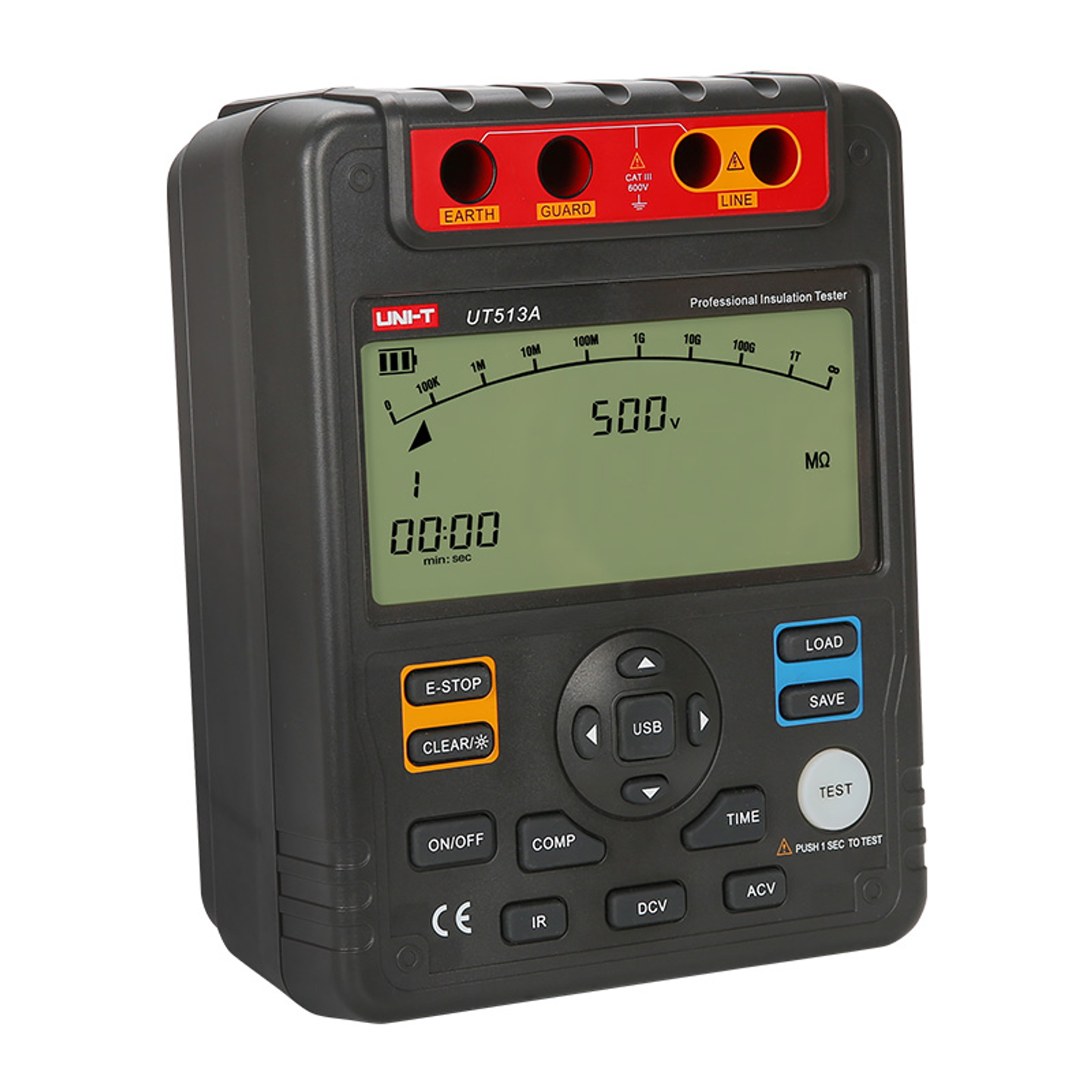

Insulation Resistance Tester

Brand UNI-T | Model UT513A | 🇨🇳 China
Insulation Resistance Tester
UT513A - 1
UT513A - 2
UT513A - 3
UT513A - 4
The UT513A offers multiple test voltage options, catering to a variety of applications and measurement needs. It is equipped with data storage and auto shutdown features, and can measure Polarization Index (PI) and Dielectric Absorption Ratio (DAR).
Out of Stock
Views: 1

Description

The UNI-T UT511 is a testing instrument designed for measuring insulation resistance of large transformers, generators, and high-voltage equipment. It offers multiple testing voltage options and a wide measurement range, making it ideal for professional electricians. UT-511 High Insulation Resistance Meter 0.1MΩ ~ 10 G Ω, 100, 250, 500, 1000V UT-512 High Insulation Resistance Meter 0.5MΩ ~ 100 G Ω, 500, 1000, 1500, 2500V UT-513A high insulation resistance meter 0.5MΩ ~ 1000 G Ω, 500, 1000, 2500, 5000V

Specifications

  • Test Voltage Options100V, 250V, 500V, 1000V
  • Insulation Resistance0.1MΩ to 10GΩ ±(3%+5)
  • DC Voltageup to 1000V ±(2%+3)
  • AC Voltageup to 750V (50/60Hz) ±(2%+3)
  • Low Resistance Measurement0.1Ω to 999.9Ω ±(1%+3)
  • Short Circuit Currentless than 2mA

Features

  • Auto RangeYes
  • Data Logging18 sets of measurements
  • Auto Power OffYes
  • PI and DAR MeasurementYes
  • Test Time Settingup to 30 minutes
  • Comparison FunctionYes
  • BacklightYes
  • Overrange and High/Low Voltage WarningYes
  • Low Battery IndicatorYes
  • Max Display9999 digits

Attributes

  • Power Supply8 x 1.5V batteries (R14)
  • Dimensions123 x 58 mm
  • Body ColorIron Gray
  • WeightApproximately 2 kg
  • Body Dimensions202 x 155 x 94 mm
  • AccessoryPower Adapter (extra purchase required)
