30V/5A DC power supply
Brand
TECPEL
|
Model
TPS-1305
|
🇨🇳 China
• Single-channel power supply with output up to 30V/5A
• Compact and portable design
• Equipped with current limiting protection
• Features overload, short-circuit, and over-temperature protection
• Dual-screen display shows voltage and current simultaneously
• Selectable constant voltage and current limiting modes
Price
NT$ 3,465
Out of Stock
Views: 723
Description
The TPS-1305 30V/5A DC power supply offers a compact size coupled with high power density, providing an excellent solution for power needs. This device features a control knob for both coarse and fine adjustments, catering to diverse output requirements. Its single-channel design makes it suitable for various applications, easily handling tasks in laboratory testing or electronic product development.
Specifications
- Output Range0~30V / 0~5A
- InterfaceIndependent output
- Constant Voltage Regulation≤0.01%＋3mV
- Voltage Load Regulation Rate≦0.01%＋2mV
- Output Voltage≤1mArms
- Current Limit Regulation Rate≦0.2%＋3mA
- Current Load Regulation Rate≤0.1%＋3mA
Features
- ChannelsSingle channel
- Display ModeDual display showing voltage and current simultaneously
- Operating ModeConstant voltage and current limiting modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionOverload and reverse polarity protection
- Alarm FunctionCC and CV indicators stay lit
Attributes
- Operating Temperature0~40 °C / Humidity below 70%RH (non-condensing)
- Storage Temperature-10~60 °C / Humidity below 80%RH (non-condensing)
- Altitude LimitBelow 1,000 meters
- Display3 1/2-digit 0.39-inch LED display (dual display)

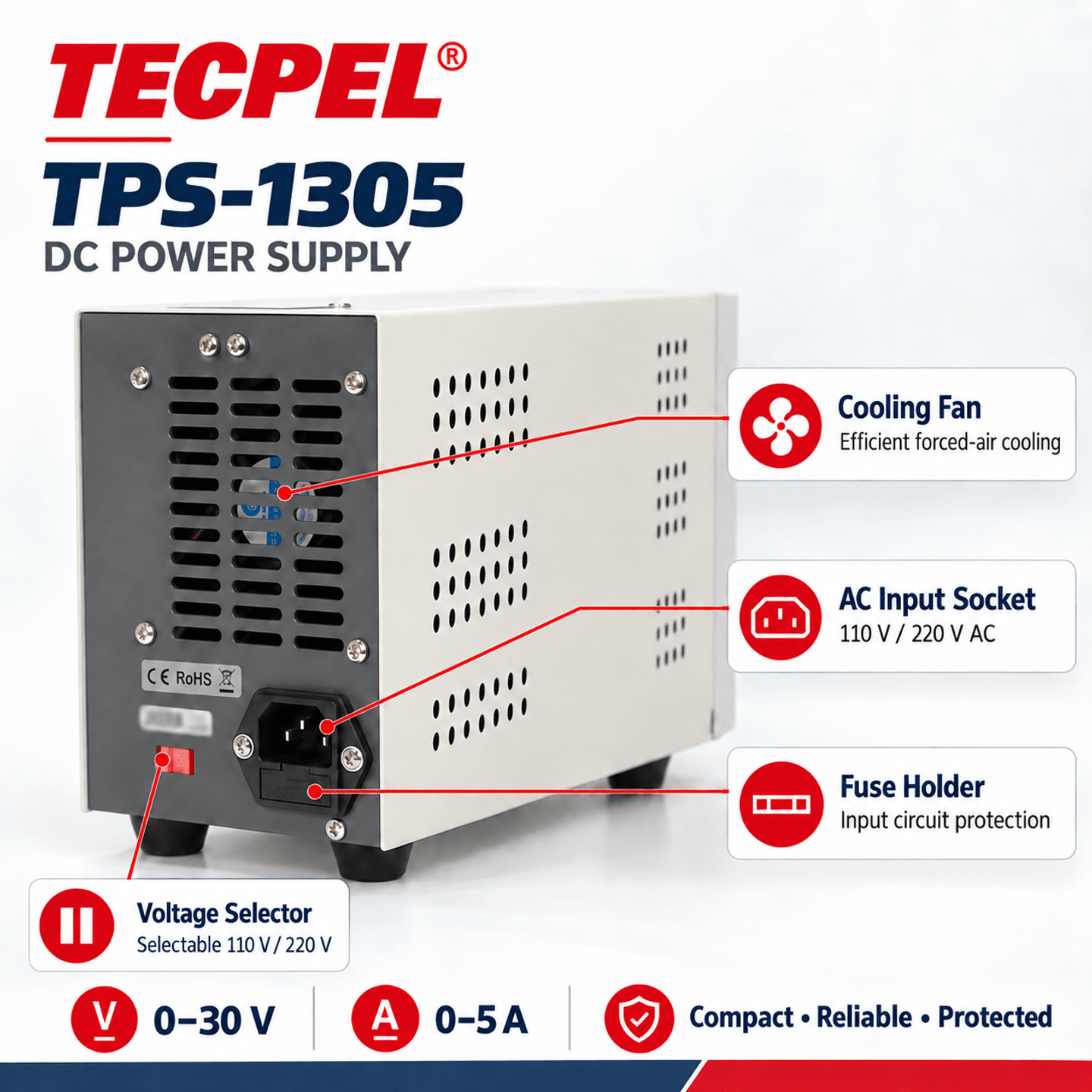

- Power SupplyAC 110~220V 50Hz/60Hz
- Dimensions25(D)×11(W)×16(H)cm
- Weight3kg
- AccessoriesPower cord, test leads
